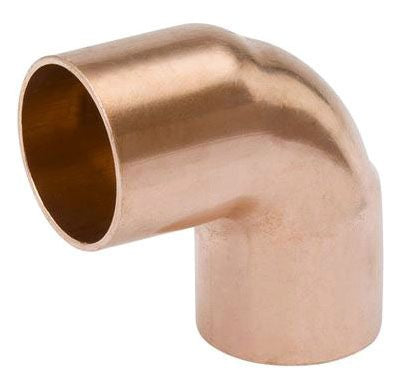

Mueller Streamline W02047 1-1/8 Inch Cop 90 Elbow

Product Description

The Mueller Streamline W02047 is a copper elbow fitting for potable water systems. This fitting is made from UNS C12200 copper and is designed for reliable connections. The female soldered ends ensure a strong joint for water supply. It is suitable for high pressure, rated for seven hundred PSI at two hundred fifty degrees Fahrenheit. This product meets UL, ASME, and NSF standards for safety and quality.

• Made in the USA
• 90-degree angle connection
• Female soldered x female soldered end connections

Product Highlights

Product Information

Standard Information

• Brand: Mueller Streamline
• Catalog Number: W02047

Technical Specifications

• Angle: 90 degrees
• Applicable Standard: UL, ASME B1.20.1/B16.15/B16.18/B16.22/B16.24/B16.50, NSF 61G, MSS SP104
• Application: Potable water supply
• End Connection: Female soldered x female soldered
• Material: UNS C12200 copper
• Pressure Rating: 700 PSI at 250 degrees Fahrenheit
• Process: Wrot
• Size A: 1-1/8 inches
• Size B: 1-1/8 inches
• Type: Short radius, straight
