Mueller Streamline W01940NL Companion Flange Class 150 4 in

Product Description

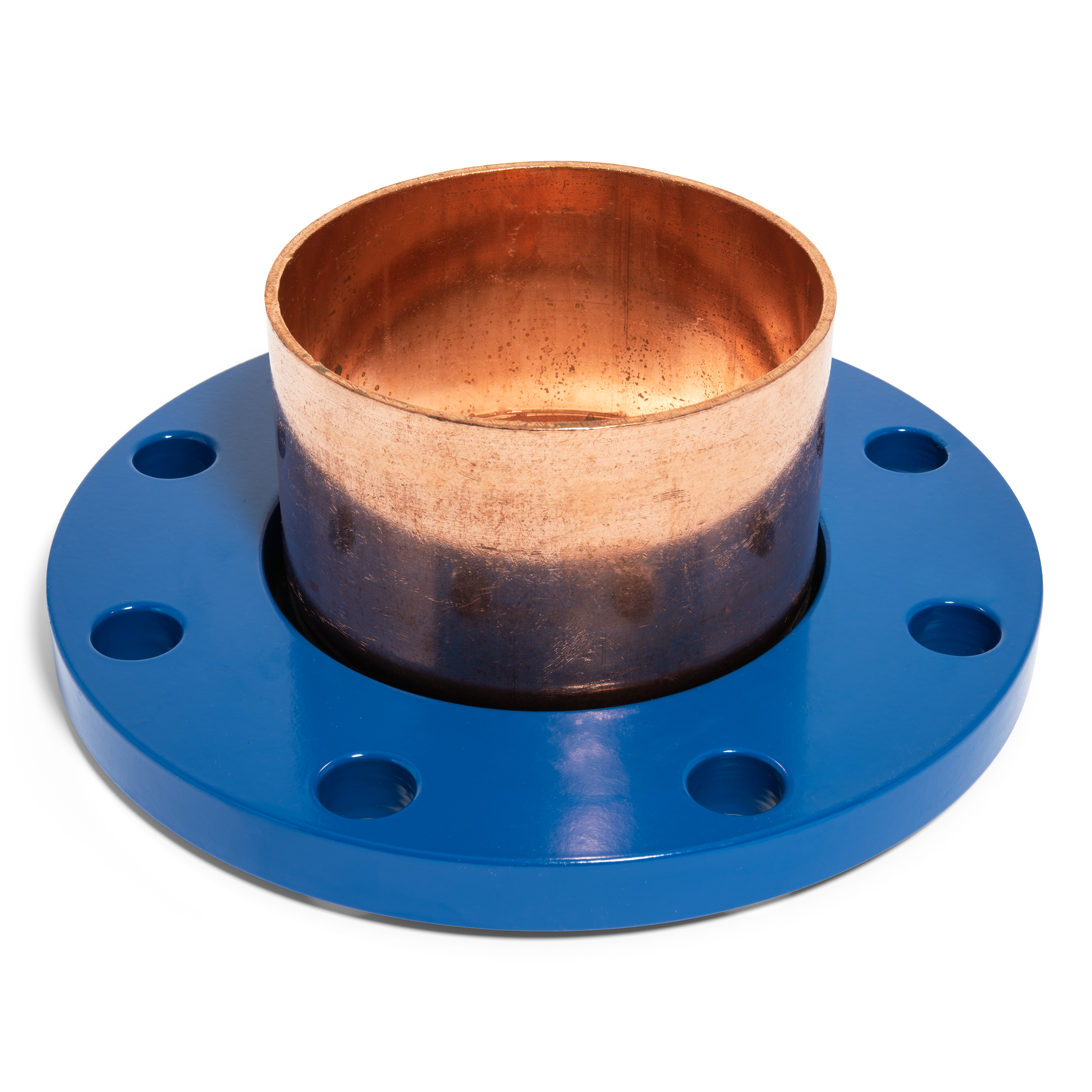

The Mueller Streamline W01940NL is a two-piece companion flange designed for easy installation. Made from wrot copper, this flange features a female solder cup and flanged connection. It is suitable for various plumbing applications that require durable and reliable fittings.

• Two-piece construction for quick installation
• Provides for soldering and brazing
• 100% electrolysis protection with EPDM insulator

Product Highlights

The companion flange is ideal for joining two piping systems. It is lead-free and meets several industry standards.

Product Information

Standard Information

• Brand: Mueller Streamline
• Manufacturer: Mueller Industries

Technical Specifications

• Type: 2-Piece
• Model: WF-150
• Material: Wrot Copper
• Connection Size: 4 in
• Connection Type: Female Solder Cup x Flanged
• Pressure Class: Class 150
• Temperature Rating: -66 to 272 degrees F
• Outside Diameter: 9 in
• Thickness: 0.71 in
• Bolt Circle Diameter: 7-1/2 in
• Bolt Hole Diameter: 3/4 in
• Length Through Hub: 2-31/32 in
• Hub Diameter: 4.129 in
• Finish: Powder Coated
• Standards/Certifications: ASME B16.22, ASME B16.5, NSF/ANSI 61G certified
