Mueller Streamline W01579 adapter fitting 1-1/2 inch

Product Description

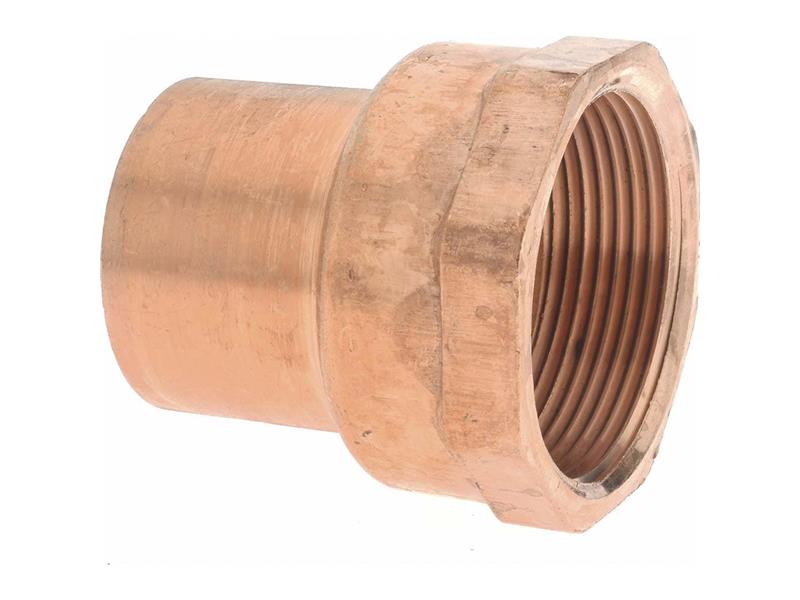

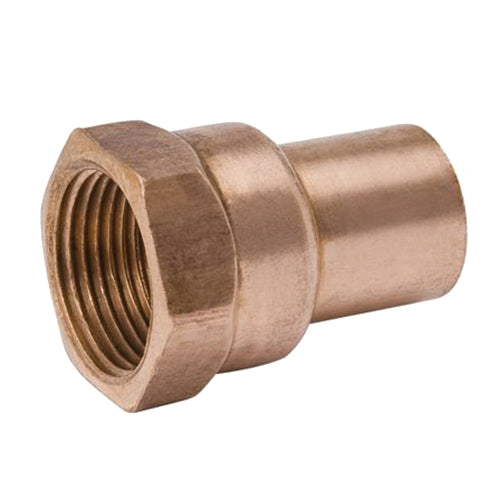

The MUELLER STREAMLINE W01579 adapter fitting is a straight type fitting with Size A and Size B both at 1-1/2 inches. Constructed from UNS CI2200 copper with material specification ASTM B75/B88/B280 and wrot process. Suitable for potable water supply systems and HVACR applications. It features a male soldered x female threaded end connection and is lead-free.

• Lead-Free
• End Connection: Male Soldered x Female Threaded
• Pressure Rating: 700 PSI

Product Highlights

This copper adapter fitting is ideal for plumbing and HVACR applications requiring a secure and reliable connection.

Product Information

Standard Information

• Brand: MUELLER STREAMLINE
• Manufacturer Part Number: W01579

Technical Specifications

• Type: Straight
• Size A: 1-1/2 Inch
• Size B: 1-1/2 Inch
• End Connection: Male Soldered x Female Threaded
• Material: Copper
• Material Specification: ASTM B75/B88/B280
• Process: Wrot
• Pressure Rating: 700 PSI
• Temperature Rating: 250 Deg F
• Application: Potable Water Supply System, HVACR
• Applicable Standard: UL (Canada and US), ASME B16.15/18/22/24/50/B1.20.1, MSS SPI04, NSF 61G
• Lead-Free: Lead-Free
• Outer Diameter: 1-5/8 Inch
• Catalog Number: W01579
• Manufacturer Name: Mueller Streamline
• Manufacturer Part Number: W01579
• Series/Model: WC-405
• UNSPSC Code: 40183109
• UPC: 685768207818
• End Type: FTG - Fitting (Male Solder)
• End Size: 1 1/2
• Second End Type: FPT - Female Pipe Tapered Thread, NPT
• Second End Size: 1 1/2
• Standards: NSF 61G, ASME B16.15, ASME B16.18, ASME B16.22, ASME B16.24, ASME B16.50, ASME B1.20.1
• Overall Length: 2.47 in
• Overall Height: 2.25 in
• Overall Width: 2.25 in
• Style: WC-405
• Mueller Description 1: 1-1/2 FTG X FPT ADAPTER
• Mueller Description 2: 1-5/8 FTG X 1-1/2 FPT ADAPTER
• Application Type: Pressure
• Domestic/Import: Domestic
• End Style: Fitting x FNPT
• Fitting/Connector Type: Adapter
• Nominal Size: 1-1/2 In
• Operating Temperature: N/A
• Operating Pressure: N/A
