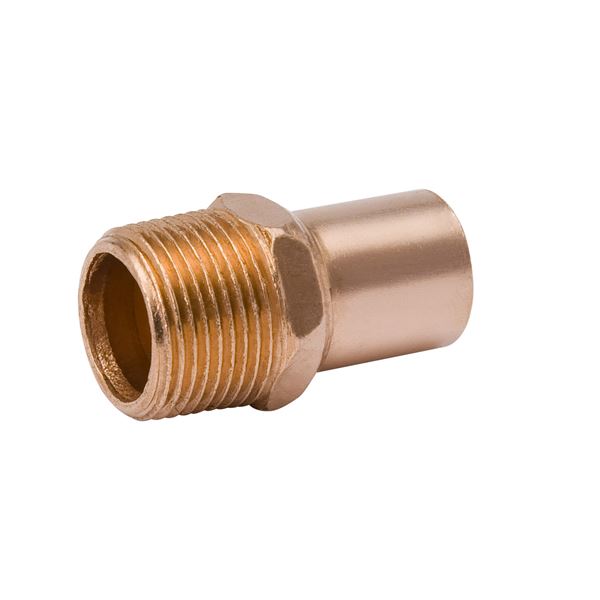

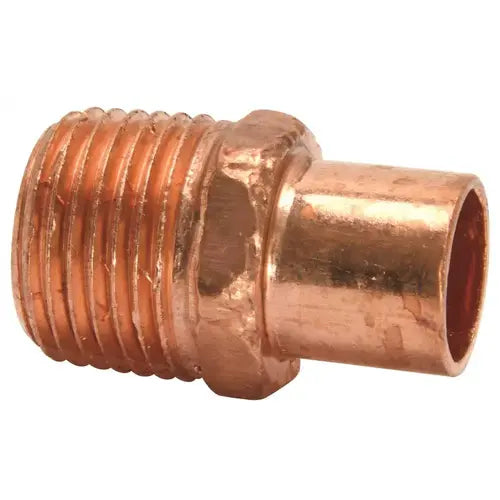

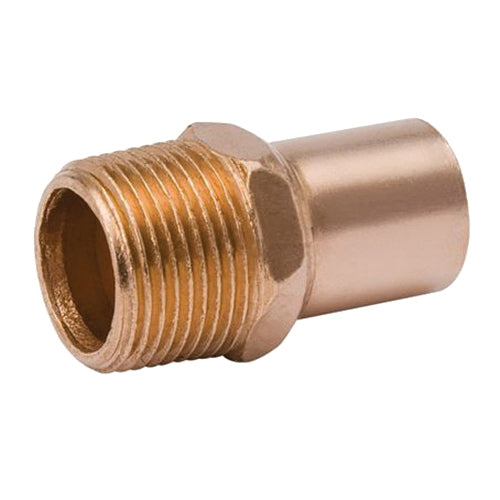

Mueller Streamline W01446 Adapter Fitting 3/4 Inch

Product Description

The MUELLER STREAMLINE W01446 adapter fitting is a straight type fitting with a size A of 3/4 inch and size B of 3/4 inch. Constructed from UNS CI2200 copper with a wrot process, it is designed for potable water supply and HVACR applications. It has a pressure rating of 700 PSI and a temperature rating of 250 Deg F.

• Made from UNS CI2200 copper
• Features male soldered x male threaded end connections
• Suitable for potable water and HVACR systems

Product Highlights

This lead-free adapter fitting meets ASME standards and is ideal for plumbing and HVACR applications.

Product Information

Standard Information

• Brand: MUELLER STREAMLINE
• Manufacturer Part Number: W01446
• Country of Origin: USA

Technical Specifications

• Additional Information: Lead-Free; Outer Diameter 7/8 Inch
• Applicable Standard: UL (Canada and US), ASME B16.15/18/22/24/50/B1.20.1, MSS SPI04, NSF 61G
• Application: Potable Water Supply System, HVACR
• End Connection: FTG x M
• Material: UNS CI2200 Copper
• Material Specification: ASTM B75/B88/B280
• Pressure Rating: 700 PSI
• Process: Wrot
• Size A: 3/4 Inch
• Size B: 3/4 Inch
• Temperature Rating: 250 Deg F
• Type: Straight
• Outer Diameter: 7/8 Inch
• End Type: FTG - Fitting (Male Solder)
• End Size: 3/4 in
• Second End Type: MPT - Male Pipe Tapered Thread (NPT)
• Second End Size: 3/4 in
• Standards: NSF 61G, ASME B16.15, ASME B16.18, ASME B16.22, ASME B16.24, ASME B16.50, ASME B1.20.1
• Overall Length: 1.92 in
• Overall Height: 1.14 in
• Overall Width: 1.14 in
• Style: WC-404
• Fitting/Connector Type: Adapter
• Nominal Size: 3/4 In
• Fitting Size: 3/4 in
• Fitting Type: Adapter
• Features: Lead Free
