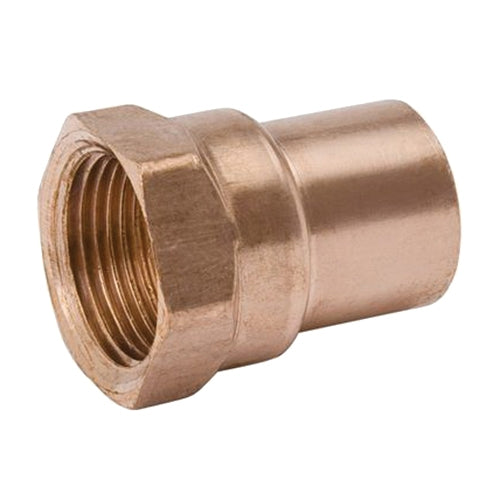

Mueller Streamline W01265 Adapter Fitting 1 Inch x 1/2 Inch

Product Description

The MUELLER STREAMLINE W01265 adapter fitting is a reducing, female adapter with a Size A of 1 inch and Size B of 1/2 inch. Constructed from UNS CI2200 copper with a wrot process, it features a female soldered x female threaded end connection. Suitable for potable water supply systems and HVACR applications, it meets standards such as ASME B16.15 and NSF 61G.

• Lead-Free
• End connection is female soldered x female threaded
• Temperature rating of 250 Deg F

Product Highlights

This copper adapter fitting is ideal for reducing connections in plumbing and HVACR systems, ensuring a secure and compliant installation.

Product Information

Standard Information

• Brand: MUELLER STREAMLINE
• Manufacturer Part Number: W01265
• Country of Origin: Domestic

Technical Specifications

• Type: Reducing, Female
• Size A: 1 Inch
• Size B: 1/2 Inch
• End Connection: Female Soldered x Female Threaded
• Material: UNS CI2200 Copper
• Material Specification: ASTM B75/B88/B280
• Process: Wrot
• Pressure Rating: 700 PSI
• Temperature Rating: 250 Deg F
• Application: Potable Water Supply System, HVACR
• Applicable Standard: ASME B16.15/18/22/24/50/B1.20.1, MSS SPI04, NSF 61G
• Outer Diameter: 1-1/8 Inch
• Additional Information: Lead-Free; Outer Diameter 1-1/8 Inch
• Catalog Number: W01265
• Manufacturer Name: Mueller Streamline
• Manufacturer Part Number: W01265
• Series/Model: WC-402
• UNSPSC Code: 40183109
• UPC: 685768206972
• End Type: C - Cup (Female Solder)
• End Size: 1 in
• Second End Type: FPT - Female Pipe Tapered Thread, NPT
• Second End Size: 1/2 in
• Standards: NSF 61G, ASME B16.15, ASME B16.18, ASME B16.22, ASME B16.24, ASME B16.50, ASME B1.20.1
• Overall Length: 1.62 in
• Overall Height: 1.41 in
• Overall Width: 1.41 in
• Style: WC-402R
• Nominal Size: 1 x 1/2 In
• Application Type: Pressure
• Domestic/Import: Domestic
• End Style: C x FNPT
