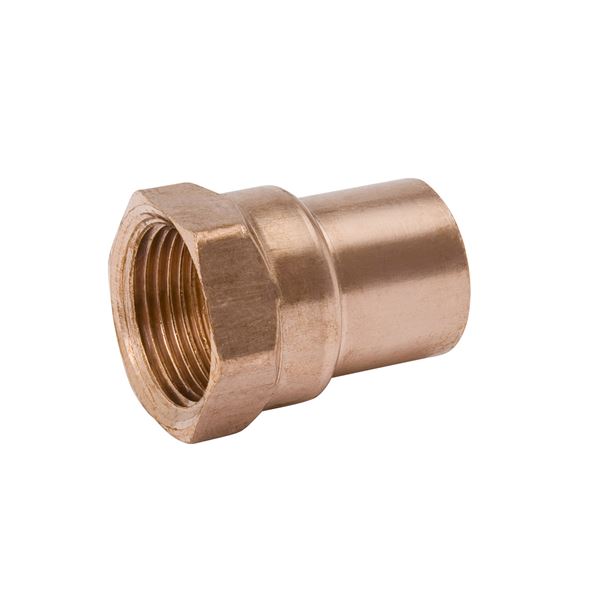

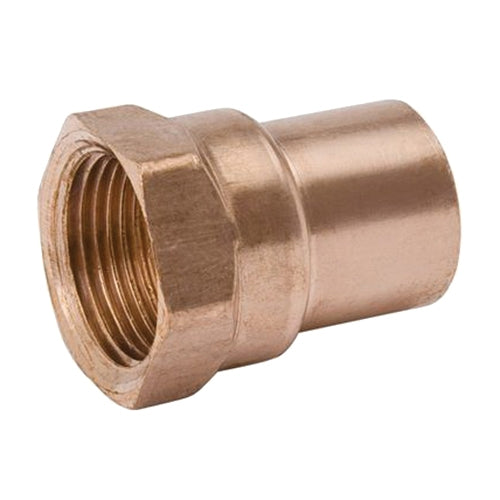

Mueller Streamline W01233 Adapter Fitting 1/2 x 1/4 Inch

Product Description

The MUELLER STREAMLINE W01233 adapter fitting is a reducing, female type with size A at 1/2 inch and size B at 1/4 inch. Constructed from UNS CI2200 copper with a wrot process, it features a female soldered x female threaded end connection. Suitable for potable water supply systems and HVACR applications.

• End connection: Female Soldered x Female Threaded
• Pressure rating of 700 PSI
• Temperature rating of 250 Deg F

Product Highlights

This lead-free adapter fitting meets UL (Canada and US), ASME, MSS SPI04, and NSF 61G standards.

Product Information

Standard Information

• Brand: MUELLER STREAMLINE
• Manufacturer Part Number: W01233

Technical Specifications

• Type: Reducing, Female
• Size A: 1/2 Inch
• Size B: 1/4 Inch
• End Connection: Female Soldered x Female Threaded
• Material: UNS CI2200 Copper
• Material Specification: ASTM B75
• Process: Wrot
• Pressure Rating: 700 PSI
• Temperature Rating: 250 Deg F
• Application: Potable Water Supply System, HVACR
• Applicable Standard: UL (Canada and US), ASME B16.15/18/22/24/50/B1.20.1, MSS SPI04, NSF 61G
• Lead-Free: Lead-Free
• Outer Diameter: 5/8 Inch
• Series: WC-402
• End Style: C x FNPT
• Nominal Size: 1/2 x 1/4 Inch
• Working Pressure: 700 psi
• Method of Manufacture: Seamless
• Industry Standards: ANSI/ASME B16.22, MSS SP104
• Application Type: Pressure
