Mueller Streamline W01215 Female Adapter 1/4 inches x 1/4 inches

Product Description

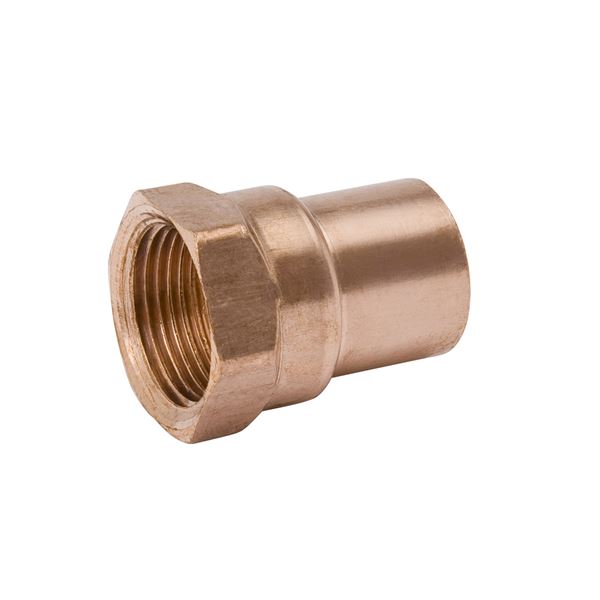

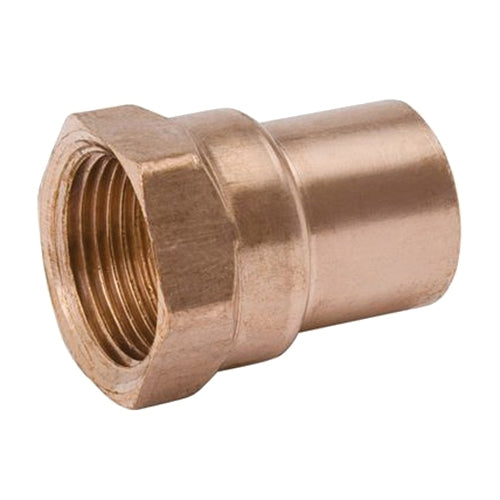

The MUELLER STREAMLINE W01215 is a lead-free, wrot, UNS C12200 copper female adapter with 1/4" connections. Designed for plumbing, mechanical, and potable water supply systems. It features a female soldered x female threaded end connection and meets NSF/ANSI 61G and ASME standards.

• Lead-Free
• Made in USA
• For use in above-ground potable water supply systems

Product Highlights

This copper female adapter is ideal for potable water systems, offering a secure and reliable connection.

Product Information

Standard Information

• Brand: MUELLER STREAMLINE
• Manufacturer Part Number: W01215

Technical Specifications

• Applicable Standard: NSF/ANSI 61G, ASME B16.15/B16.18/B16.22/B16.24/B16.29/B16.50/B1.20.1, MSS SP104
• Application: Plumbing, Mechanical, Potable Water Supply System
• End Connection: Female Soldered x Female Threaded
• Material: UNS C12200 Copper
• Process: Wrot
• Size A: 1/4 Inch
• Size B: 1/4 Inch
• Type: Female
• Manufacturer Part Number: W-01215
• Series/Model: WC-402
• End Type: C - Cup (Female Solder)
• End Size: 1/4 in
• Second End Type: FPT - Female Pipe Tapered Thread, NPT
• Second End Size: 1/4 in
• Standards: NSF 61G, ASME B16.15, ASME B16.18, ASME B16.22, ASME B16.24, ASME B16.50, ASME B1.20.1
• Overall Length: 0.93 in
• Overall Height: 0.77 in
• Overall Width: 0.77 in
• Nominal Size: 1/4 x 1/4 inch
• Connection Type: Sweat x FIP
• Pressure Rating: 700 psi
