Mueller Streamline W01207 Adapter Fitting 1/8 Inch

Product Description

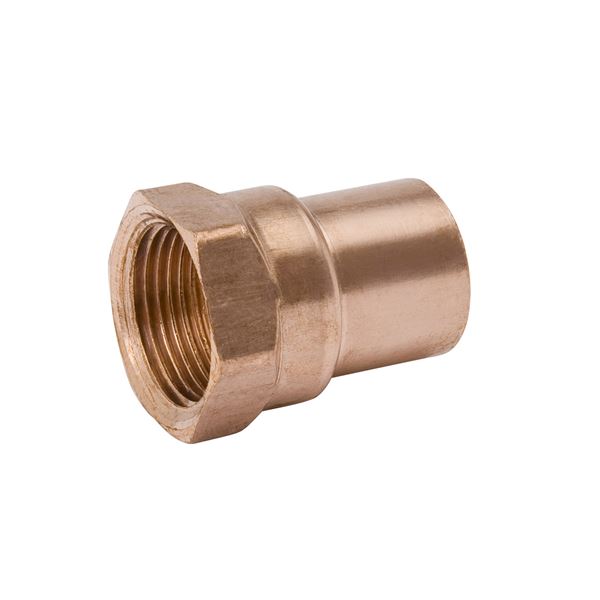

The MUELLER STREAMLINE W01207 adapter fitting is a straight, female adapter with a 1/8 inch size A and 1/8 inch size B. Constructed from UNS CI2200 copper with female soldered x female threaded end connections. Suitable for potable water supply systems and HVACR applications. It has a pressure rating of 700 PSI and a temperature rating of 250 Deg F.

• Lead-Free
• End Connection: Female Soldered x Female Threaded
• Material: UNS CI2200 Copper

Product Highlights

This adapter fitting is ideal for creating secure connections in plumbing and HVACR systems.

Product Information

Standard Information

• Brand: MUELLER STREAMLINE
• Manufacturer Part Number: W01207
• Country of Origin: KOREA, REPUBLIC OF

Technical Specifications

• Type: Straight, Female
• Size A: 1/8 Inch
• Size B: 1/8 Inch
• End Connection: Female Soldered x Female Threaded
• Material: Copper
• Material Specification: ASTM B75/B88/B280
• Process: Wrot
• Pressure Rating: 700 PSI
• Temperature Rating: 250 Deg F
• Application: Potable Water Supply System, HVACR
• Applicable Standard: UL (Canada and US), ASME B16.15/18/22/24/50/B1.20.1, MSS SPI04, NSF 61G
• Outer Diameter: 1/4 Inch
• Manufacturer Name: Mueller Streamline
• Manufacturer Part Number: W01207
• Series/Model: WC-402
• UNSPSC Code: 40183109
• UPC: 685768206767
• End Type: C - Cup (Female Solder)
• End Size: 1/8 in
• Second End Type: FPT - Female Pipe Tapered Thread, NPT
• Second End Size: 1/8 in
• Standards: NSF 61G, ASME B16.15, ASME B16.18, ASME B16.22, ASME B16.24, ASME B16.50, ASME B1.20.1
• Overall Length: 0.88 in
• Overall Height: 0.63 in
• Overall Width: 0.63 in
• Style: WC-402
• Mueller Description 1: 1/8 C X FPT ADAPTER
• Mueller Description 2: 1/4 OD X 1/8 FPT ADAPTER
• Application Type: Pressure
• End Style: C x FNPT
• Fitting/Connector Type: Adapter
• Nominal Size: 1/8 In
• Nom. Size: 1/8"
• O.D.: 1/4" x 1/8"
• Domestic/Import: Domestic
