Mueller Streamline W01187 Adapter Fitting 2 Inch

Product Description

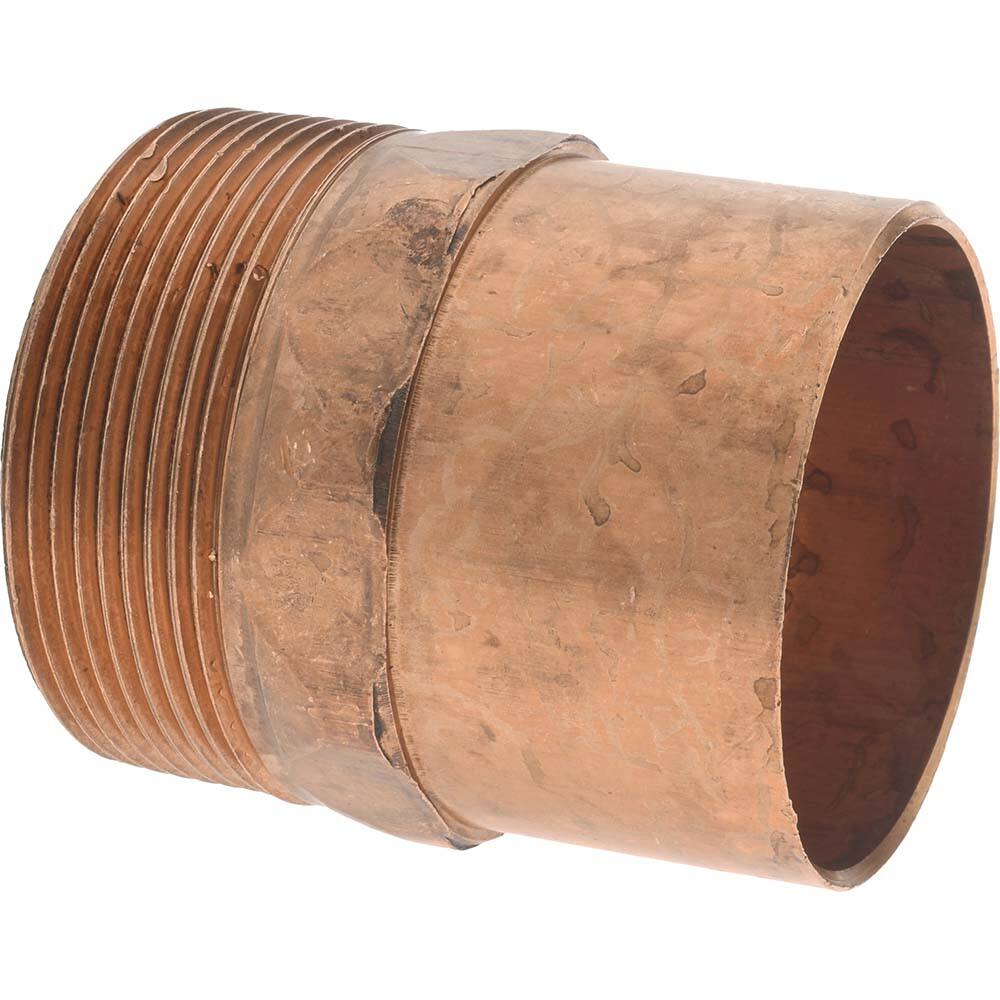

The MUELLER STREAMLINE W01187 adapter fitting is a straight, male adapter with a Size A and Size B of 2 inches. Constructed from UNS CI2200 copper with a wrot process, it features a female soldered x male threaded end connection. Suitable for potable water supply systems and HVACR applications. It has a pressure rating of 700 PSI and a temperature rating of 250 Deg F.

• Lead-Free
• End Connection: Female Soldered x Male Threaded
• Material: UNS CI2200 Copper

Product Highlights

This adapter fitting is ideal for connecting different types of pipes in plumbing and HVACR systems.

Product Information

Standard Information

• Brand: MUELLER STREAMLINE
• Manufacturer Part Number: W01187

Technical Specifications

• Type: Straight, Male
• Size A: 2 Inch
• Size B: 2 Inch
• End Connection: Female Soldered x Male Threaded
• Material: UNS CI2200 Copper
• Material Specification: ASTM B75
• Process: Wrot
• Pressure Rating: 700 PSI
• Temperature Rating: 250 Deg F
• Application: Potable Water Supply System, HVACR
• Applicable Standard: UL (Canada and US), ASME B16.15/18/22/24/50/B1.20.1, MSS SPI04, NSF 61G
• Lead-Free: true
• Outer Diameter: 2-1/8 Inch
• Brand: MUELLER STREAMLINE
• Fitting Type: Adapter
• Fitting Size: 2 in
• Style: Solder Joint
• End Style: Copper x MNPT
• Working Pressure: 700 psi
• Method of Manufacture: Seamless
• Industry Standards: ANSI/ASME B16.22, MSS SP104
• Nominal Size: 2 In
• End Type: C - Cup (Female Solder)
• End Size: 2 in
• Second End Type: MPT - Male Pipe Tapered Thread (NPT)
• Second End Size: 2 in
• Standards: NSF 61G, ASME B16.15, ASME B16.18, ASME B16.22, ASME B16.24, ASME B16.50, ASME B1.20.1
• Overall Length: 2.60 in
• Overall Height: 2.24 in
• Overall Width: 2.24 in
• Material Construction: Copper
• Tube OD: 2-1/8 in
