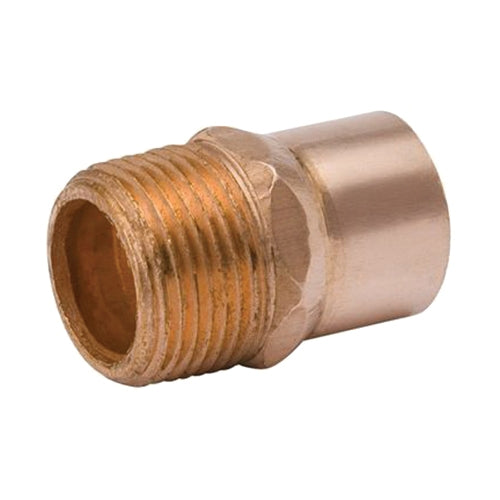

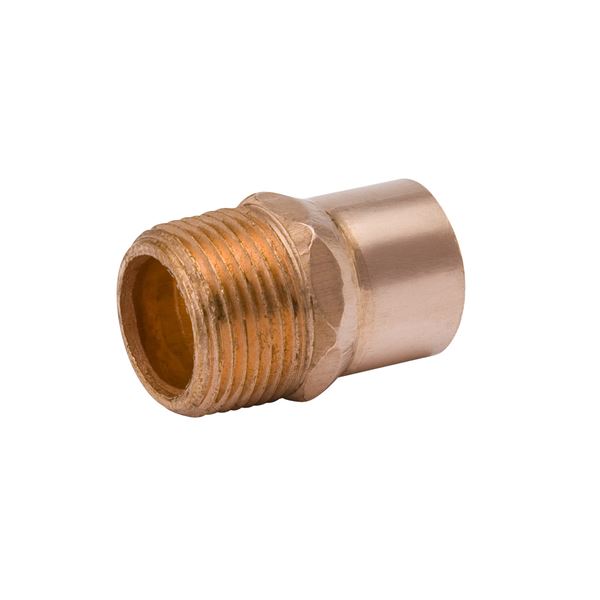

Mueller Streamline W01181 Adapter Fitting 1-1/2 Inch x 1 Inch

Product Description

The MUELLER STREAMLINE W01181 adapter fitting is a male, reducing type, ideal for potable water applications. Constructed from copper with ASTM B75 material specification and wrot process. It features a female soldered x male threaded end connection. Packaging includes 10 per inner carton, 100 per master carton.

• Lead Free
• End Connection: Female Soldered x Male Threaded
• Material: Copper, conforming to ASTM B75

Product Highlights

This copper adapter fitting is suitable for supply/pressurized systems and meets ASME B16.22/B1.20.1, MSS SP-104, ANSI/NSF 61G standards.

Product Information

Standard Information

• Brand: MUELLER STREAMLINE
• Manufacturer Part Number: W01181
• Country of Origin: Domestic

Technical Specifications

• Applicable Standard: ASME B16.22/B1.20.1, MSS SP-104, ANSI/NSF 61G
• Application: Potable Water
• End Connection: Female Soldered x Male Threaded
• Material: Copper
• Material Specification: ASTM B75
• Process: Wrot
• Size A: 1-1/2 Inch
• Size B: 1 Inch
• Type: Male, Reducing
• Fitting/Connector Type: Adapter
• Pressure Rating: 700 psi
• Domestic/Import: Domestic
• End Style: C x MNPT
• Overall Length: 2.19 in
• Overall Height: 1.92 in
• Overall Width: 1.92 in
