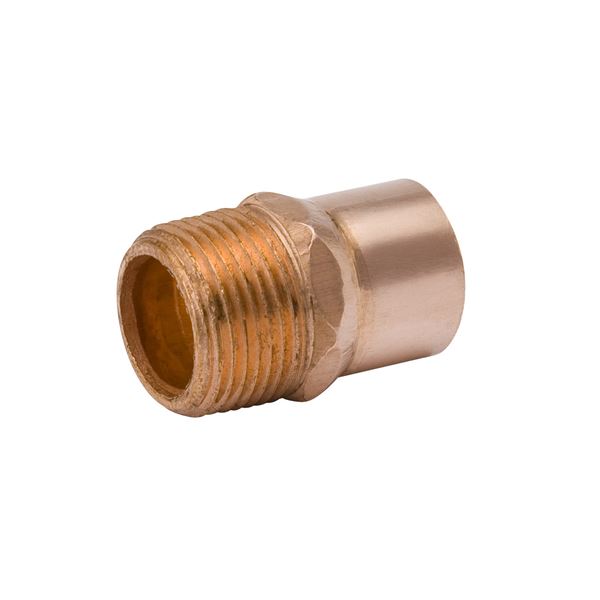

Mueller Streamline W01180 Adapter Fitting 1-1/2X1-1/4 CXM

Product Description

The Mueller Streamline W01180 adapter fitting is a reducing male adapter with a Size A of 1-1/2 Inch and Size B of 1-1/4 Inch. Constructed from UNS CI2200 copper, it features a female soldered x male threaded end connection. It is designed for potable water supply systems and HVACR applications, with a pressure rating of 700 PSI and a temperature rating of 250 Deg F.

• Reducing, male adapter fitting
• Female Soldered x Male Threaded end connection
• Constructed from UNS CI2200 copper

Product Highlights

This lead-free adapter fitting is suitable for potable water and HVACR systems, adhering to UL, ASME, MSS SPI04, and NSF 61G standards.

Product Information

Standard Information

• Brand: MUELLER STREAMLINE
• Manufacturer Part Number: W01180
• Country of Origin: Domestic

Technical Specifications

• Type: Reducing, Male
• Size A: 1-1/2 Inch
• Size B: 1-1/4 Inch
• End Connection: Female Soldered x Male Threaded
• Material: UNS CI2200 Copper
• Material Specification: ASTM B75/B88/B280
• Process: Wrot
• Pressure Rating: 700 PSI
• Temperature Rating: 250 Deg F
• Application: Potable Water Supply System, HVACR
• Applicable Standard: UL (Canada and US), ASME B16.15/18/22/24/50/B1.20.1, MSS SPI04, NSF 61G
• Additional Information: Lead-Free; Outer Diameter 1-5/8 Inch
• Category: Plumbing & Bath / Kitchen Fixtures
• UNSPSC Code: 40183109
• Manufacturer Name: Mueller Streamline
• Manufacturer Part Number: W01180
• Features/Benefits: Lead-Free
• End Type: C - Cup (Female Solder)
• End Size: 1 1/2 in
• Second End Type: MPT - Male Pipe Tapered Thread (NPT)
• Second End Size: 1 1/4 in
• Standards: NSF 61G, ASME B16.15, ASME B16.18, ASME B16.22, ASME B16.24, ASME B16.50, ASME B1.20.1
• Overall Length: 2.19 in
• Overall Height: 1.83 in
• Overall Width: 1.83 in
• Domestic/Import: Domestic
• End Style: C x FNPT
• Nominal Size: 1-1/2 x 1-1/4 In
• Brand: MUELLER INDUSTRIES
• Connection Size: 1-1/2 x 1-1/4 in
• Connection Type: Female Solder Cup x MNPT
• Item Name: Reducing Adapter
• Length: 2.19 in
• End Size (a): 1 1/2"
• End Size (b): 1 1/4"
