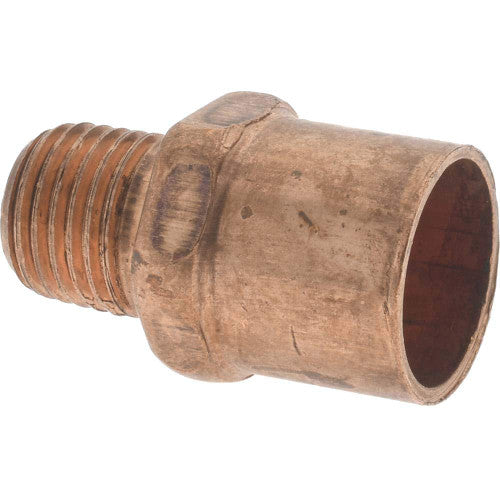

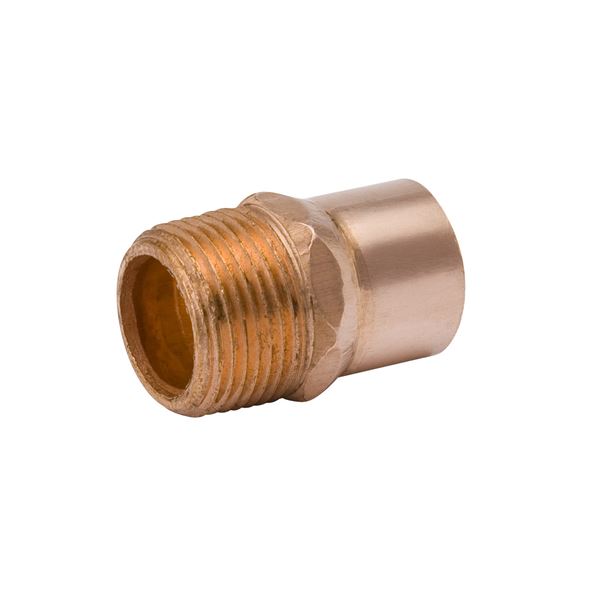

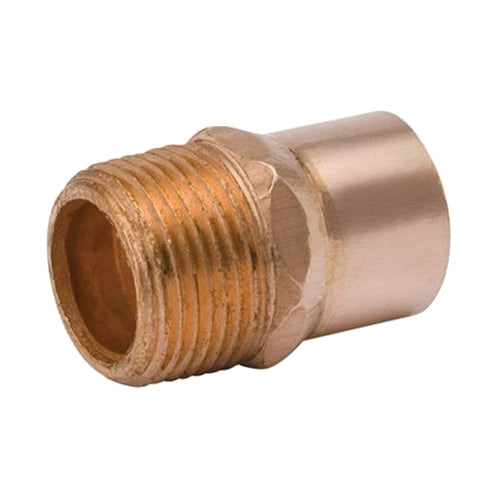

Mueller Streamline W01133 Adapter Fitting 1/2 x 1/4 Inch

Product Description

The MUELLER STREAMLINE W01133 adapter fitting is a reducing male adapter with a Size A of 1/2 inch and Size B of 1/4 inch. Constructed from UNS CI2200 copper with material specification ASTM B75/B88/B280, it features a female soldered x male threaded end connection. Suitable for potable water supply systems and HVACR applications.

• Lead-Free
• End connection: Female Soldered x Male Threaded
• Pressure Rating: 700 PSI

Product Highlights

This adapter fitting is ideal for reducing connections in plumbing and HVACR systems, ensuring a secure and reliable fit.

Product Information

Standard Information

• Brand: MUELLER STREAMLINE
• Manufacturer Part Number: W01133
• Country of Origin: Domestic

Technical Specifications

• Applicable Standard: UL (Canada and US), ASME B16.15/18/22/24/50/B1.20.1, MSS SPI04, NSF 61G
• Application: Potable Water Supply System, HVACR
• End Connection: Female Soldered x Male Threaded
• Material: UNS CI2200 Copper
• Material Specification: ASTM B75/B88/B280
• Pressure Rating: 700 PSI
• Process: Wrot
• Size A: 1/2 Inch
• Size B: 1/4 Inch
• Temperature Rating: 250 Deg F
• Type: Reducing, Male
• Outer Diameter: 5/8 Inch
• Fitting Type: Adapter
• Fitting Size: 1/2 x 1/4 in
• Style: Solder Joint
• End Style: C x FNPT
• Nominal Size: 1/2 x 1/4 inch
• Connection Type: Sweat x MIP
• Overall Length: 1.25 in
• Overall Height: 0.85 in
• Overall Width: 0.85 in
• Standards: NSF 61G, ASME B16.15, ASME B16.18, ASME B16.22, ASME B16.24, ASME B16.50, ASME B1.20.1
• Domestic/Import: Domestic
