Mueller Streamline W 60999 P-Trap 5/8 inches OD Copper P (1/2 C x 1/2 C)

Product Description

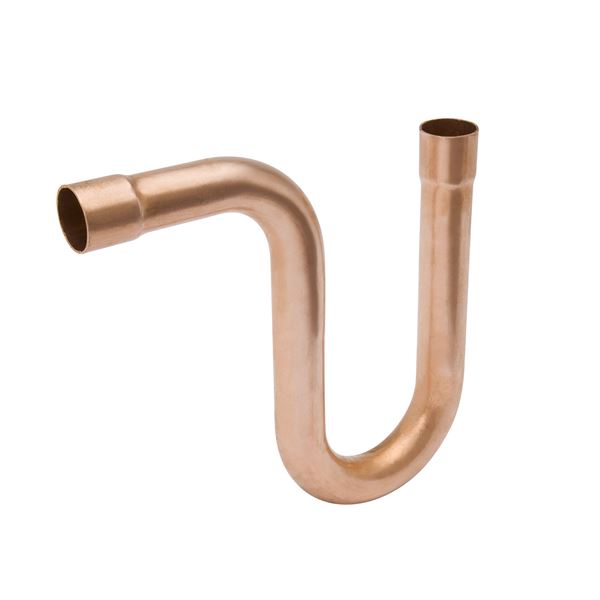

Mueller Streamline W 60999 is a P-style copper P-trap designed for suction-line and above-ground potable water supply applications. The fitting features a 5/8 in outside diameter body and C x C 1/2 in cup (female solder) ends, and is constructed from wrot copper. The component is listed to applicable ASME standards and NSF 61G and has compact overall dimensions for tight installations.

• 5/8 in outside diameter copper P-style trap with model/style WE-554P
• C x C female solder (cup) 1/2 in ends; suitable for suction-line and pressurized potable systems
• Overall length 6.82 in, overall height 6.32 in, meets NSF 61G and applicable ASME standards

Product Highlights

Copper P-trap W 60999 with 5/8 in OD, 1/2 C x 1/2 C cup ends, compact dimensions, and ASME/NSF compliance

Product Information

Standard Information

• Brand: MUELLER STREAMLINE
• Manufacturer Part Number: W 60999

Technical Specifications

• Brand: MUELLER STREAMLINE
• MPN: W 60999
• Model: WE-554P
• Product Name: P-Trap 5/8" OD Copper P
• Material: Wrot copper
• End Type: C - Cup (Female Solder)
• End Size: 1/2 in
• Second End Type: C - Cup (Female Solder)
• Second End Size: 1/2 in
• Outside Diameter: 5/8 in
• Weight: 0.38 lb
• Overall Length: 6.82 in
• Overall Height: 6.32 in
• Overall Width: 0.69 in
• Standards: NSF 61G; ASME B16.15; ASME B16.18; ASME B16.22; ASME B16.24; ASME B16.50; ASME B1.20.1
• Operating Temperature: See CDA copper fitting pressure temperature ratings
• Operating Pressure: See CDA copper fitting pressure temperature ratings
• Style: WE-554P
• MPN/Item Number: W 60999
