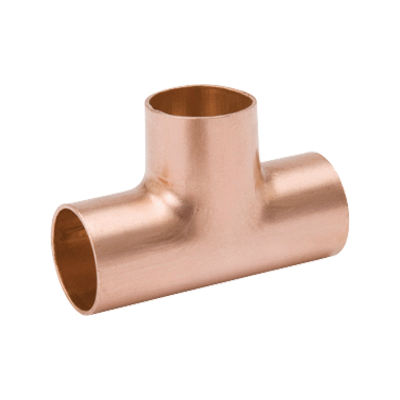

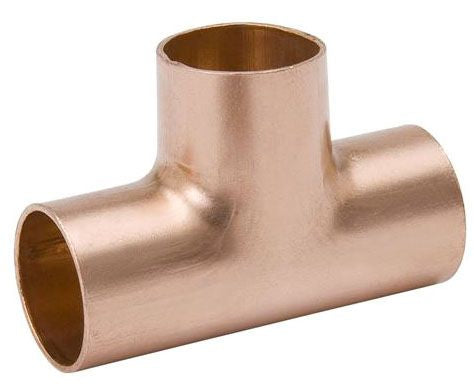

Mueller Streamline W 40313 Copper Tee 5/16 in CxCxC WT600-5/16

Product Description

Mueller Streamline W 40313 is a WT-600 series solder-joint copper tee fitting with 5/16 inch outside-diameter connections. The Wrot-form fitting is constructed from UNS C12200 copper and provides C x C x C female soldered connections for copper piping. It is pressure rated to 700 PSI at 250 F and meets NSF 61G, UL, ASME and MSS standards for potable water and HVAC/R applications.

• 5/16 in outside diameter connections, nominal size 3/16 in x 3/16 in x 3/16 in; C x C x C female soldered ends
• Material: UNS C12200 copper; Wrot-form solder-joint pressure fitting (WT-600 series)
• Pressure rated 700 PSI at 250 F; complies with UL (US and Canada), NSF 61G, ASME B16.15/B16.18/B16.22/B16.24/B16.50/B1.20.1 and MSS SP104

Product Highlights

5/16 in OD copper tee, solder-joint CxCxC, 700 PSI @ 250 F, meets NSF and ASME standards

Product Information

Standard Information

• Brand: MUELLER STREAMLINE
• Manufacturer Part Number: W 40313
• Country of Origin: United States

Technical Specifications

• Brand: Mueller Streamline
• Manufacturer Part Number: W 40313
• Replacement Part Number: WT600-5/16
• Model: WT-600
• Series: Streamline
• Alternate Part Numbers: 685768213550, MBCWT600-5/16, W40313
• UPC: 685768213550
• Product Type: Copper Wrot Pressure Fitting
• Fitting Type: Copper solder-joint fitting
• Material: UNS C12200 Copper (wrot)
• Form: Wrot
• Connection Type: Female soldered x Female soldered x Female soldered
• Connection Size OD: 5/16 in x 5/16 in x 5/16 in
• Nominal Size: 3/16 in x 3/16 in x 3/16 in
• Pressure Rating: 700 PSI at 250 F
• Temperature Rating: 250 F
• Applications: Potable water supply systems; HVAC/R
• Standards: UL (US and Canada); NSF 61G; ASME B16.15, B16.18, B16.22, B16.24, B16.50, B1.20.1; MSS SP104; ASTM
• Item Weight: 0.01 lbs per EA
• Unit of Measure: EA
• Connection Ends: Copper
• Country of Origin: USA
