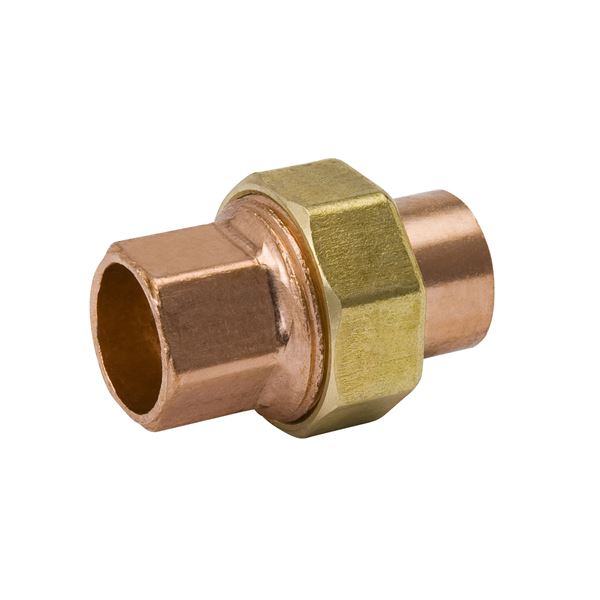

Mueller Streamline W 08005 Union C x C 1 in

Product Description

Mueller Streamline W 08005 is a 1 in C x C union fitting manufactured of wrot copper for use in above-ground potable water supply systems. The solder-joint union uses C (cup) female solder ends to join copper piping, has an outside diameter of 1-1/8 in, an overall length of 2.50 in and a pressure rating of 700 psi. The fitting meets applicable ASME standards and NSF 61G.

• Nominal size 1 in; end style C x C with C - cup (female solder) ends; outside diameter 1-1/8 in OD
• Material: wrot copper (wrought copper); unit weight 0.52 lb; overall length 2.50 in; height 1.25 in; width 1.75 in
• Pressure rating 700 psi; standards/approvals: ASME B16.15, B16.18, B16.22, B16.24, B16.50, B1.20.1 and NSF 61G; intended for above-ground potable water systems

Product Highlights

1 in C x C solder-joint union, wrot copper construction, 700 psi, ASME and NSF 61G compliant

Product Information

Standard Information

• Brand: MUELLER STREAMLINE
• Manufacturer Part Number: W 08005
• Country of Origin: Domestic (United States)

Technical Specifications

• Brand: Mueller Streamline
• Manufacturer Part Number: W 08005
• Model/Style: WC-407
• Product Type: Union
• Fitting/Connector Type: Union
• End Style: C x C
• End Type: C - Cup (Female Solder)
• Nominal Size: 1 in
• Outside Diameter: 1-1/8 in (1.125 in)
• Overall Length: 2.50 in
• Overall Height: 1.25 in
• Overall Width: 1.75 in
• Weight: 0.52 lb
• Material: Wrot copper
• Pressure Rating: 700 psi
• Intended Use: For use in above-ground potable water supply systems
• Standards/Approvals: ASME B16.15; ASME B16.18; ASME B16.22; ASME B16.24; ASME B16.50; ASME B1.20.1; NSF 61G
• Wrot Style Number: WC-407
• CAD/BIM Availability: Yes
