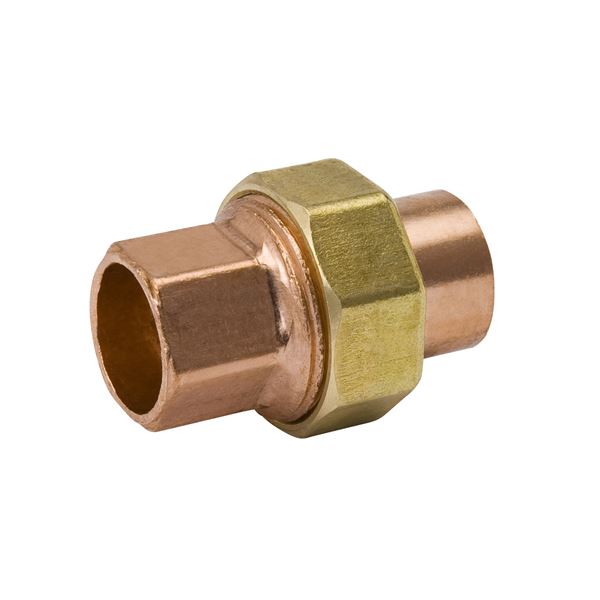

Mueller Streamline W 08004 copper union 3/4 C x 3/4 C (7/8 OD)

Product Description

Mueller Streamline W 08004 is a copper union coupling with 3/4 inch C x 3/4 inch C solder-joint connections and a 7/8 inch outside diameter. Constructed of wrot copper, the union is designed for above-ground potable water supply systems and is also used in plumbing, mechanical, refrigeration, and HVAC applications. The fitting meets multiple ASME and NSF standards and has an overall length of 2.15 inches and a weight of approximately 0.37 lb.

• Material: wrot copper; connection type: C x C (female solder) with 3/4 inch end size and 7/8 inch OD
• Standards: NSF 61G / NSF/ANSI 61 Annex G; ASME B16.15; ASME B16.18; ASME B16.22; ASME B16.24; ASME B16.50; ASME B1.20.1; MSS SP104
• Dimensions and weight: overall length 2.15 in; overall height 1.70 in; overall width 1.70 in; weight 0.37 lb

Product Highlights

3/4 C x 3/4 C solder-joint copper union, 7/8 in outside diameter; wrot copper construction; ASME and NSF compliant

Product Information

Standard Information

• Brand: MUELLER STREAMLINE
• Manufacturer Part Number: W 08004

Technical Specifications

• Brand: MUELLER STREAMLINE
• MPN: W 08004
• Manufacturer: Mueller Industries
• Model/Style: WC-407
• Item Number: W 08004
• Series/Model: WC-407
• Material: Wrot copper
• Connection Type: C x C (cup female solder)
• End Size: 3/4 inch
• Nominal Size: 3/4 x 3/4 inch
• Outer Diameter (OD): 7/8 inch
• Overall Length: 2.15 in
• Overall Height: 1.70 in
• Overall Width: 1.70 in
• Weight: 0.37 lb
• End Type: C - Cup (Female Solder)
• Standards/Certifications: NSF 61G (NSF/ANSI 61 Annex G); ASME B16.15; ASME B16.18; ASME B16.22; ASME B16.24; ASME B16.50; ASME B1.20.1; MSS SP104
• Application: Above-ground potable water supply systems; plumbing, mechanical, refrigeration, and HVAC applications
• Category: Copper fittings - unions
• UPC: 685768211891
• Reference ID: MUELLERSTREAMLINEW08004
