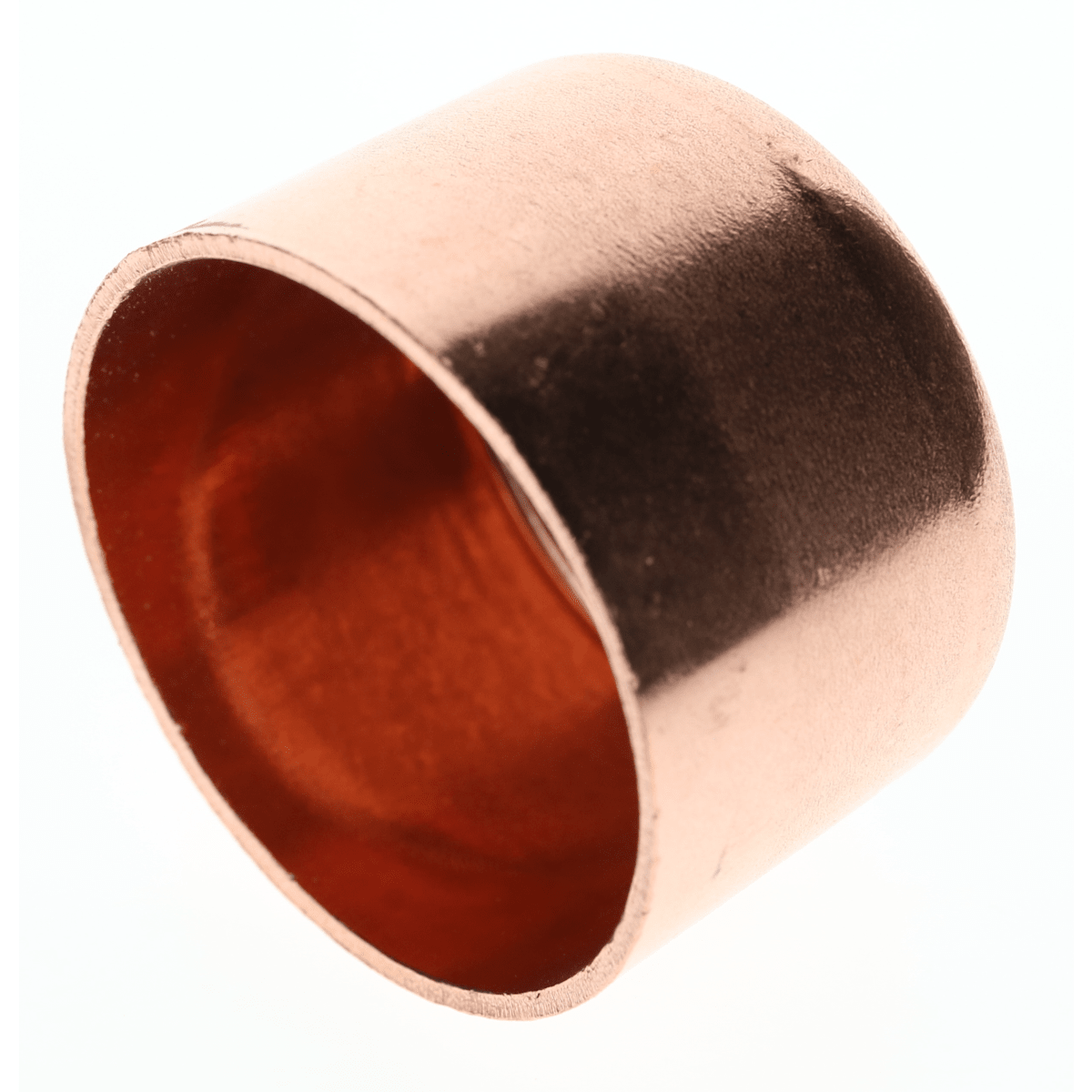

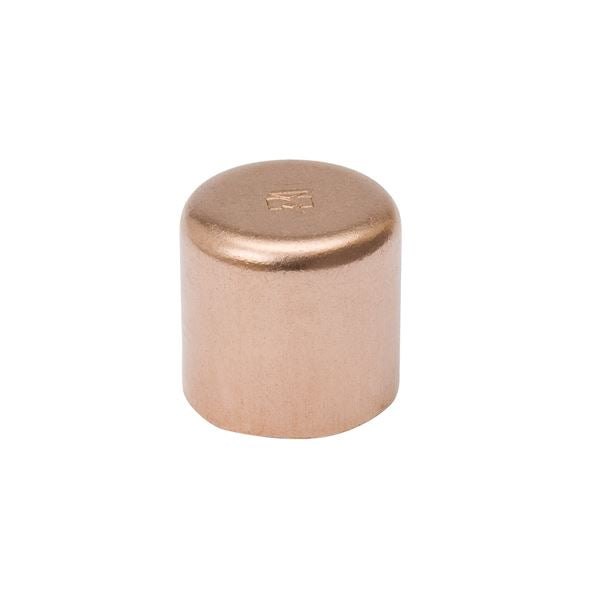

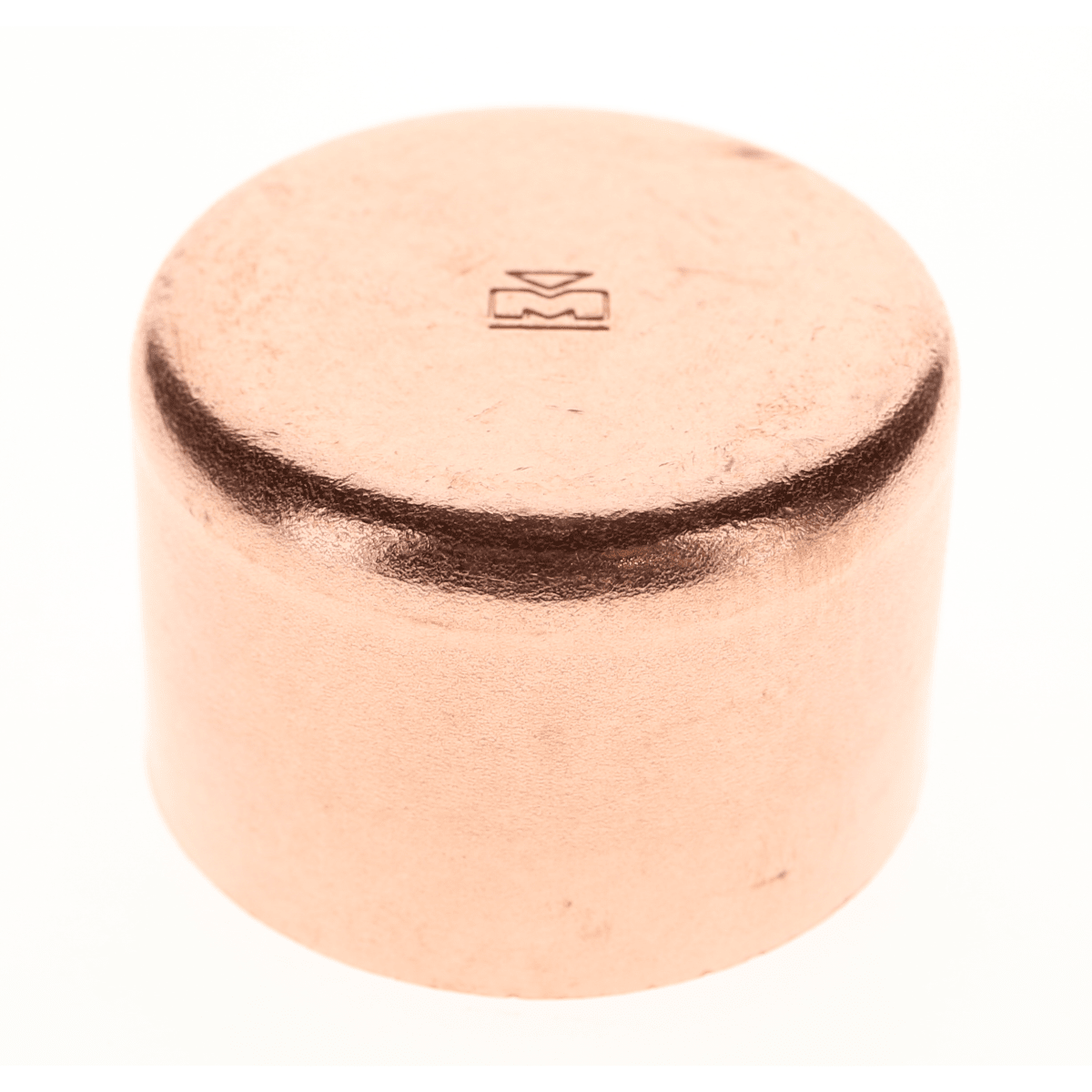

Mueller Streamline W 07016 3 C Tube Cap (3 in) WC415-3-1/8

Product Description

Mueller Streamline W 07016 is a wrot copper 3 C tube cap designed to terminate 3 in copper tubing with a solder (sweat) connection. The cap serves as a female solder cup (Type C) for above-ground potable water supply systems, carries a 700 psi pressure rating, and conforms to ASME B16.15/B16.18/B16.22/B16.24/B16.50/B1.20.1 and NSF 61G standards. Model/style WC-415 specifies a 3-1/8 in outside diameter.

• Constructed of wrot (wrought) copper for solder-joint installation; style WC-415
• Connection: Type C female solder cup for 3 in tubing (3-1/8 in OD); overall length 1.74 in
• Pressure rating 700 psi; certified to NSF 61G and ASME B16.15, B16.18, B16.22, B16.24, B16.50, B1.20.1

Product Highlights

3 in wrot copper solder-joint cap (WC-415) with 700 psi rating and NSF/ASME certifications for above-ground potable water systems.

Product Information

Standard Information

• Brand: MUELLER STREAMLINE
• Manufacturer Part Number: W 07016

Technical Specifications

• Brand: Mueller Streamline
• Manufacturer Part Number: W 07016
• Model/Style: WC-415
• Alternate Part Number: WC415-3-1/8; COPF-300-CAP-C; MBCWC415-3-1/8
• Product Type: Cap
• Connection Type: Type C (female solder cup / sweat connection)
• Connection Size: 3 in
• Outside Diameter: 3-1/8 in
• Material: Wrot copper
• Pressure Rating: 700 psi
• Standards/Certifications: NSF 61G; ASME B16.15; ASME B16.18; ASME B16.22; ASME B16.24; ASME B16.50; ASME B1.20.1
• Applications: Above-ground potable water supply systems
• Length: 1.74 in
• Overall Height: 3.30 in
• Overall Width: 3.30 in
• Weight: 0.73 lb
• UOM: EA
• UPC: 685768211143
