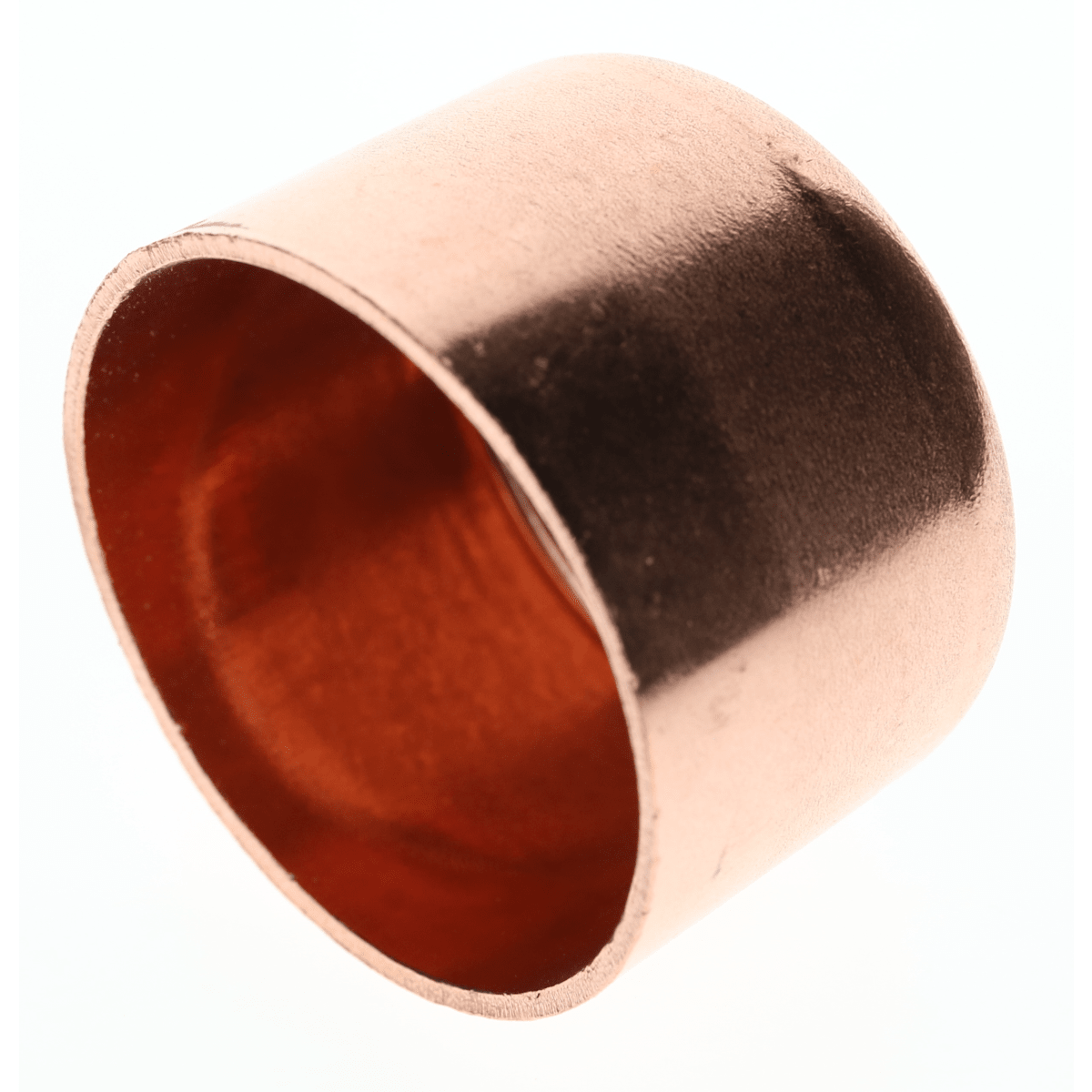

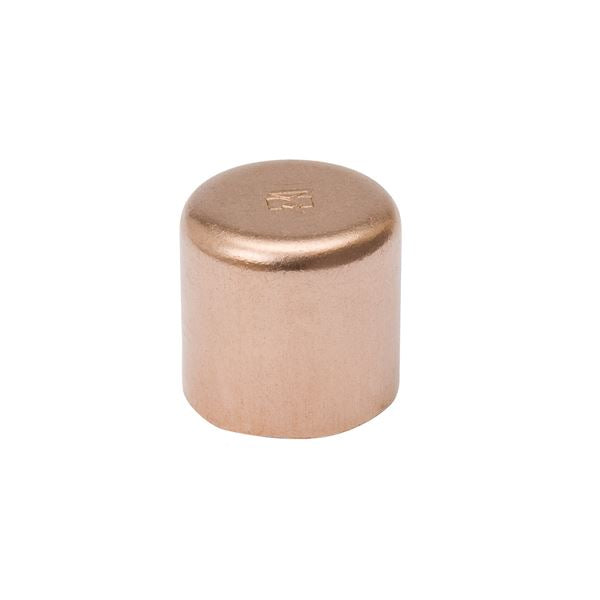

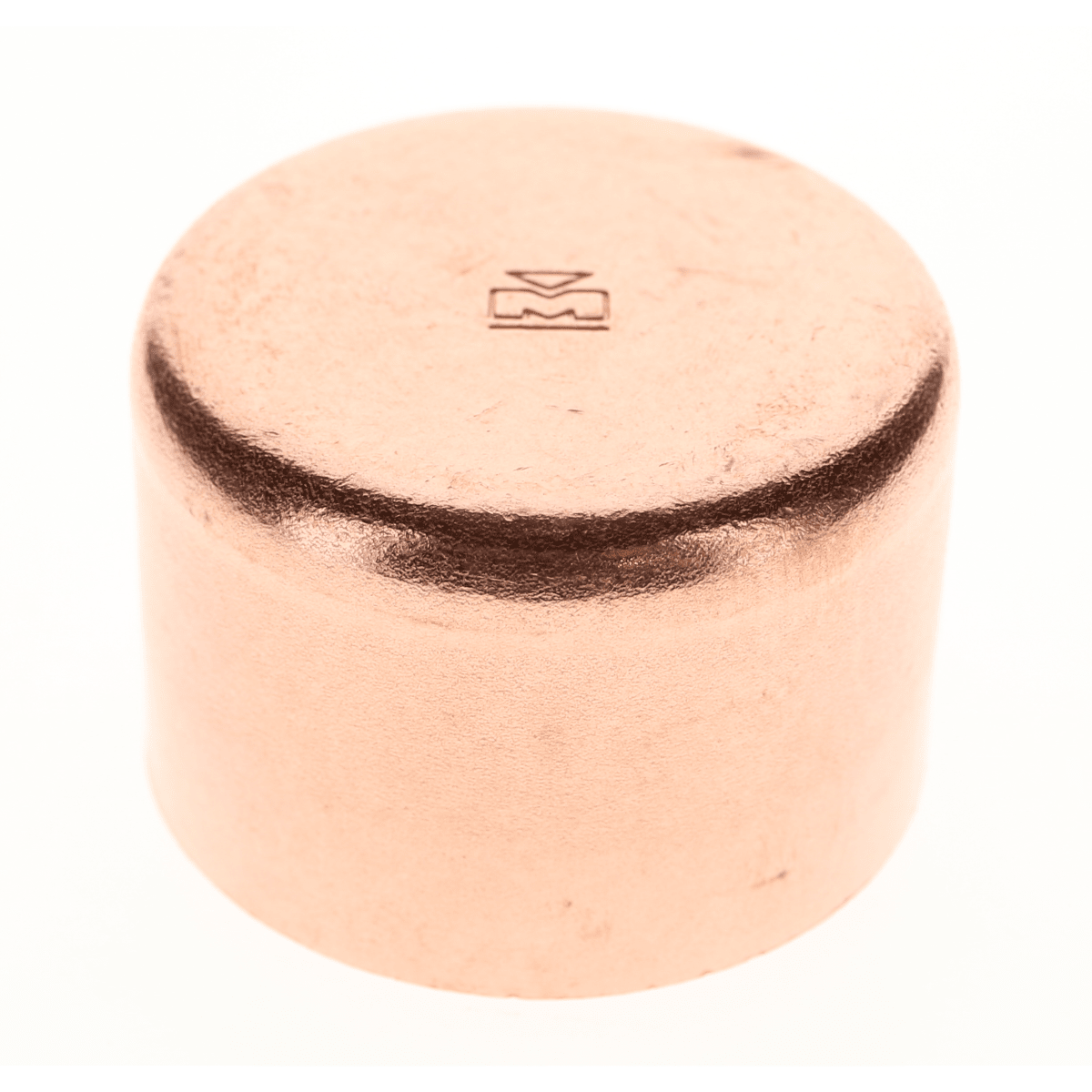

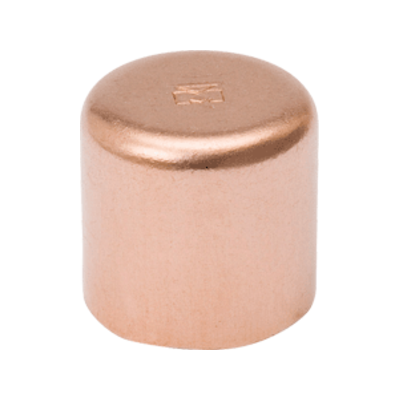

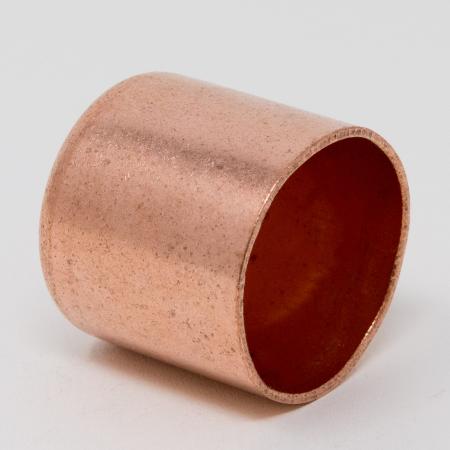

Mueller Streamline W 07014 2 C Tube Cap (2 in)

Product Description

Mueller Streamline W 07014 is a 2 in nominal C-type solder-joint cap constructed of wrot copper for pressure applications. The WC-415 style cap has a female solder cup (C) connection, a typical overall length of 1.4 in and is sized for 2-1/8 in outside diameter tubing. It is rated to 700 psi at temperatures up to 250 deg F and conforms to ASME and MSS standards for potable water supply systems.

• Material: Wrot copper (WC-415) with female solder cup (C) end for solder-joint connection
• Pressure/temperature: rated 700 psi at up to 250 deg F; third-party verification by UL in select sizes
• Standards/certifications: conforms to ASME B16.15/B16.18/B16.22 and MSS SP104; NSF 61G certified

Product Highlights

2 in nominal wrot copper solder-joint cap (WC-415) for pressurized potable water systems; 700 psi at 250 deg F; meets ASME and NSF 61G standards.

Product Information

Standard Information

• Brand: MUELLER STREAMLINE
• Manufacturer Part Number: W 07014
• Country of Origin: Domestic

Technical Specifications

• Brand: Mueller Streamline
• Manufacturer Part Number: W 07014
• Model/Style: WC-415
• Product Name: Cap (C - cup, female solder)
• Material: Wrot copper (WC-415)
• Nominal Size: 2 in
• Connection Size OD: 2-1/8 in
• Connection Type: Female solder cup (C)
• Overall Length: 1.4 in
• Overall Width: 2.25 in
• Overall Height: 2.25 in
• Weight: 0.30 lb
• Pressure Rating: 700 psi
• Temperature Rating: 250 deg F
• Standards/Certifications: ASME B16.15, B16.18, B16.22; MSS SP104; NSF 61G; UL recognized/verified in select sizes
• Applications: Above-ground potable water supply and pressurized systems
• Form: Wrot (wrought) pressure fitting
• UPC: 685768211129
• Unit of Measure: EA
