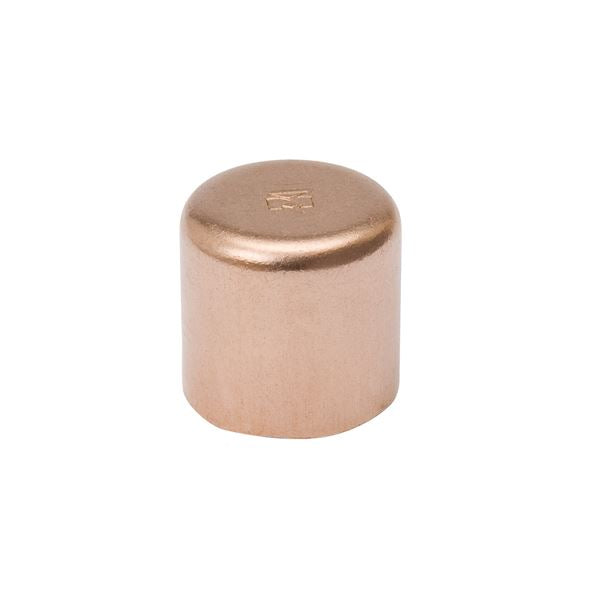

Mueller Streamline W 07013 Cap C 1-1/2 inches (25/Bag)

Product Description

Mueller Streamline W 07013 is a solder-joint copper tube cap (WC-415) intended for use in above-ground potable water supply systems and refrigeration/HVAC copper tubing. The cap is made of wrot copper with a cup (female solder) end type for 1-1/2 inch tubing and an outside diameter of 1-5/8 inch. It is manufactured to applicable ASME standards and meets NSF 61G.

• Material: wrot copper; manufactured to ASME standards and meets NSF 61G
• End type: cup (female solder) for 1-1/2 inch tube; outside diameter 1-5/8 inch
• Dimensions: overall length 1.15 in, overall height 1.74 in, overall width 1.74 in; weight 0.18 lb

Product Highlights

Solder-joint WC-415 tube cap for 1-1/2 inch copper tubing; NSF 61G and ASME compliant; 1-5/8 in OD.

Product Information

Standard Information

• Brand: MUELLER STREAMLINE
• Manufacturer Part Number: W 07013

Technical Specifications

• Brand: Mueller Streamline
• Manufacturer Part Number: W 07013
• Item Number: W 07013
• Item Name: Cap, C, 1-1/2"
• Model / Style: WC-415
• Material: Wrot copper
• End Type: C - Cup (Female Solder)
• End Size: 1 1/2"
• Outside Diameter (OD): 1-5/8 in
• Weight: 0.18 lb
• Overall Length: 1.15 in
• Overall Height: 1.74 in
• Overall Width: 1.74 in
• Standards: NSF 61G; ASME B16.15; ASME B16.18; ASME B16.22; ASME B16.24; ASME B16.50; ASME B1.20.1
• Operating Temperature: See CDA-Copper-Fitting-Pressue-Temp-Ratings
• Operating Pressure: See CDA-Copper-Fitting-Pressue-Temp-Ratings
• Typical Use: Above-ground potable water supply systems; refrigeration and HVAC copper tubing
• Category: Copper fittings - Caps
• Qty Pcs / Bag: 25
• Master Qty Pcs / Box: 250
• CAD Drawing PDF: https://voomi-assets-public.s3.amazonaws.com/products/2025-05-21/voomi_MUELLER STREAMLINE_W07013_documents_cad_drawing_e0f9027ad61f7a6a6b770002092a5e3b245423.pdf
