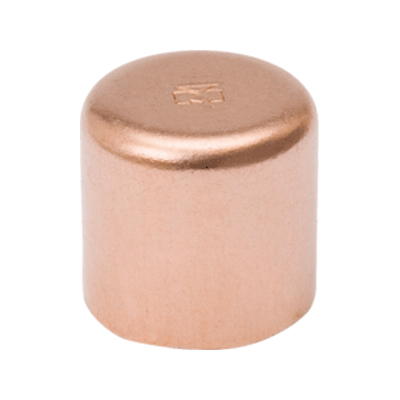

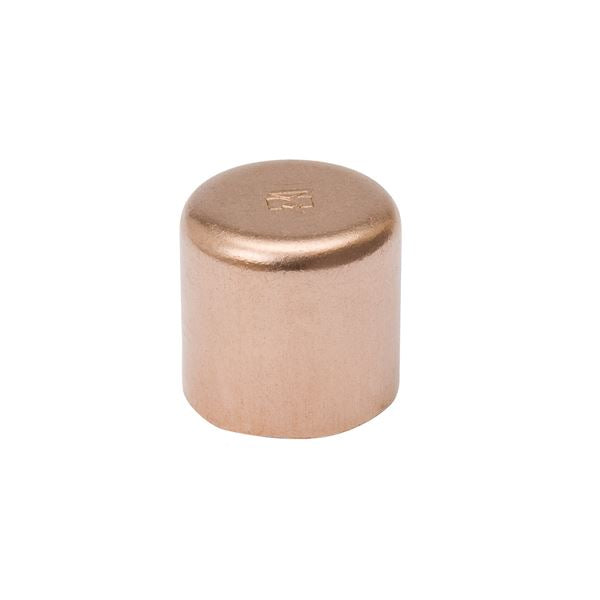

Mueller Streamline W 07009 Cap C 3/4 inches (50 per bag)

Product Description

The Mueller Streamline W 07009 is a 3/4 inch (7/8 inch outside diameter) solder-joint copper tube cap for above-ground potable water supply and pressure systems. Constructed of wrot copper in WC-415 form, the fitting provides a female cup (C) end for soldered connections, meets applicable ASME standards and NSF 61G, and has compact dimensions for installations requiring a 3/4 in cap.

• Wrot copper solder-joint (C cup) tube cap for 3/4 in nominal tubing (7/8 in OD)
• Meets ASME standards B16.15, B16.18, B16.22, B16.24, B16.50 and B1.20.1; meets NSF 61G
• Compact dimensions (0.80 in L x 0.95 in H x 0.95 in W); packaged 50 pieces per bag, 500 per master box

Product Highlights

3/4 in (7/8 in OD) solder-joint wrot copper tube cap, WC-415 style, meets ASME and NSF 61G standards

Product Information

Standard Information

• Brand: MUELLER STREAMLINE
• Manufacturer Part Number: W 07009

Technical Specifications

• MPN: W 07009
• Brand: MUELLER STREAMLINE
• Product Type: Copper wrot pressure fitting
• Series: Streamline
• Form: Wrot (wrought)
• Style: WC-415
• Material: Wrot copper
• Connection Type: Solder-joint (female cup)
• End Type: C - Cup (Female Solder)
• Nominal Size: 3/4"
• Outside Diameter: 7/8"
• Weight: 0.04 lb
• Dimensions: 0.80 in L x 0.95 in W x 0.95 in H
• Standards: NSF 61G; ASME B16.15; ASME B16.18; ASME B16.22; ASME B16.24; ASME B16.50; ASME B1.20.1
• Operating Temperature: See CDA-Copper-Fitting-Pressue-Temp-Ratings
• Operating Pressure: See CDA-Copper-Fitting-Pressue-Temp-Ratings
• Packaging Quantity: 50 pcs per bag
• Master Packaging Quantity: 500 pcs per master box
• UPC: 685768232421
