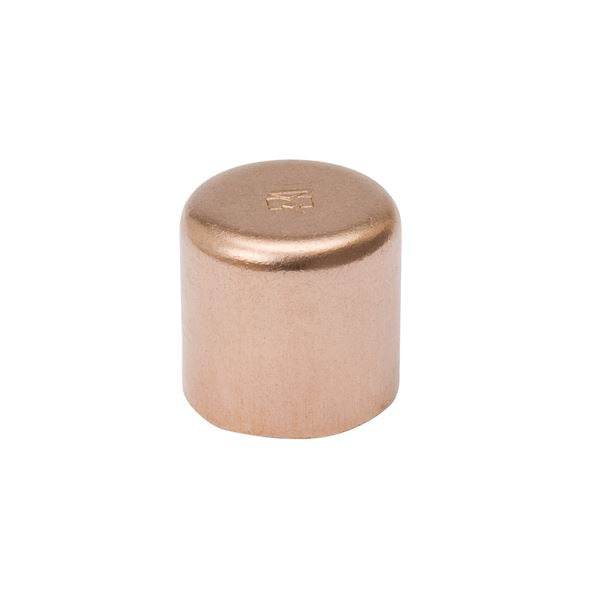

Mueller Streamline W 07007 Cap Fitting 1/2 Inch Nominal (5/8 Inch OD, 100 Pack) W07007

Product Description

Mueller Streamline W 07007 is a copper cap fitting for soldered connections intended for potable water supply and HVACR systems. The WC-415 style cap is made from UNS C12200 wrot copper with a C (cup) female solder end, sized for 1/2 inch nominal tubing (5/8 inch outer diameter). It is lead-free and rated to 700 PSI and 250°F, meeting applicable ASME and NSF 61G standards.

• Constructed from UNS C12200 wrot copper with C (cup) female solder end for solder-joint connections
• Pressure rating 700 PSI and temperature rating 250°F; meets UL (US/Canada), ASME B16 series, MSS SP-104, and NSF 61G
• Nominal 1/2 inch tube (5/8 inch OD); compact dimensions 0.53 in L x 0.29 in H x 0.29 in W; packaged 100 per bag (1000 per master box)

Product Highlights

Lead-free copper solder cap for 1/2 inch nominal (5/8 inch OD) tubing; WC-415 series; 700 PSI, 250°F; meets ASME and NSF 61G.

Product Information

Standard Information

• Brand: MUELLER STREAMLINE
• Manufacturer Part Number: W 07007

Technical Specifications

• Brand: Mueller Streamline
• Manufacturer Part Number: W 07007
• MPN Alternate: W07007
• Model/Series: WC-415
• Product Type: Cap fitting
• Nominal Size: 1/2 Inch
• Outer Diameter: 5/8 Inch
• Connection Size: 5/8 Inch
• End Connection: Female soldered (C - Cup)
• Material: UNS C12200 copper
• Material Specification: ASTM B75/B88/B280
• Process/Form: Wrot
• Pressure Rating: 700 PSI
• Temperature Rating: 250 Deg F
• Application: Potable water supply systems, HVACR, above-ground potable water supply systems
• Standards: UL (Canada and US); ASME B16.15; ASME B16.18; ASME B16.22; ASME B16.24; ASME B16.50; ASME B1.20.1; MSS SP-104; NSF 61G
• Lead Free: Yes
• Weight: 0.02 lb
• Dimensions: 0.53 in L x 0.29 in H x 0.29 in W
• Pack Quantity: 100 per bag; 1000 per master box
• UPC: 685768232414
• UNSPSC Code: 40183104
• Alternate Part Numbers: 30685768211052, CAP58, MBCWC415-5/8, WC415-5/8
• Series: Streamline
• Type: Cap (Caps)
• Intended Use: Precision solder-joint copper fitting for supply and pressurized systems
