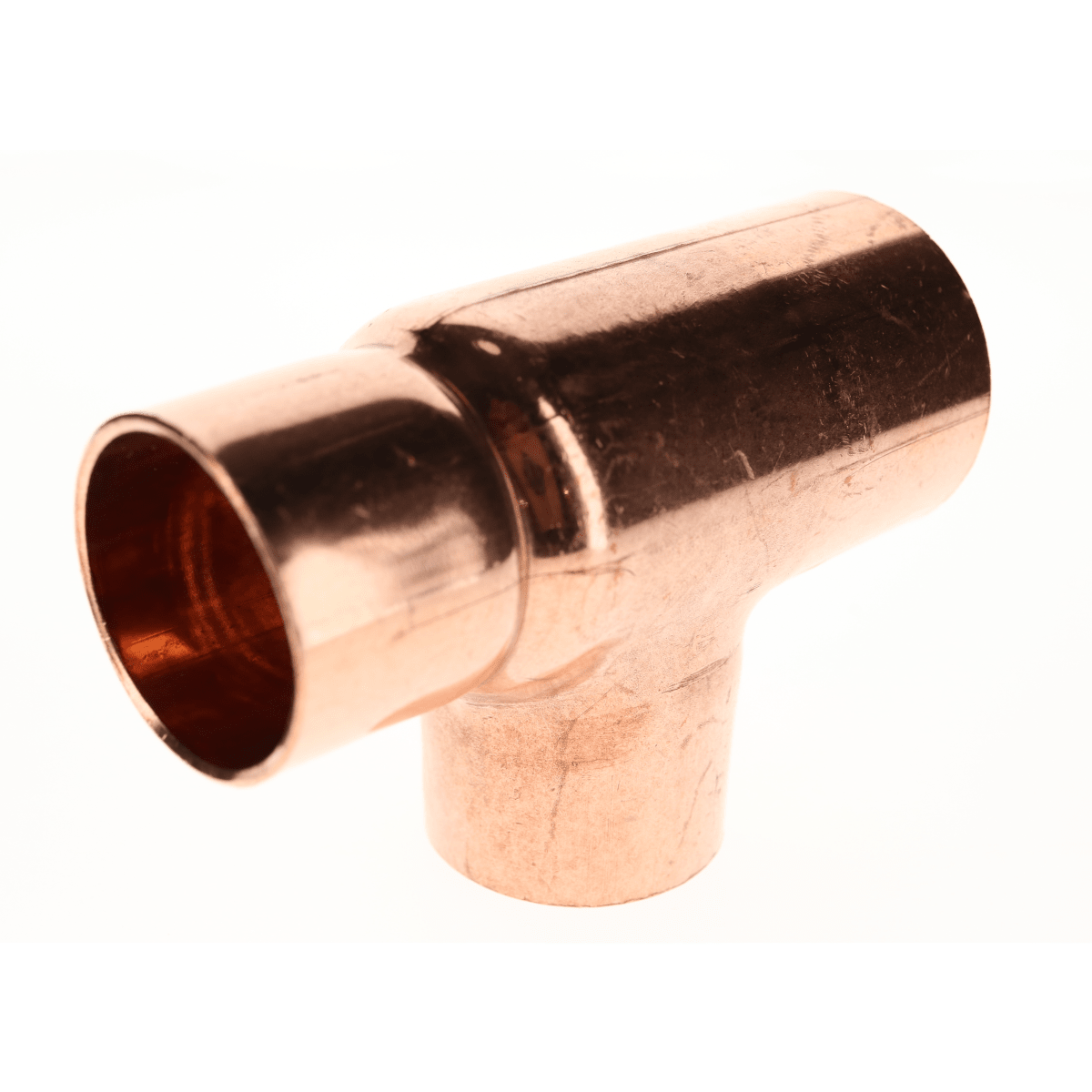

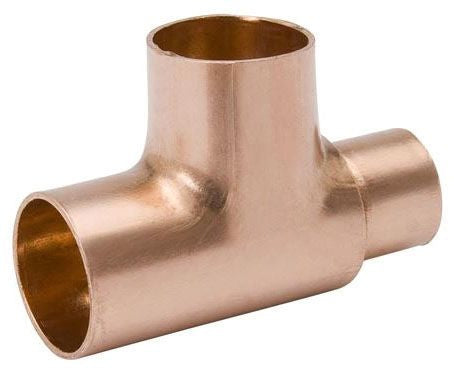

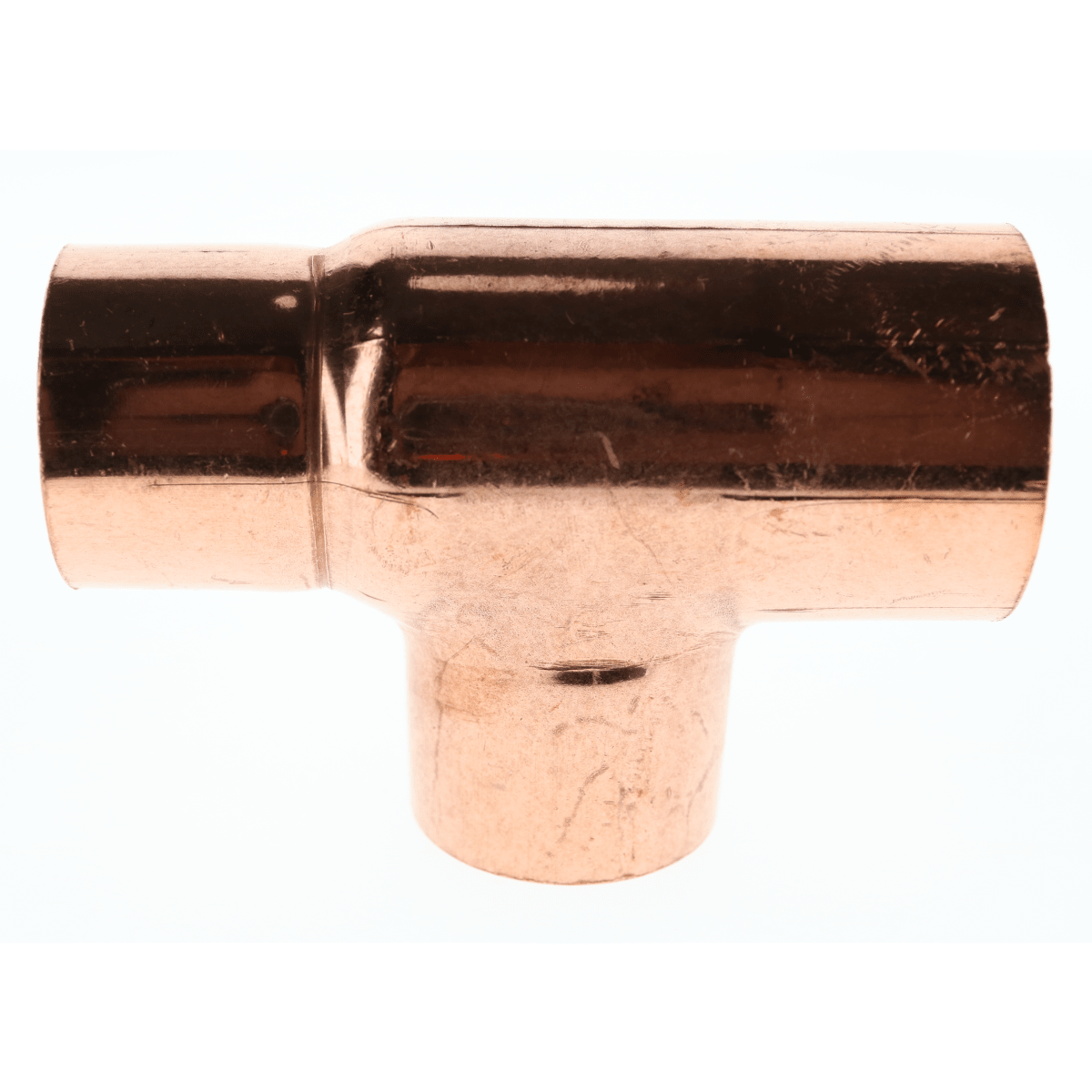

Mueller Streamline W 04095 Wrot Copper Reducing Tee 1-1/2 x 1 x 1-1/2 (C x C x C)

Product Description

The Mueller Streamline W 04095 is a WT-600R wrot copper reducing tee with C x C x C cup (female solder) connections, nominally sized 1-1/2 x 1 x 1-1/2 inch for solder-joint piping systems used in above-ground potable water supply and plumbing applications. The fitting is manufactured from UNS C12200 lead-free copper to ASTM B88/B280 and is intended for pressurized supply systems.

• Lead-free wrot copper construction (UNS C12200) with cup (female solder) connections on all three ports (C x C x C).
• Nominal size 1-1/2 x 1 x 1-1/2 inch, model WT-600R; tube outside diameters 1-5/8 x 1-1/8 x 1-5/8 inch.
• Meets NSF/ANSI 61G and ASME B16 series standards; rated to 700 psi working pressure and 250 F maximum temperature.

Product Highlights

Lead-free wrot copper reducing tee WT-600R, 1-1/2 x 1 x 1-1/2 inch, C x C x C cup ends; 700 psi, 250 F; ASTM B88/B280 and NSF/ANSI 61G compliant.

Product Information

Standard Information

• Brand: MUELLER STREAMLINE
• Manufacturer Part Number: W 04095
• Country of Origin: United States

Technical Specifications

• Brand: Mueller Streamline
• MPN: W 04095
• Model/Series: WT-600R
• Type: Reducing tee
• Nominal Size: 1-1/2 x 1 x 1-1/2 inch
• Connection Type: C x C x C (cup, female solder)
• Material: Wrot copper (UNS C12200)
• Material Specification: ASTM B88/B280
• Process: Wrot
• Manufacturer: Mueller Streamline
• Application: Above-ground potable water supply systems, plumbing, mechanical
• Standards/Approvals: NSF/ANSI 61G; ASME B16.15; ASME B16.18; ASME B16.22; ASME B16.24; ASME B16.29; ASME B16.50; ASME B1.20.1; MSS SP104
• Working Pressure: 700 psi
• Maximum Temperature: 250 F
• Overall Length: 4.67 in
• Overall Width: 1.73 in
• Overall Height: 2.80 in
• Tube Outside Diameter: 1-5/8 x 1-1/8 x 1-5/8 inch (tube OD)
• Weight: 0.68 lb
• Series/Model: WT-600R
• Material UNSPSC Code: 40183102
• UPC: 685768210689
