Mueller Streamline W 04082 1 x 1 x 1-1/4 C Tee (1 x 1 x 1-1/4 in)

Product Description

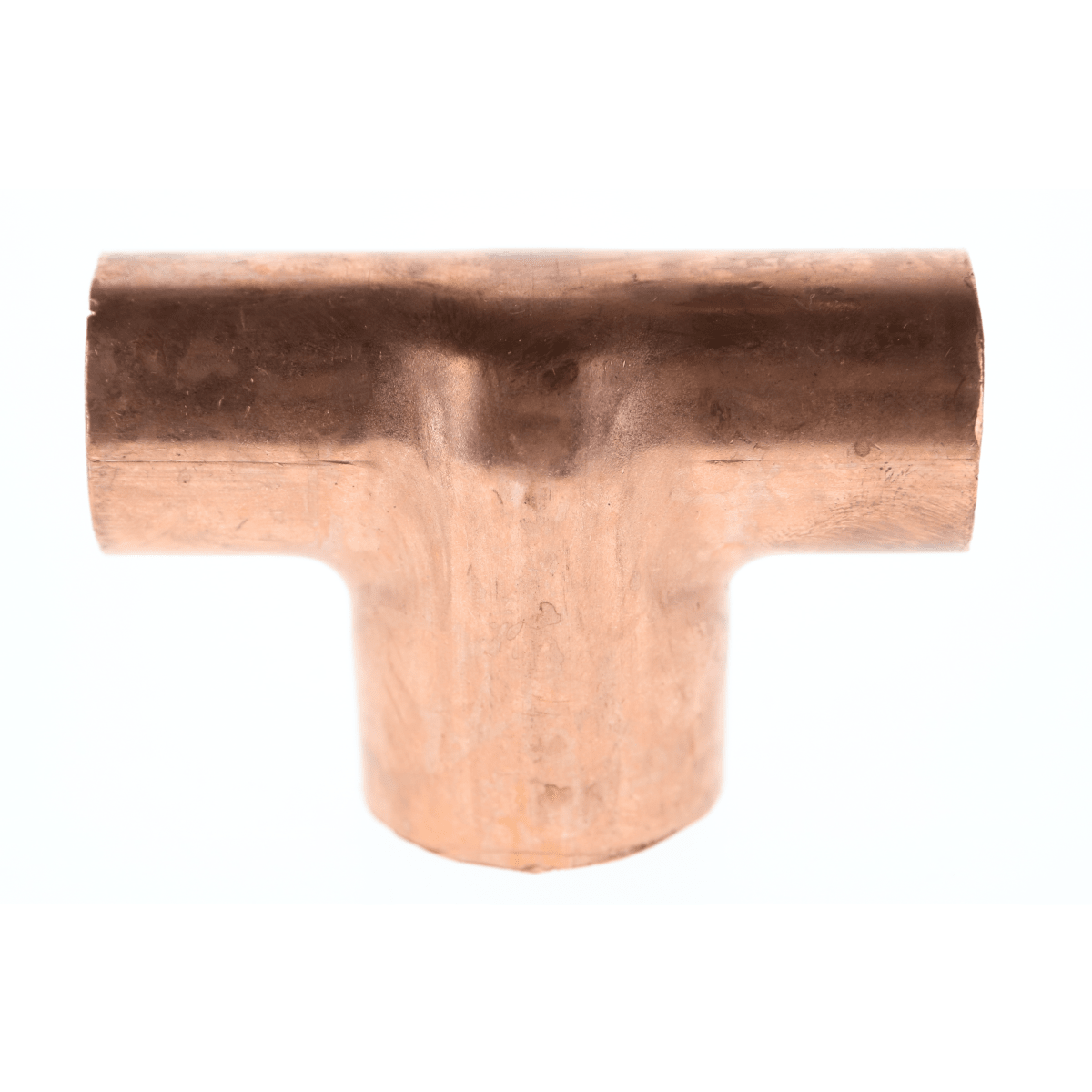

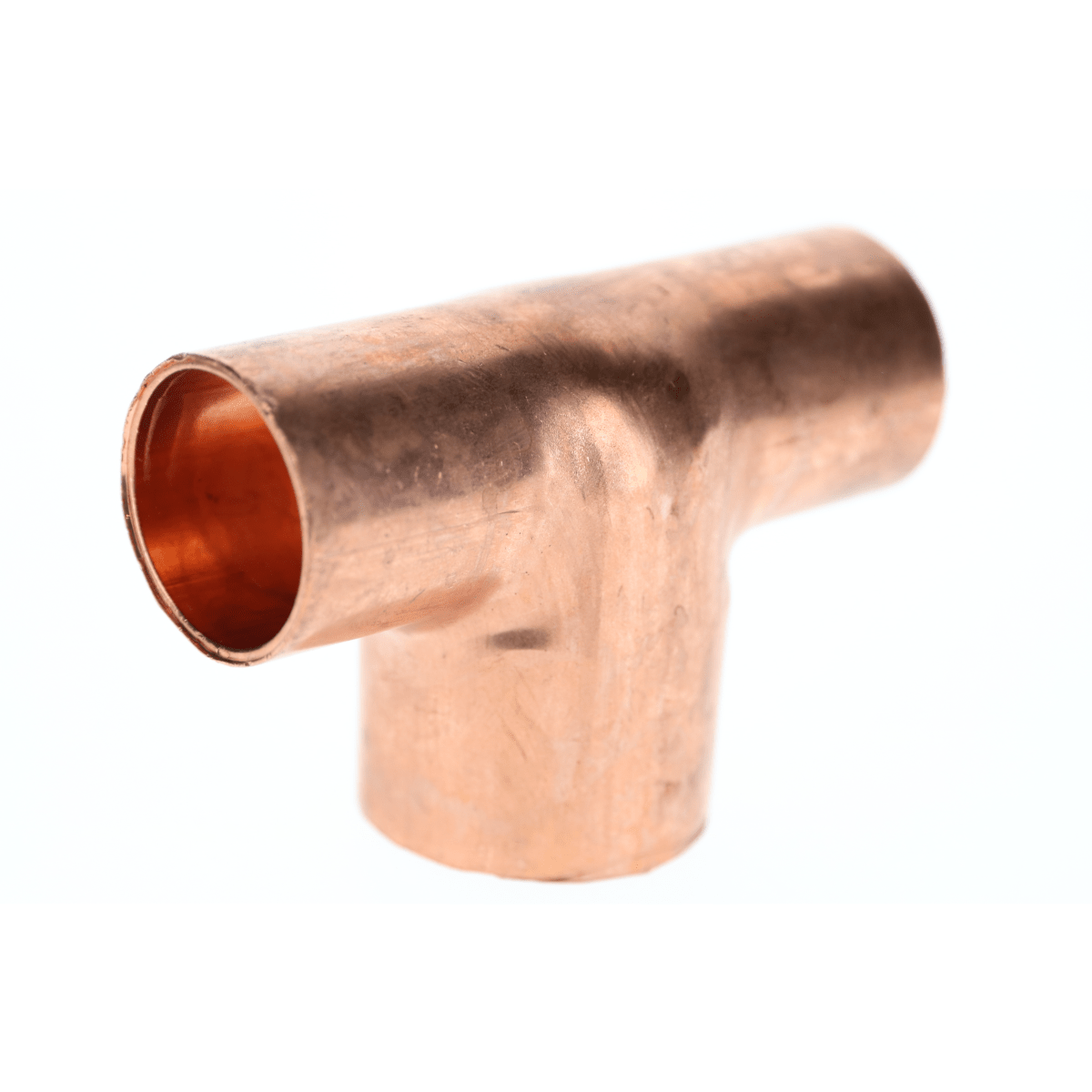

The Mueller Streamline W 04082 is a wrot copper reducing tee with C x C x C solder-joint (cup) ends sized 1 x 1 x 1-1/4 inches for above-ground potable water supply systems. It has an outside diameter of 1-1/8 x 1-1/8 x 1-3/8 inches and a 700 psi pressure rating. The fitting is made to applicable ASME standards and meets NSF 61G for potable water service.

• Nominal size: 1 x 1 x 1-1/4 in; OD: 1-1/8 x 1-1/8 x 1-3/8 in
• Connection type: C x C x C cup (female solder) ends; solder-joint pressure fitting
• Pressure rating: 700 psi; standards include ASME B16.15, B16.18, B16.22, B16.24, B16.50, B1.20.1 and NSF 61G

Product Highlights

Wrot copper reducing tee, 1 x 1 x 1-1/4 in nominal, C x C x C solder-joint connections, 700 psi, ASME and NSF 61G compliant

Product Information

Standard Information

• Brand: MUELLER STREAMLINE
• Manufacturer Part Number: W 04082
• Country of Origin: Domestic

Technical Specifications

• Brand: Mueller Streamline
• Manufacturer: Mueller Industries
• Manufacturer Part Number: W 04082
• Model/Series: WT-600
• Product Type: Reducing tee
• Nominal Size: 1 x 1 x 1-1/4 in
• Connection Type: C x C x C (cup/female solder, solder-joint)
• Material: Wrot copper or bronze
• Pressure Rating: 700 psi
• Standards/Approvals: ASME B16.15; ASME B16.18; ASME B16.22; ASME B16.24; ASME B16.50; ASME B1.20.1; NSF 61G (NSF/ANSI 61 Annex G); MSS SP104
• Outer Diameter (OD): 1-1/8 x 1-1/8 x 1-3/8 in
• Overall Dimensions (L x H x W): 3.30 x 2.19 x 1.21 in
• Weight: 0.31 lb
• End Type: Cup (female solder)
• Form/Style: Wrot (WT-600 / WT-600R reducing)
• Application: Above-ground potable water supply systems; plumbing and mechanical pressurized supply applications
• UOM: EA
