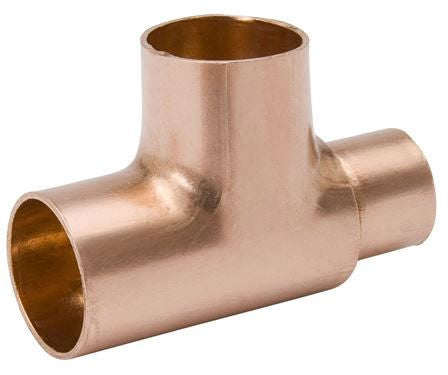

Mueller Streamline W 04071 Tee Reducing 1-1/4 x 1-1/4 x 1/2

Product Description

Mueller Streamline W 04071 is a reducing tee fitting made of wrot copper with female solder (cup) connections sized 1-1/4 x 1-1/4 x 1/2. The fitting is intended for above-ground potable water supply systems and HVACR, has a pressure rating of 700 PSI and a temperature rating of 250 Deg F, and is manufactured to applicable ASME and NSF standards.

• Wrot copper construction with female solder (cup) ends, nominal size 1-1/4 x 1-1/4 x 1/2
• Pressure rating 700 PSI and temperature rating 250 Deg F for supply and HVACR applications
• Meets ASME standards and NSF 61G; lead-free construction; CAD/Revit models and technical submittals available

Product Highlights

Reducing wrot copper tee with female solder ends; 700 PSI; meets ASME and NSF 61G

Product Information

Standard Information

• Brand: MUELLER STREAMLINE
• Manufacturer Part Number: W 04071

Technical Specifications

• Manufacturer: Mueller Streamline
• Manufacturer Part Number: W04071
• Catalog Number: W 04071
• Model/Series: WT-600
• Product Name: Tee Fitting (Reducing)
• Type: Reducing
• Nominal Size: 1-1/4 Inch x 1-1/4 Inch x 1/2 Inch
• Outer Diameter: 1-3/8 Inch x 1-3/8 Inch x 5/8 Inch
• End Connection: Female solder (cup) x female solder (cup) x female solder (cup)
• End Type: C - Cup (Female Solder)
• Material: UNS C12200 copper (wrot)
• Material Specification: ASTM B75/B88/B280
• Process: Wrot
• Pressure Rating: 700 PSI
• Temperature Rating: 250 Deg F
• Application: Potable water supply systems; HVACR; above-ground use
• Standards: UL (Canada and US); ASME B16.15; ASME B16.18; ASME B16.22; ASME B16.24; ASME B16.50; ASME B1.20.1; MSS SP104; NSF 61G
• Weight: 0.32 lb
• Dimensions: Overall length 2.74 in x overall height 1.95 in x overall width 1.47 in
• Features: Lead-Free; CAD/Revit models and technical submittals available
• UNSPSC Code: 40183102
• UPC: 685768210429
