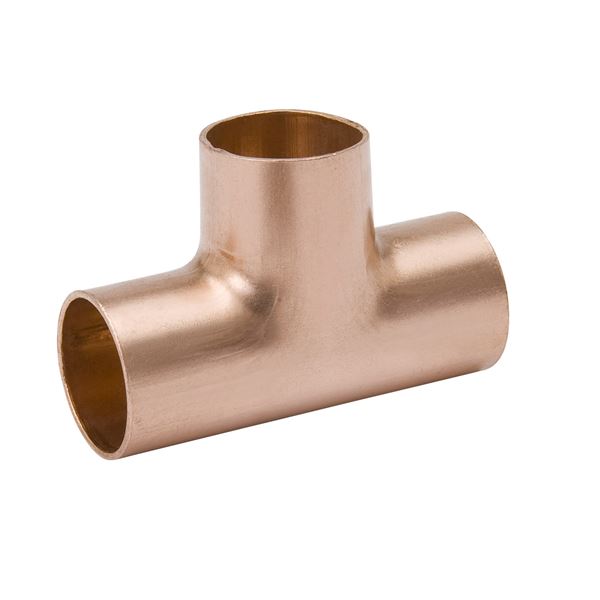

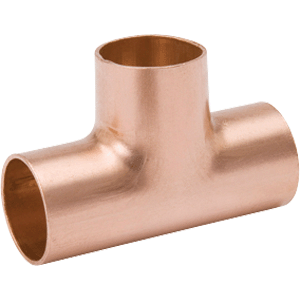

Mueller Streamline W 04068 Tee C x C x C 1-1/4 (WT-600)

Product Description

The Mueller Streamline W 04068 is a WT-600 series copper solder-joint tee (C x C x C) for above-ground potable water supply systems. It is constructed of wrot copper with cup (female solder) ends on all three ports sized 1-1/4. The fitting meets NSF 61G and multiple ASME standards and has compact dimensions of 3.40 in L x 2.43 in H x 1.47 in W and a weight of 0.42 lb.

• Wrot copper construction with cup (female solder) ends on all three ports
• End size: 1-1/4 inch; Model/Style: WT-600; Manufacturer part number W 04068
• Meets NSF 61G and ASME standards (B16.15, B16.18, B16.22, B16.24, B16.50, B1.20.1); dimensions 3.40 in L x 2.43 in H x 1.47 in W

Product Highlights

WT-600 copper solder-joint tee, 1-1/4 C x C x C, wrot copper, cup ends, NSF 61G and ASME compliant

Product Information

Standard Information

• Brand: MUELLER STREAMLINE
• Manufacturer Part Number: W 04068

Technical Specifications

• Brand: Mueller Streamline
• Manufacturer Part Number: W 04068
• Model: WT-600
• Product Name: Tee, C x C x C
• Material: Wrot copper
• End Type: Cup (female solder) on all ports
• End Size: 1-1/4 in
• Standards: NSF 61G; ASME B16.15; ASME B16.18; ASME B16.22; ASME B16.24; ASME B16.50; ASME B1.20.1
• Overall Length: 3.40 in
• Overall Height: 2.43 in
• Overall Width: 1.47 in
• Weight: 0.42 lb
• Typical Use: Above-ground potable water supply systems
• Operating Temperature: See CDA-Copper-Fitting-Pressue-Temp-Ratings
• Operating Pressure: See CDA-Copper-Fitting-Pressue-Temp-Ratings
