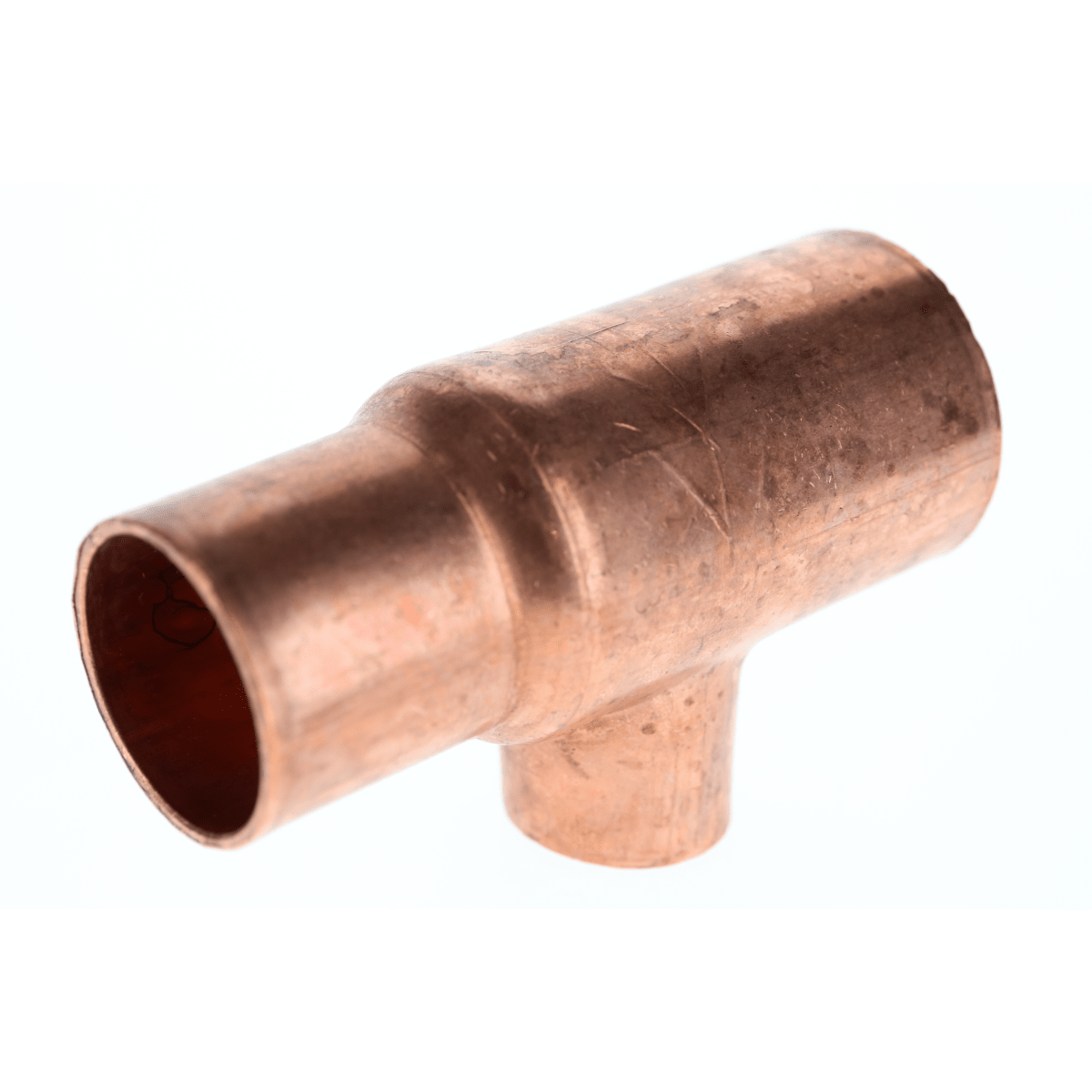

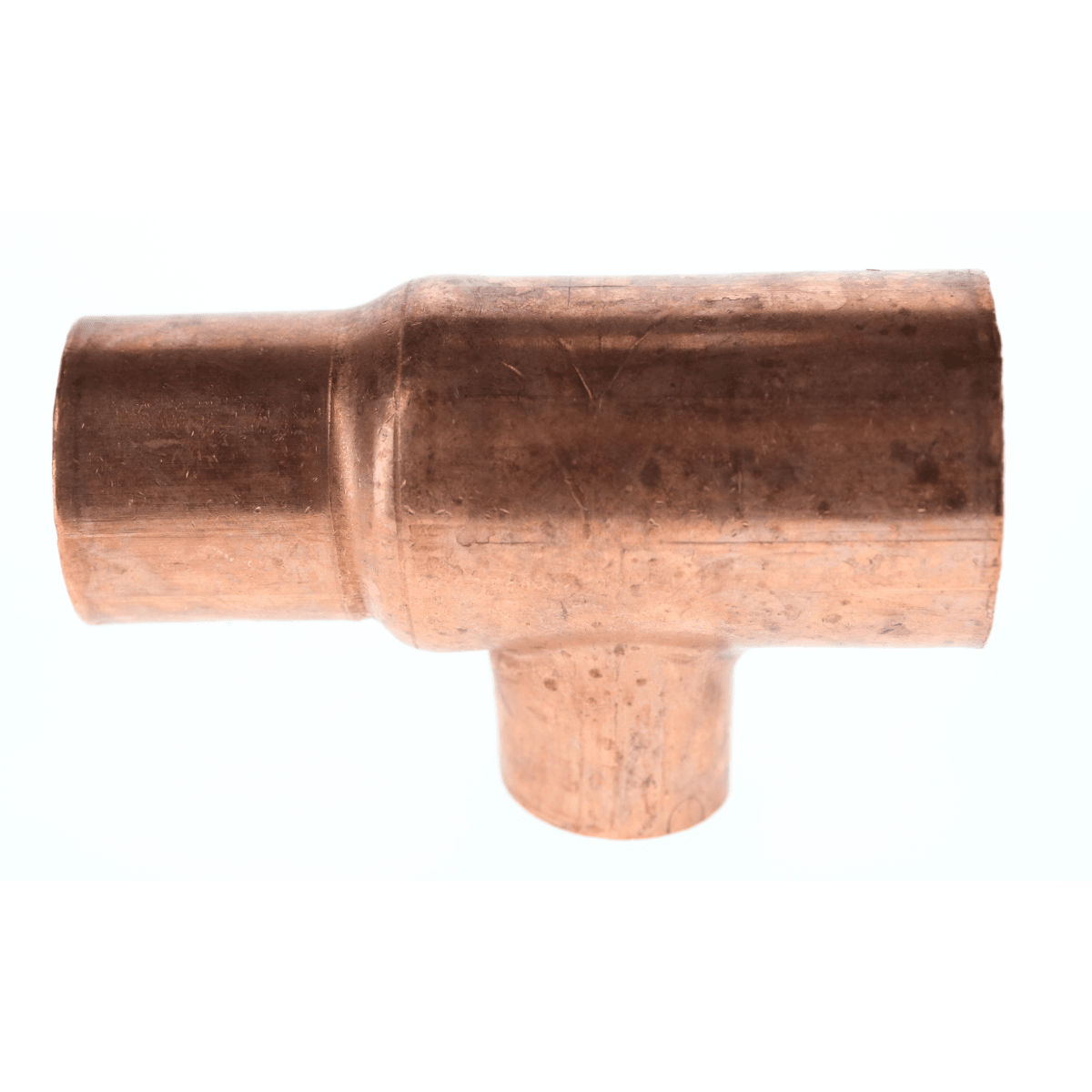

Mueller Streamline W 04056 1 C x 3/4 C x 3/4 C Tee (1 x 3/4 x 3/4 in)

Product Description

The Mueller Streamline W 04056 is a reducing copper sweat tee (C x C x C) for joining 1" and 3/4" copper tubing in plumbing and potable water supply systems. Constructed of wrot copper, the fitting is a solder-joint tee that meets applicable ASME standards and NSF 61G. Select sizes are third-party verified by UL for 700 psi at 250°F. Typical use includes above-ground supply and pressurized systems.

• Material: wrot copper; connection type: C x C x C (female solder cups) for solder/sweat installation
• Standards/Approvals: ASME B16.15, B16.18, B16.22, B16.24, B16.50, B1.20.1; NSF 61G; select sizes UL verified
• Size and dimensions: nominal 1 x 3/4 x 3/4 in; overall length 3.31 in, height 2.01 in, width 1.21 in; weight 0.30 lb

Product Highlights

Reducing copper solder-joint tee (model WT-600R) for above-ground potable water and plumbing systems; 1" x 3/4" x 3/4" C x C x C; rated for up to 700 psi at 250°F where verified; conforms to ASME and NSF 61G.

Product Information

Standard Information

• Brand: MUELLER STREAMLINE
• Manufacturer Part Number: W 04056
• Country of Origin: Domestic

Technical Specifications

• Brand: Mueller Streamline
• Manufacturer Part Number: W 04056
• Model / Style: WT-600R
• Product Type: Reducing tee / Copper sweat fitting
• Connection Type: C x C x C (female solder cup)
• Size: 1 x 3/4 x 3/4 in
• Nominal Size: 1 x 3/4 x 3/4 in
• Material: Wrot copper
• End Type: C - Cup (Female Solder)
• Pressure Rating: 700 psi (select sizes third-party verified)
• Temperature Rating: 250 deg F
• Weight: 0.30 lb
• Overall Length: 3.31 in
• Overall Height: 2.01 in
• Overall Width: 1.21 in
• Standards / Approvals: ASME B16.15; ASME B16.18; ASME B16.22; ASME B16.24; ASME B16.50; ASME B1.20.1; NSF 61G; UL recognized (select sizes)
• Typical Application: Above-ground potable water supply and pressurized plumbing systems
• Unit of Measure: EA
• Alternate Part Number: COPF-100.075.075-TEE-C
