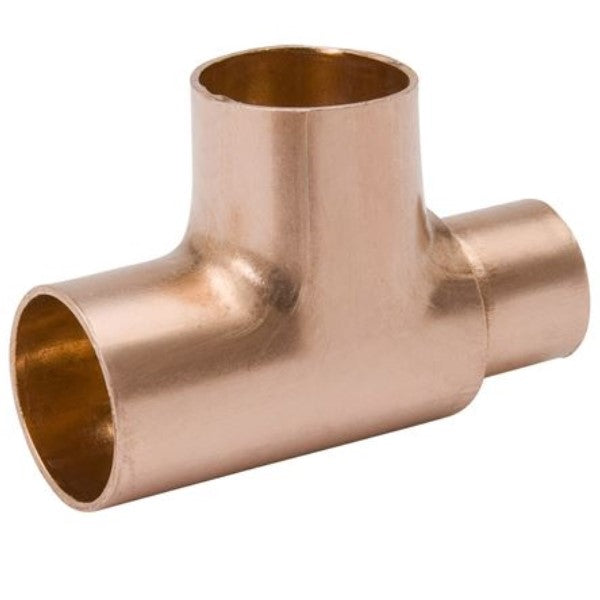

Mueller Streamline W 04049 Tee Reducing 1 in x 1 in x 3/4 in (WT-600R)

Product Description

Mueller Streamline W 04049 is a reducing tee solder-joint fitting in wrought copper intended for above-ground potable water supply systems. The fitting is nominally 1 in x 1 in x 3/4 in with female cup (C) solder ends and OD sizes of 1-1/8 in x 1-1/8 in x 7/8 in. It is manufactured to ASME, ASTM and MSS standards, meets NSF 61G, and is rated to 700 psi and 250°F for pressurized plumbing applications.

• Wrought copper reducing tee, nominal 1 in x 1 in x 3/4 in (OD 1-1/8 in x 1-1/8 in x 7/8 in).
• Female cup (C) solder ends (C x C x C) for solder-joint connections; WT-600R / WT-600 series.
• Meets ASME B16.15/B16.18/B16.22/B16.24/B16.50/B1.20.1, ASTM B75, MSS SP104, NSF 61G; pressure 700 psi, temperature 250°F.

Product Highlights

Reducing copper tee (C x C x C), nominal 1 x 1 x 3/4 in, OD 1-1/8 x 1-1/8 x 7/8 in; 700 psi/250°F; ASME/ASTM/MSS/NSF compliant.

Product Information

Standard Information

• Brand: MUELLER STREAMLINE
• Manufacturer Part Number: W 04049
• Country of Origin: US

Technical Specifications

• Brand: Mueller Streamline
• Manufacturer Part Number: W 04049
• Alternate Part Number: W04049, W 04049CB
• Product Name: Tee Reducing, C x C x C, 1 in x 1 in x 3/4 in
• Model/Style: WT-600R (WT-600 series)
• Fitting Type: Tee Reducing
• Material: Wrought copper
• Nominal Size: 1 in x 1 in x 3/4 in
• Connection Sizes OD: 1-1/8 in x 1-1/8 in x 7/8 in
• End Type: C - Cup (Female solder)
• End Style: C
• Pressure Rating: 700 psi
• Temperature Rating: 250 deg F
• Standards: ASME B16.15; ASME B16.18; ASME B16.22; ASME B16.24; ASME B16.50; ASME B1.20.1; ASTM B75; MSS SP104; NSF 61G; UL Recognized
• Overall Length: 2.62 in
• Overall Height: 1.64 in
• Overall Width: 1.21 in
• Country of Origin: US
• UPC: 685768210221; 685768232377
• Intended Use: For use in above-ground potable water supply systems
• Series-Brand: Streamline
