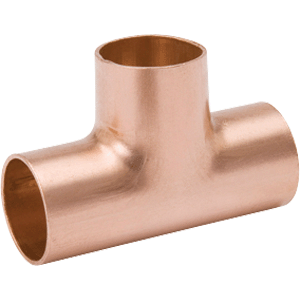

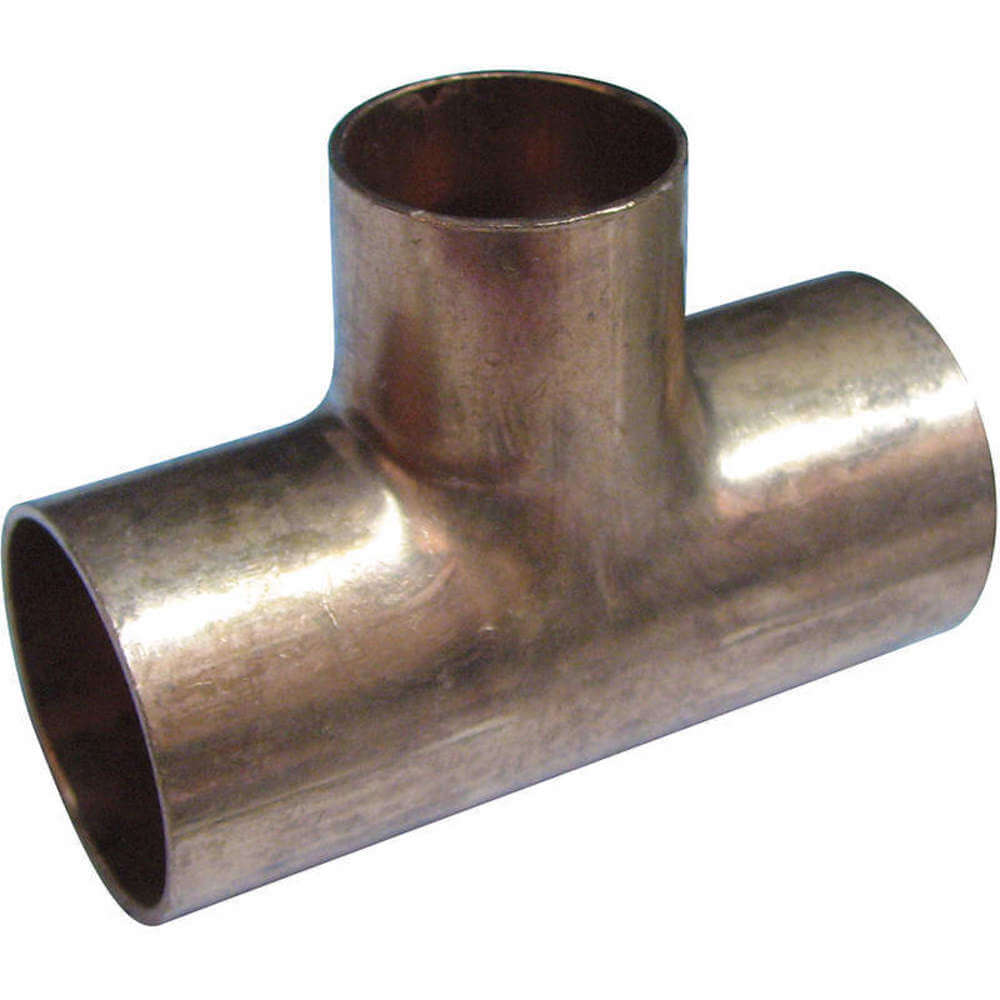

Mueller Streamline W 04034 Tee Reducing C x C x C (3/4 inches x 3/4 inches x 3/8 inches)

Product Description

Mueller Streamline W 04034 is a wrot copper reducing tee (WT-600R) with cup (female solder) connections sized 3/4" x 3/4" x 3/8" for above-ground potable water and HVACR systems. The compact fitting has an overall length of 2.04 in and weight of 0.11 lb, and is rated to 582 psi at 100°F with an operating temperature range of -20°F to +400°F. Tube outside diameters are 7/8" x 7/8" x 1/2".

• Wrot copper construction with cup (female solder) ends for potable water and HVACR piping; meets NSF 61G and applicable ASME standards.
• Reducing tee configuration WT-600R, connection sizes 3/4" x 3/4" x 3/8" (tube OD 7/8" x 7/8" x 1/2").
• Rated max operating pressure 582 psi at 100°F; operating temperature range -20°F to +400°F; overall length 2.04 in; item weight 0.11 lb.

Product Highlights

Wrot copper reducing tee with cup ends, 3/4" x 3/4" x 3/8" size, 582 psi @ 100°F rating, conforms to NSF 61G and ASME B16 standards.

Product Information

Standard Information

• Brand: MUELLER STREAMLINE
• Manufacturer Part Number: W 04034
• Country of Origin: US

Technical Specifications

• Brand: Mueller Streamline
• Manufacturer Part Number: W 04034
• Model / Style: WT-600R
• Product Type: Reducing Tee
• Size: 3/4" x 3/4" x 3/8"
• Connection Type: Cup (female solder)
• Connection Sizes: 3/4" x 3/4" x 3/8"
• Tube Outside Diameter: 7/8" x 7/8" x 1/2"
• Material: Wrot copper
• Form: Wrot
• Series: Streamline
• Application: Potable water; HVACR supply/pressurized systems
• Max Operating Pressure: 582 psi @ 100°F
• Operating Temperature Range: -20°F to +400°F
• Overall Length: 2.04 in
• Overall Height: 1.35 in
• Overall Width: 0.94 in
• Weight: 0.11 lb
• End Type: C - Cup (Female Solder)
• Standards: NSF 61G; ASME B16.15; ASME B16.18; ASME B16.22; ASME B16.24; ASME B16.50; ASME B1.20.1
• Country of Origin: US
• HS Code: 7412100000
• Alternate Part Numbers: MBCW4034, W04034, W4034, WT600R7/8X7/8X1/2
