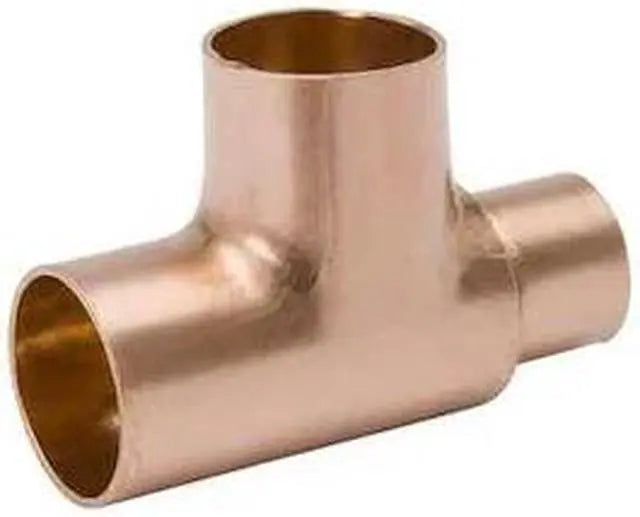

Mueller Streamline W 04004 Tee Fitting 3/8 Inch x 1/4 Inch x 1/4 Inch

Product Description

The MUELLER STREAMLINE W 04004 Tee Fitting is a reducing tee fitting with nominal size 3/8 Inch x 1/4 Inch x 1/4 Inch and female soldered end connections. Constructed from UNS C12200 copper, it conforms to material specifications ASTM B75/B88/B280. Suitable for potable water supply systems and HVACR applications, it has a pressure rating of 700 PSI and a temperature rating of 250 Deg F.

• Lead-Free
• Nominal Size 3/8 Inch x 1/4 Inch x 1/4 Inch
• Pressure Rating 700 PSI

Product Highlights

This copper tee fitting is ideal for plumbing and HVACR applications requiring a reliable, lead-free connection.

Product Information

Standard Information

• Brand: MUELLER STREAMLINE
• Manufacturer Part Number: W 04004

Technical Specifications

• Applicable Standard: UL (Canada and US), ASME B16.15/18/22/24/50/B1.20.1, MSS SPI04, NSF 61G
• Application: Potable Water Supply System, HVACR
• End Connection: Female Soldered x Female Soldered x Female Soldered
• Material: UNS C12200 Copper
• Material Specification: ASTM B75/B88/B280
• Nominal Size: 3/8 Inch x 1/4 Inch x 1/4 Inch
• Pressure Rating: 700 PSI
• Process: Wrot
• Temperature Rating: 250 Deg F
• Type: Reducing
• Manufacturer: Mueller Streamline
• End Style: C x C x C
• End Type: C - Cup (Female Solder)
• End Size: 3/8
• Second End Type: C - Cup (Female Solder)
• Second End Size: 1/4
• Third End Type: C - Cup (Female Solder)
• Third End Size: 1/4
• Standards: NSF 61G, ASME B16.15, ASME B16.18, ASME B16.22, ASME B16.24, ASME B16.50, ASME B1.20.1
• Overall Length: 1.41 in
• Overall Height: 0.87 in
• Overall Width: 0.55 in
• Style: WT-600R
• Fitting Side A Connection Type: Cup
• Fitting Side B Connection Type: Cup
• Fitting Side C Connection Type: Cup
• Fitting Side A Copper Tube Size: 3/8 in
• Fitting Side B Copper Tube Size: 1/4 in
• Fitting Side C Copper Tube Size: 1/4 in
• Fitting Material: Wrot Copper
• Includes Center Stop: Not Applicable
• Fitting Side A Tube Outer Diameter: 1/2 in
• Fitting Side B Tube Outer Diameter: 3/8 in
• Specific Fitting Shape: Reducing Tee
• Precleaned: Not Pre-Cleaned
