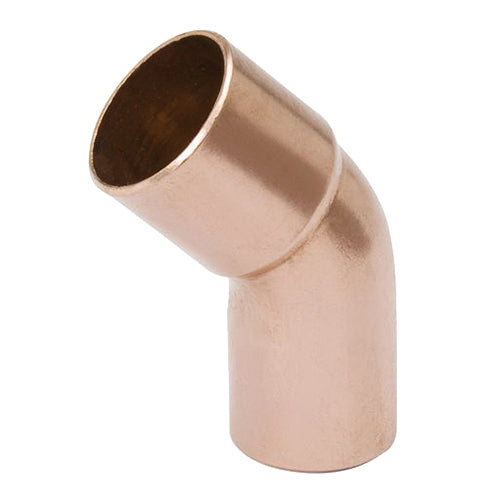

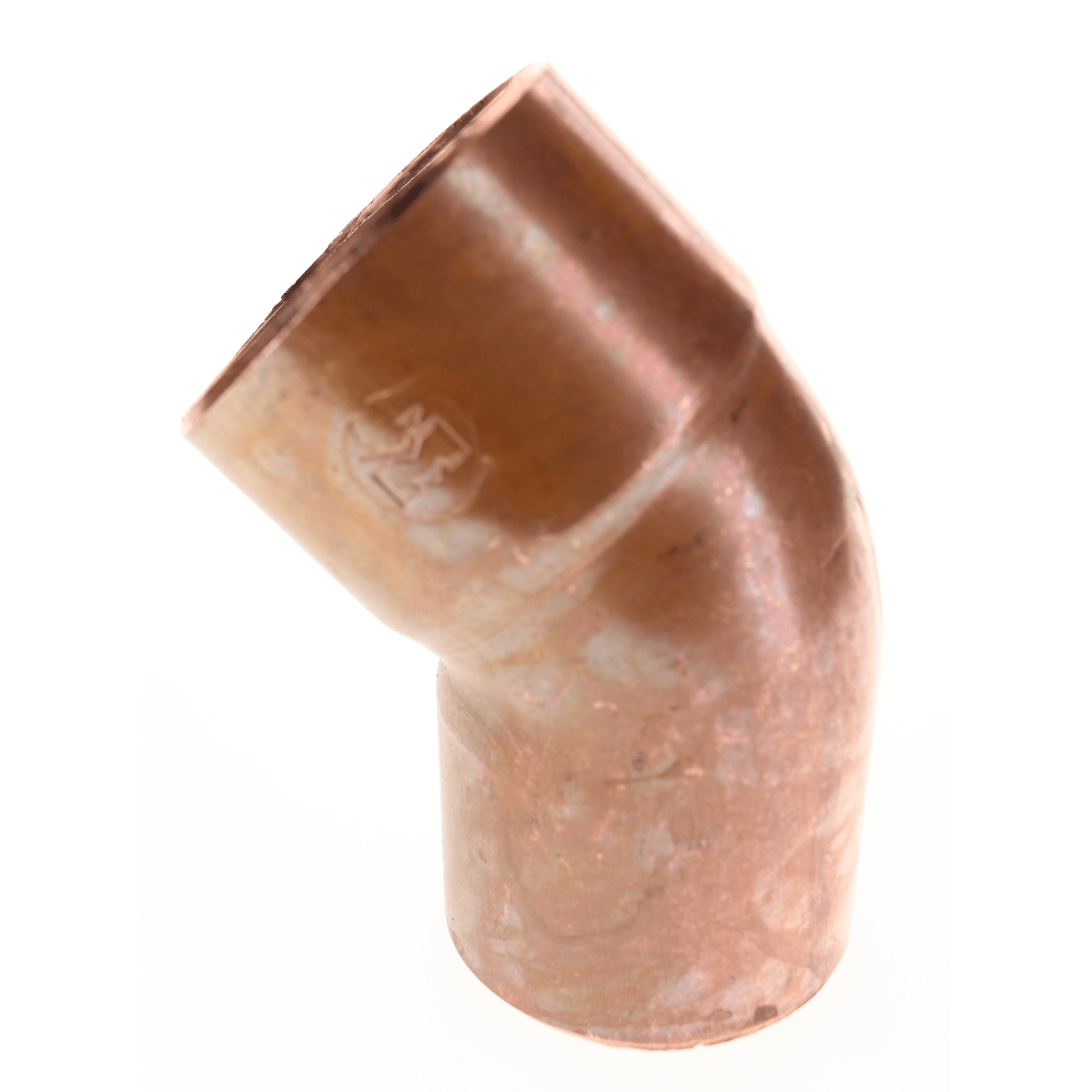

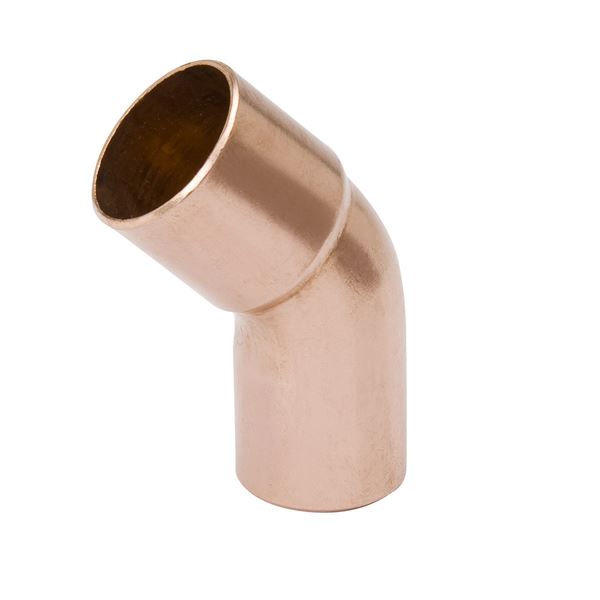

Mueller Streamline W 03368 45 Degree Street Elbow (3 in/45 deg)

Product Description

The Mueller Streamline W 03368 is a 45 degree street elbow copper fitting designed for 3 in nominal tubing used in above-ground potable water supply systems. It is constructed of domestic copper and is engineered for precision solder-joint connections. The fitting is rated for pressure service and conforms to multiple ASME standards as well as NSF 61-G for potable water applications.

• 45 degree street elbow, nominal 3 in, end style: fitting x C (female x capillary)
• Constructed of wrought copper (domestic); engineered for solder-joint connections; overall length approximately 5.50 in
• Pressure rated 700 psi; meets ASME B16.15, B16.18, B16.22, B16.24, B16.50, B1.20.1 and NSF 61-G

Product Highlights

45 degree copper street elbow, 3 in nominal, Ftg x C connection, 700 psi, ASME and NSF 61-G compliant

Product Information

Standard Information

• Brand: MUELLER STREAMLINE
• Manufacturer Part Number: W 03368
• Country of Origin: Domestic (United States)

Technical Specifications

• Brand: Mueller Streamline
• Manufacturer Part Number: W 03368
• Model: WE-505
• Product Type: 45 degree street elbow
• Material: Wrought copper
• Angle: 45 deg
• Nominal Size: 3 in
• End Style: Fitting x C (female x capillary)
• Connection Type: Ftg x C
• Pressure Rating: 700 psi
• Application: Above-ground potable water supply systems
• Standards/Certifications: NSF 61-G; ASME B16.15; ASME B16.18; ASME B16.22; ASME B16.24; ASME B16.50; ASME B1.20.1
• Overall Length: 5.50 in
• Overall Height: 4.53 in
• Overall Width: 3.28 in
• Item Weight: 1.52 lb
• UPC: 685768209669
• Series: Streamline
• Style: WE-505
• Alternate Part Numbers: 45S318, MBCWE505-3-1/8, ST45318, W03368
