Mueller Streamline W 03368 3 ftg x c 45 ell 3 inch 45 degree WE-505

Product Description

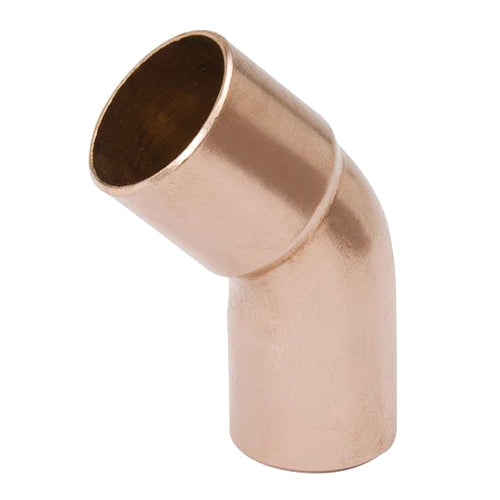

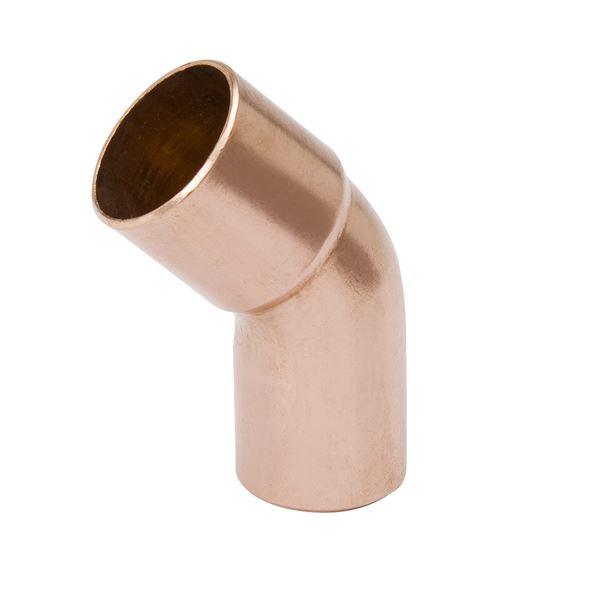

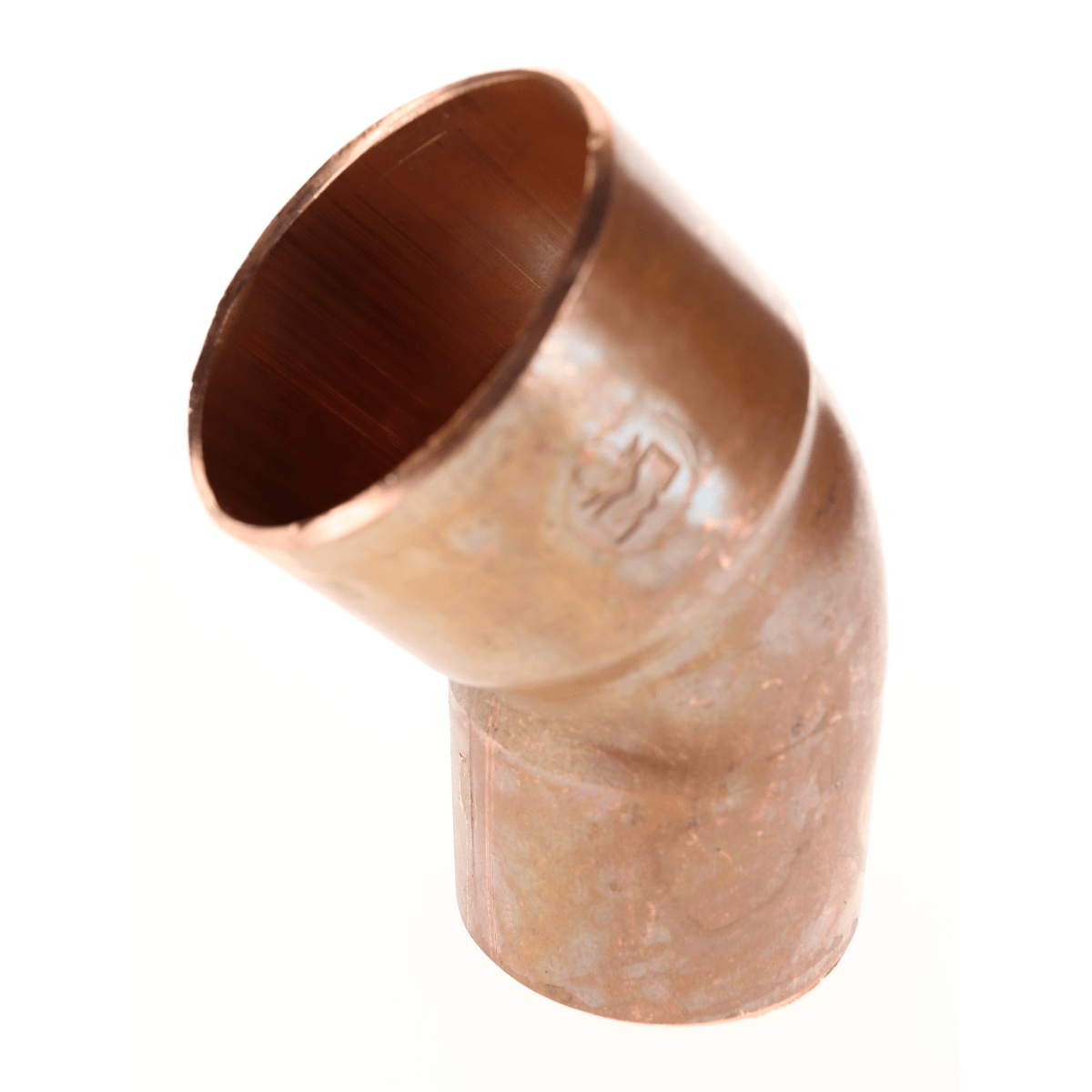

The Mueller Streamline W 03368 is a 45 degree street elbow designed for above-ground potable water supply systems. This 3-inch nominal copper fitting features a Fitting x C connection and is rated for 700 psi. It is constructed from wrot copper or bronze materials, ensuring durability and compliance with industry standards.

• Constructed of wrot copper or bronze materials for durability.
• Designed for above-ground potable water supply systems.
• Complies with ASME B16.15/B16.18/B16.22/B16.24/B16.50/B1.20.1 and NSF 61-G standards.

Product Highlights

This 45-degree copper street elbow provides a 3-inch nominal connection for pressurized water systems, offering a 700 psi pressure rating.

Product Information

Standard Information

• Brand: MUELLER STREAMLINE
• Manufacturer Part Number: W 03368
• Country of Origin: USA

Technical Specifications

• Material: Wrot Copper
• End Style: Fitting x C
• Manufacturer: Mueller Streamline
• Nominal Size: 3 in
• Domestic/Import: Domestic
• Pressure Rating: 700 psi
• Fitting/Connector Type: 45 deg Elbow
• Angle: 45 deg
• Connection Type: Male Solder Fitting x Female Solder Cup
• Overall Length: 5.5 in
• Model: WE-505
• Standards: ASME B16.15, B16.18, B16.22, B16.24, B16.50, B1.20.1, NSF 61G
• Overall Height: 4.53 in
• Overall Width: 3.28 in
• Series: Streamline
