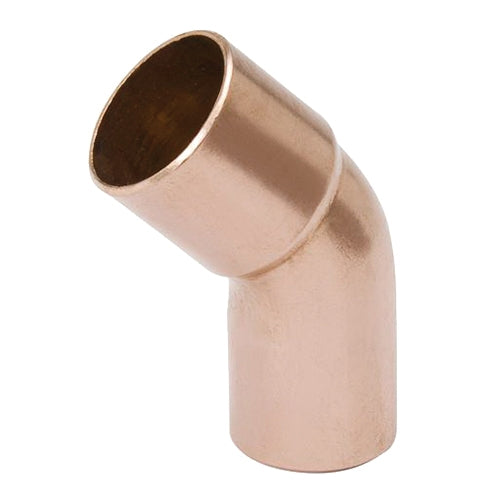

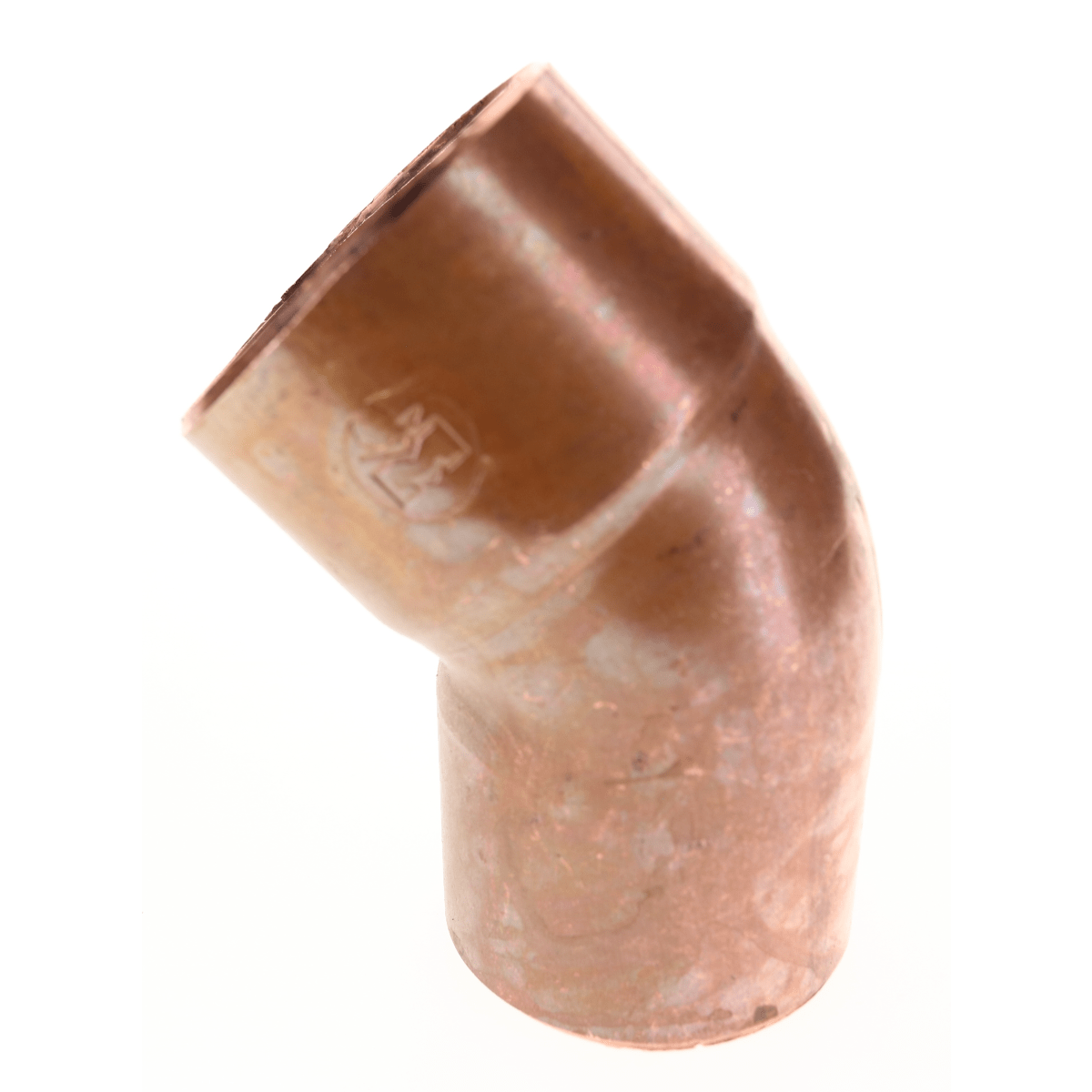

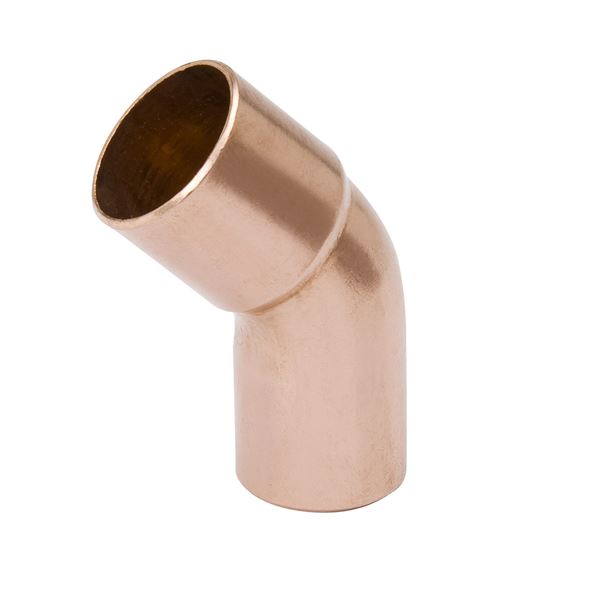

Mueller Streamline W 03363 2-1/2 Ftg x C 45 Ell (2-1/2 in/45 deg)

Product Description

Mueller Streamline W 03363 is a 45 degree street elbow (FTG x C) designed for solder-joint copper piping, providing a male fitting to female cup solder connection in above-ground potable water and pressurized plumbing systems. The 2-1/2 inch nominal fitting is constructed of copper and is pressure rated to 700 psi, with an overall length of 5.05 in for compact directional changes.

• 45° street elbow with FTG x C end style for soldered (sweat) copper joints
• Nominal size 2-1/2 in; overall length 5.05 in; weight 1.05 lb; pressure rated 700 psi
• Constructed of copper and certified to NSF 61G and ASME standards (B16.15, B16.18, B16.22, B16.24, B16.50, B1.20.1)

Product Highlights

45° copper street elbow, 2-1/2 in FTG x C connection, 700 psi rating, ASME and NSF 61G certified for above-ground potable water systems

Product Information

Standard Information

• Brand: MUELLER STREAMLINE
• Manufacturer Part Number: W 03363
• Country of Origin: Domestic

Technical Specifications

• Brand: Mueller Streamline
• MPN: W 03363
• Model: WE-505
• Item Name: 45 Degree street elbow
• Size: 2-1/2 in
• Angle: 45 deg
• Connection Type: FTG x C (male solder fitting x female solder cup)
• Material: Copper
• Pressure Rating: 700 psi
• Standards/Certifications: NSF 61G; ASME B16.15; ASME B16.18; ASME B16.22; ASME B16.24; ASME B16.50; ASME B1.20.1
• Applications: Above-ground potable water supply systems; pressurized plumbing systems
• Overall Length: 5.05 in
• Overall Height: 3.98 in
• Overall Width: 2.75 in
• Weight: 1.05 lb
• UOM: EA
• Alternate Part Number: COPF-250-ST45-C
