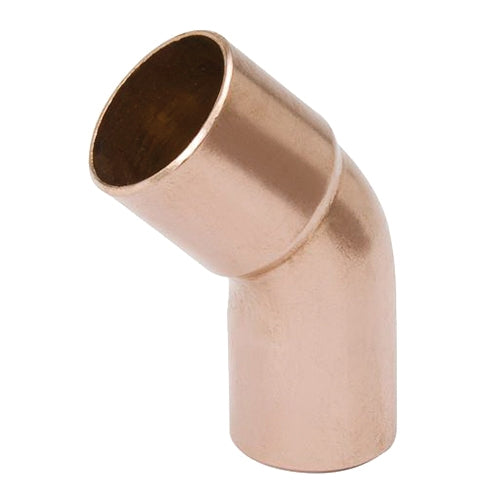

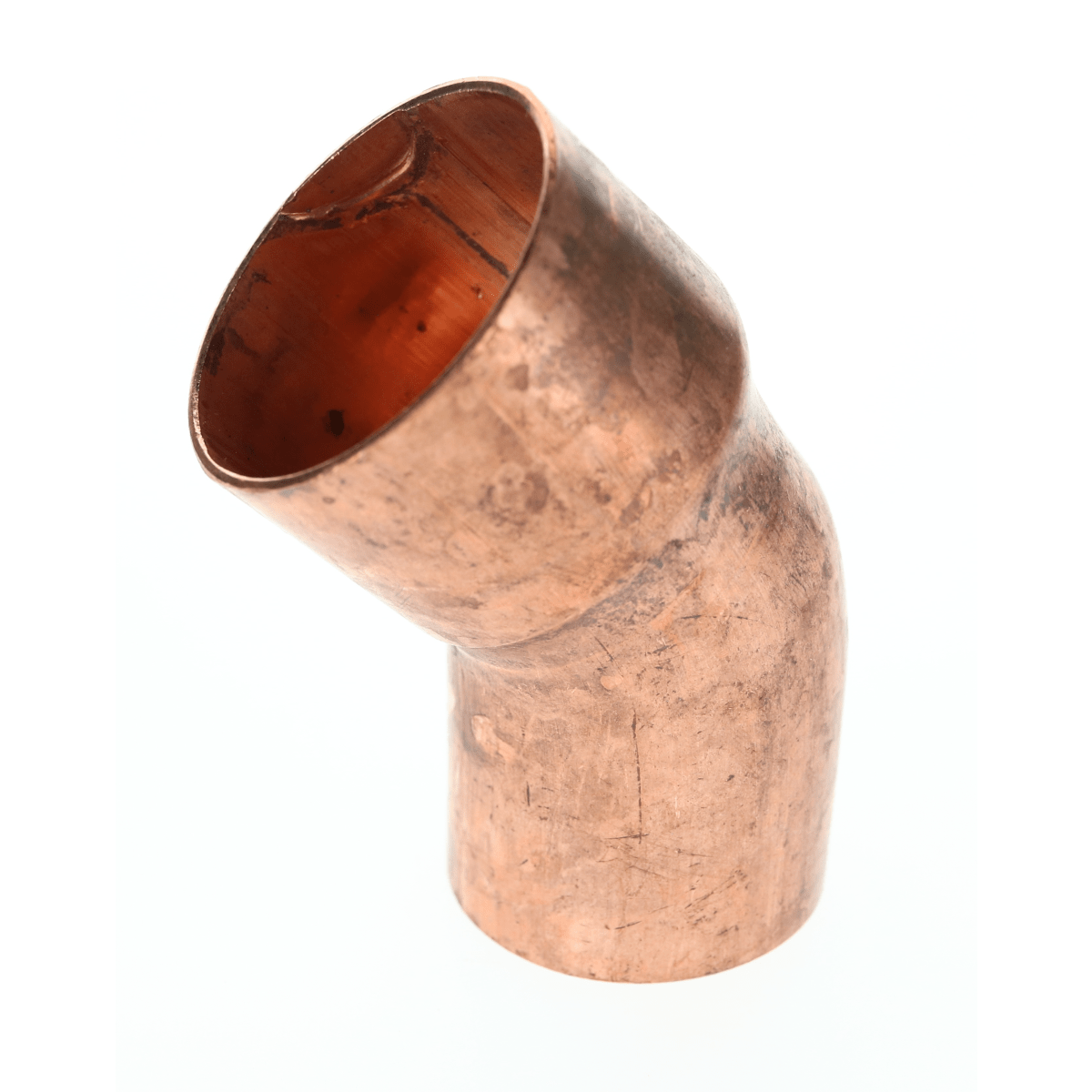

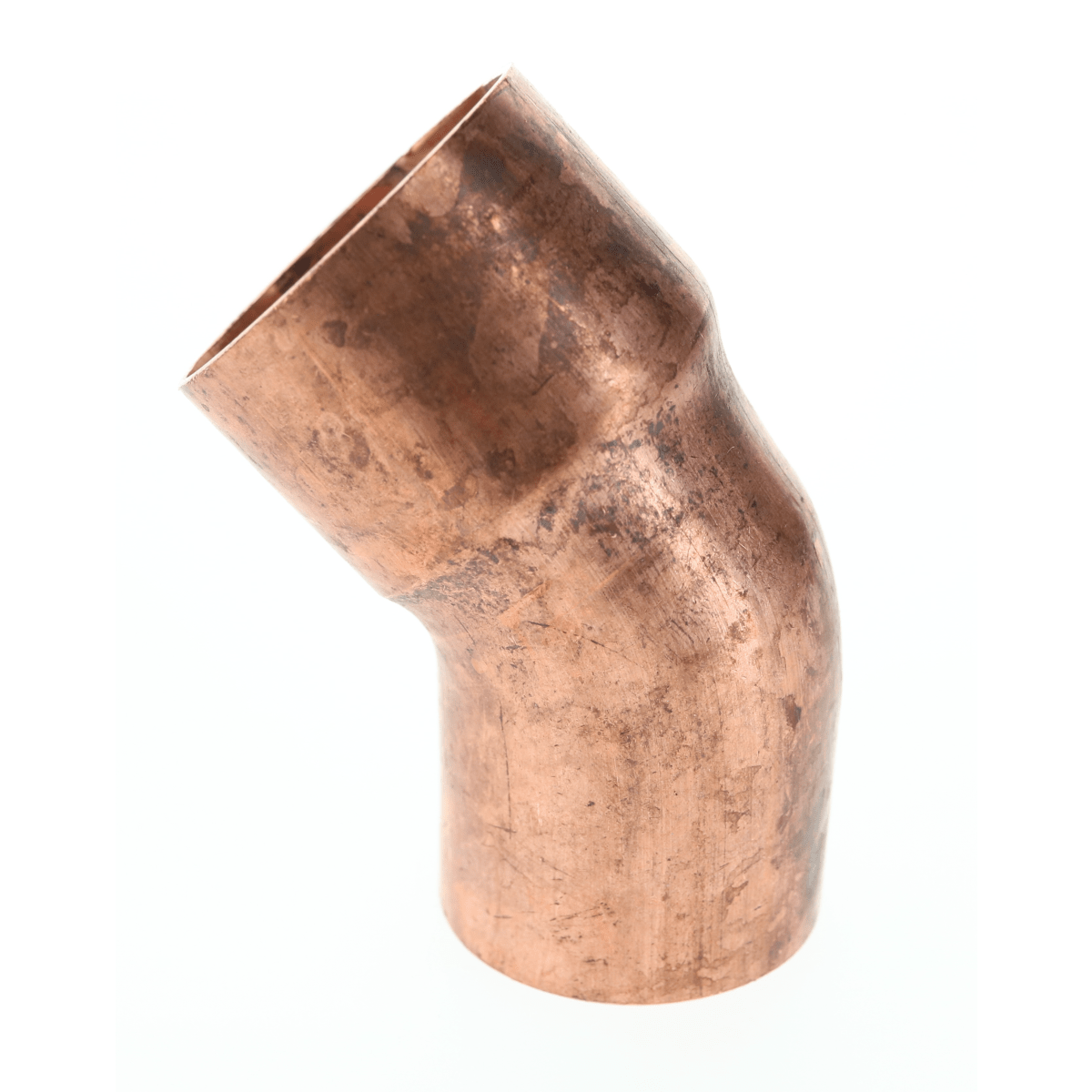

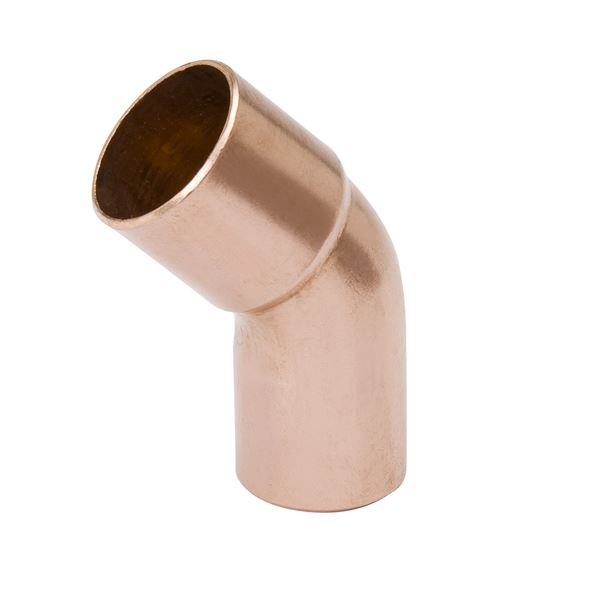

Mueller Streamline W 03355 1-1/2 Copper Street 45 Degree Elbow (1-1/2 in / 45 deg)

Product Description

Mueller Streamline W 03355 is a WE-505 series 45 degree copper street elbow with 1-1/2 in connection size for solder-joint piping. It provides a male solder fitting x female solder cup configuration in wrot copper UNS C12200 and meets ASTM B75/B88/B280. The fitting is rated for 700 PSI at 250 deg F and is lead-free for use in potable water supply and HVACR systems.

• 45 degree street elbow, 1-1/2 in connections, male solder fitting x female solder cup
• Wrot copper construction (UNS C12200) to ASTM B75/B88/B280; lead-free
• Pressure rating 700 PSI at 250 deg F; conforms to ASME B16.15/B16.18/B16.22/B16.24/B16.50/B1.20.1 and NSF 61G

Product Highlights

Compact WE-505 45 degree solder-joint street elbow for 1-1/2 in copper piping; potable water and HVACR applications.

Product Information

Standard Information

• Brand: MUELLER STREAMLINE
• Manufacturer Part Number: W 03355
• Country of Origin: Domestic

Technical Specifications

• Brand: Mueller Streamline
• Manufacturer Part Number: W 03355
• Model / Series: WE-505
• Type: Street elbow (solder-joint)
• Angle: 45 degree
• Connection Size: 1-1/2 in
• End Connection: Male solder fitting x female solder cup (FTG x C)
• Material: Wrot copper (UNS C12200)
• Material Specification: ASTM B75 / B88 / B280
• Process: Wrot
• Pressure Rating: 700 PSI
• Temperature Rating: 250 deg F
• Lead-Free: Yes
• Outer Diameter: 1-5/8 in
• Overall Length: 3.68 in
• Overall Height: 2.90 in
• Overall Width: 1.74 in
• Weight: 0.33 lb
• Standards / Certifications: ASME B16.15; ASME B16.18; ASME B16.22; ASME B16.24; ASME B16.50; ASME B1.20.1; MSS SP104; NSF 61G; UL (select sizes)
• Applications: Potable water supply systems, HVACR, solder-joint copper piping
• Style: WE-505 street elbow
• Nominal Size: 1-1/2 in
• End Style: Fitting x C (male solder x female solder)
