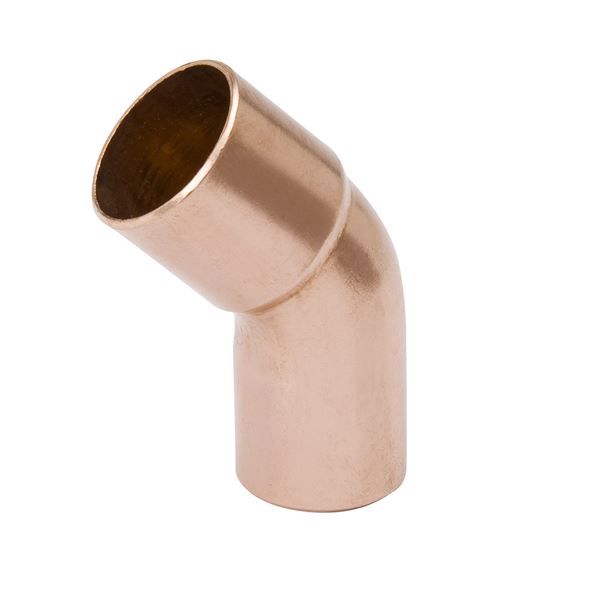

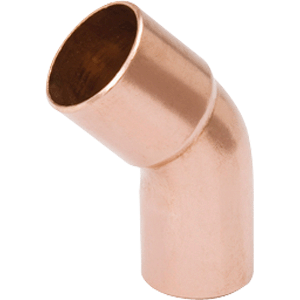

Mueller Streamline W 03334 3/4 Ftg x C 45 Ell (45 Degree) WE-505

Product Description

Mueller Streamline W 03334 is a 45 degree street elbow solder-joint fitting used in above-ground potable water supply systems. The fitting is made of wrought copper (or bronze where specified) with a nominal 3/4 in connection size and a 7/8 in outside diameter; it is rated for 700 psi and manufactured to ASME B16 and related standards with NSF 61-G certification.

• 45 degree street elbow with FTG x C end style for soldered connections and nominal 3/4 in size
• Constructed of wrought copper or bronze with 7/8 in outside diameter and 700 psi pressure rating
• Meets ASME B16.15/B16.18/B16.22/B16.24/B16.50/B1.20.1 standards and certified to NSF 61-G

Product Highlights

45 degree copper street elbow, FTG x C, 3/4 in nominal, 7/8 in OD, 700 psi, ASME and NSF 61-G certified

Product Information

Standard Information

• Brand: MUELLER STREAMLINE
• Manufacturer Part Number: W 03334
• Country of Origin: United States

Technical Specifications

• Brand: Mueller Streamline
• Manufacturer Part Number: W 03334
• Alternate Part Numbers: 30685768209592, 45S78, MBCWE505-7/8, ST4578, W03334
• Series: Streamline
• Style / Part Reference: WE-505
• Type: Elbow
• Sub-Type: 45 Degree Street Elbow
• Material: Wrought copper or bronze
• Nominal Size: 3/4 in
• Outside Diameter: 7/8 in
• Connection / End Style: FTG x C (Fitting x Cup)
• End Type Details: FTG - male solder (fitting); C - cup female solder
• Pressure Rating: 700 psi
• Standards / Certifications: ASME B16.15; ASME B16.18; ASME B16.22; ASME B16.24; ASME B16.50; ASME B1.20.1; NSF 61-G
• Intended Use: Above-ground potable water supply systems; plumbing and pressurized supply systems
• Overall Length: 2.62 in
• Overall Height: 1.76 in
• Overall Width: 0.95 in
• Weight: 0.09 lb
• Connection Sizes: 3/4 in (nominal)
• Operating Pressure/Temperature Reference: See CDA copper fitting pressure-temperature ratings
