Mueller Streamline W 03326 1/2 Ftg x C 45 Ell (1/2 in) WE505-5/8

Product Description

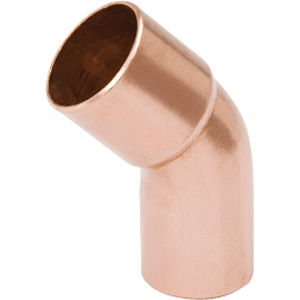

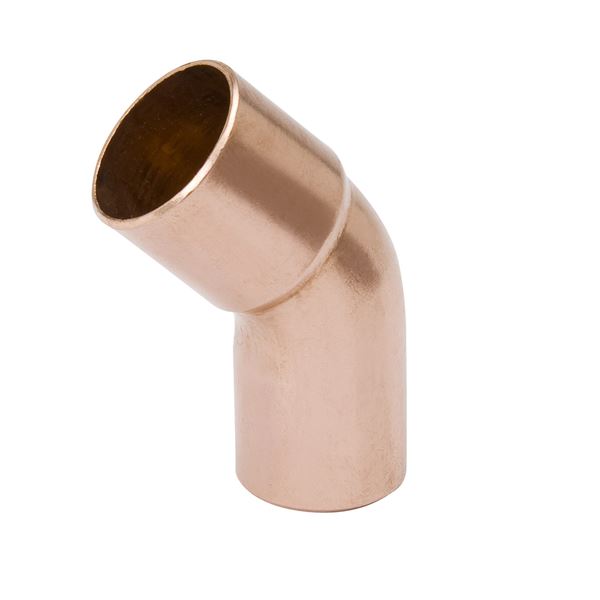

Mueller Streamline W 03326 is a 45 degree street elbow (ftg x C) constructed of copper for above-ground potable water supply systems. The fitting has a 1/2 inch nominal size with a 5/8 inch outside diameter and a 700 psi pressure rating. It conforms to ASME B16.15, B16.18, B16.22, B16.24, B16.50, B1.20.1 and NSF 61-G and is intended for pressurized plumbing applications.

• 45 degree street elbow, end style: fitting x C (FTG x C)
• Constructed of copper (wrought copper or bronze materials); 1/2 in nominal size, 5/8 in outside diameter
• 700 psi pressure rating; meets ASME B16.15/B16.18/B16.22/B16.24/B16.50/B1.20.1 and NSF 61-G

Product Highlights

45 degree copper street elbow for above-ground potable water systems; 1/2 in nominal, 5/8 in OD; 700 psi; ASME and NSF 61-G compliant.

Product Information

Standard Information

• Brand: MUELLER STREAMLINE
• Manufacturer Part Number: W 03326
• Country of Origin: Domestic (United States)

Technical Specifications

• Manufacturer: Mueller Streamline
• Manufacturer Part Number: W 03326
• Alternate Part Numbers: WE505-5/8; 30685768209578; 45S58; MBCWE505-5/8; ST4558
• Product Type: Elbow
• Sub-Type: 45 degree street elbow
• Series: Streamline
• Style: WE-505
• Nominal Size: 1/2 in
• Outside Diameter: 5/8 in OD
• Connection Sizes: 5/8 in x 5/8 in
• Connection Ends: FTG x C (fitting x cup)
• End Types: FTG (fitting, male solder) x C (cup, female solder)
• Material: Copper (wrought copper or bronze materials)
• Pressure Rating: 700 psi
• Standards: ASME B16.15; ASME B16.18; ASME B16.22; ASME B16.24; ASME B16.50; ASME B1.20.1; NSF 61-G
• Overall Length: 1.81 in
• Overall Height: 1.25 in
• Overall Width: 0.69 in
