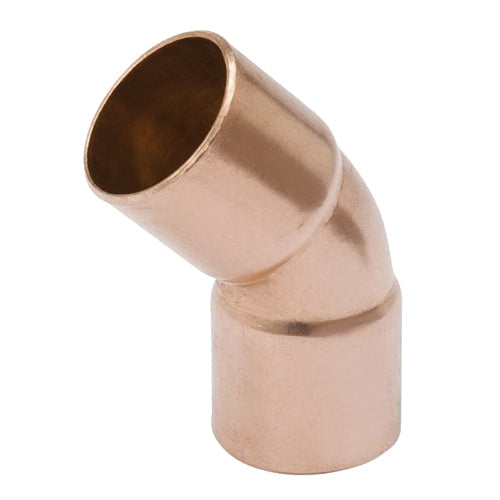

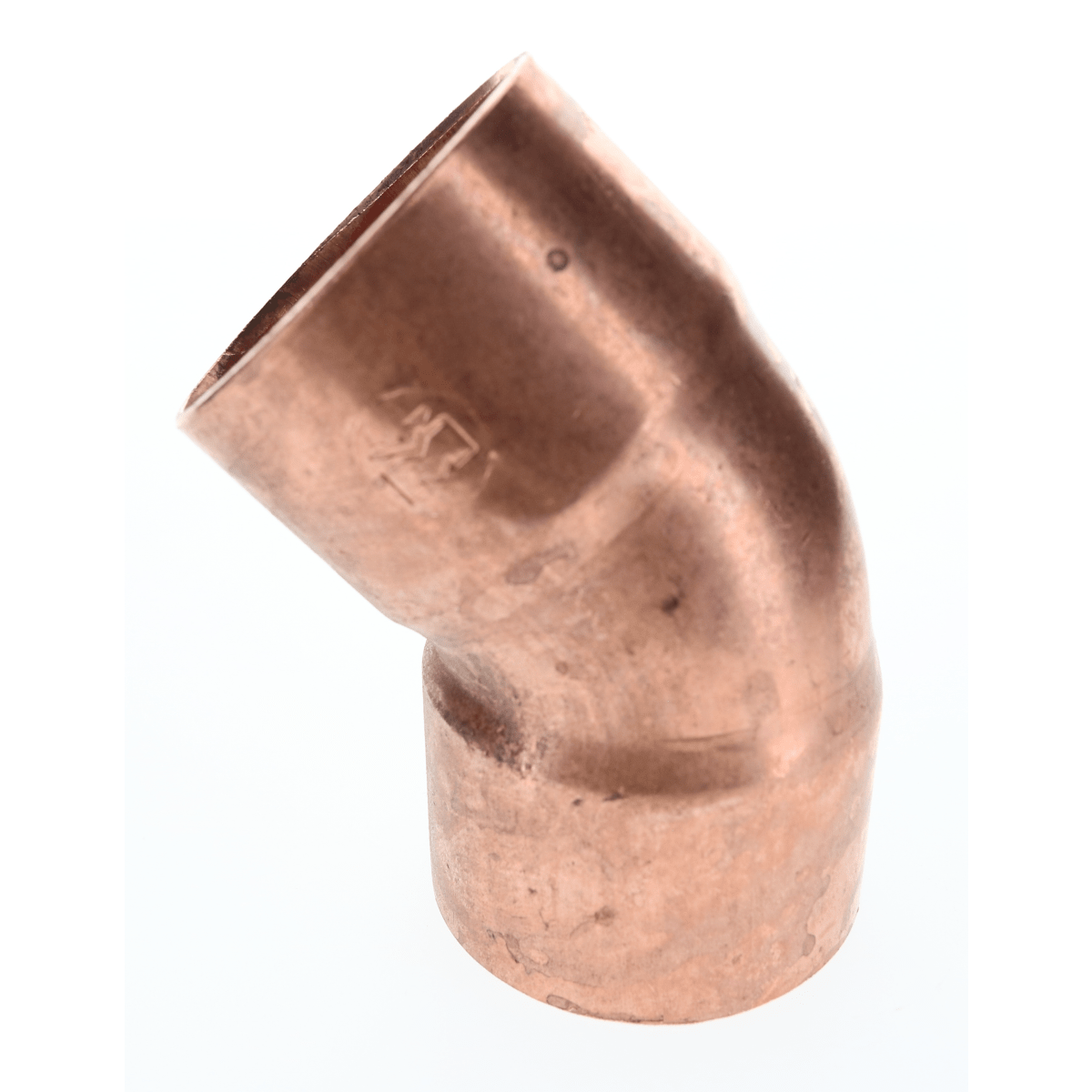

Mueller Streamline W 03063 2-1/2 C x C 45 Ell (2-1/2 in/45 deg)

Product Description

Mueller Streamline W 03063 is a 45 degree copper elbow fitting with a 2-1/2 inch nominal size and C x C end style. The fitting is rated for 700 psi and intended for above-ground potable water supply systems. It is constructed of copper (wrot copper or bronze variants noted) and meets multiple ASME standards and NSF 61-G for pressure applications in plumbing and mechanical systems.

• 45 degree elbow with C x C (cup x cup) end style for 2-1/2 inch nominal tubing
• Constructed of copper (wrot copper or bronze variants noted) with 700 psi pressure rating
• Meets ASME B16.15, B16.18, B16.22, B16.24, B16.50, B1.20.1 and NSF 61-G; intended for above-ground potable water systems

Product Highlights

45° copper elbow, 2-1/2 in nominal, C x C connections, 700 psi rating, ASME and NSF 61-G compliant

Product Information

Standard Information

• Brand: MUELLER STREAMLINE
• Manufacturer Part Number: W 03063
• Country of Origin: Domestic

Technical Specifications

• Brand: Mueller Streamline
• MPN: W 03063
• Manufacturer: Mueller Streamline
• Model: WE-504
• Item Name: Elbow
• Nominal Size: 2-1/2 in
• Connection Type: C x C
• Angle: 45 deg
• Material: Copper (wrot copper or bronze variants noted)
• Pressure Rating: 700 psi
• Application: Above-ground potable water supply systems
• Standards/Certifications: ASME B16.15; ASME B16.18; ASME B16.22; ASME B16.24; ASME B16.50; ASME B1.20.1; NSF 61-G
• Overall Length: 4.06 in
• Overall Height: 5.04 in
• Overall Width: 2.63 in
• Outer Diameter: 2-5/8 in
• Connection Sizes: 2-5/8 in x 2-5/8 in
• Unit Weight: 1.00 lb
• Unit of Measure: EA
• UPC: 685768209515
• Series: Streamline
• Form: Wrot
