Mueller Streamline W 03059 45 Degree Elbow 2 In C x C (WE-504)

Product Description

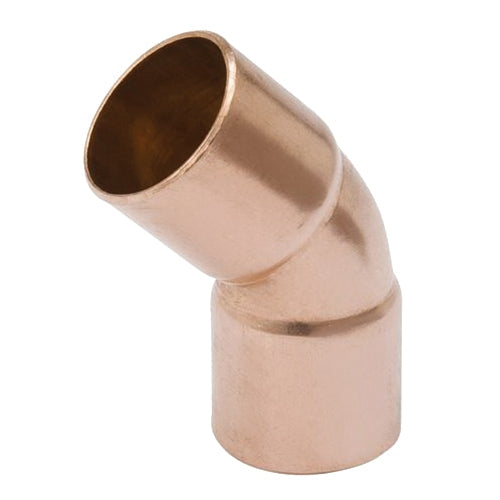

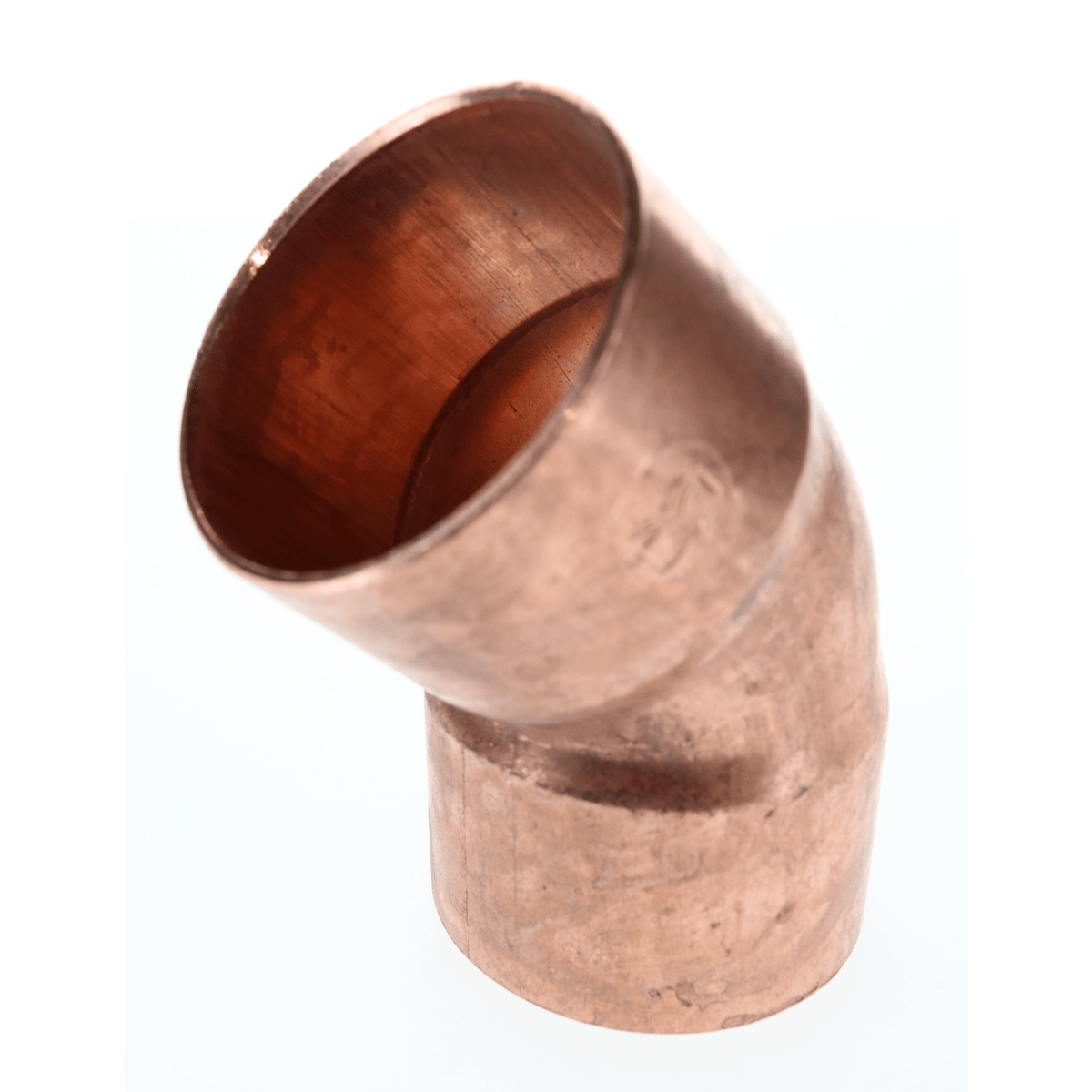

The Mueller Streamline W 03059 is a 45-degree copper solder-joint elbow with C x C (cup by cup) sweat connections for 2 inch nominal piping. It is rated to 700 psi and is intended for above-ground potable water supply and pressurized plumbing systems. Constructed of high-grade copper (wrot copper where specified), the fitting meets multiple ASME standards and NSF 61-G for potable water applications.

• Material: Copper; nominal size: 2 in with outer diameter ~2-1/8 in and 45 degree bend
• Connection: C x C female solder (sweat) cups; solder-joint fitting for plumbing and HVACR directional changes
• Ratings and standards: 700 psi pressure rating; meets ASME B16.15/B16.18/B16.22/B16.24/B16.50/B1.20.1 and NSF 61-G

Product Highlights

45-degree copper solder-joint elbow, 2 in nominal, C x C sweat ends, 700 psi rating, ASME and NSF 61-G compliant.

Product Information

Standard Information

• Brand: MUELLER STREAMLINE
• Manufacturer Part Number: W 03059

Technical Specifications

• Brand: Mueller Streamline
• Manufacturer: Mueller Streamline
• Manufacturer Part Number: W 03059
• Model: WE-504
• Item Name: Elbow
• Material: Copper
• Nominal Size: 2 in
• Outer Diameter: 2-1/8 in
• Angle: 45 deg
• Connection Type: C x C (cup x cup, solder/sweat)
• End Style: Female solder cup (sweat)
• Pressure Rating: 700 psi
• Applications: Above-ground potable water supply and pressurized plumbing systems
• Standards/Certifications: ASME B16.15; ASME B16.18; ASME B16.22; ASME B16.24; ASME B16.50; ASME B1.20.1; NSF 61-G
• Overall Length: 3.92 in
• Overall Height: 3.59 in
• Overall Width: 2.25 in
• Weight: 0.60 lb
• UPC: 685768209492
• Unit of Measure: EA
• Series/Model: WE-504
