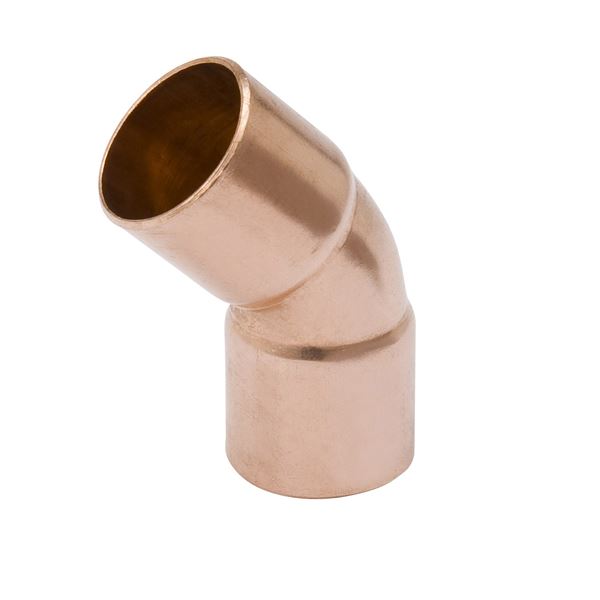

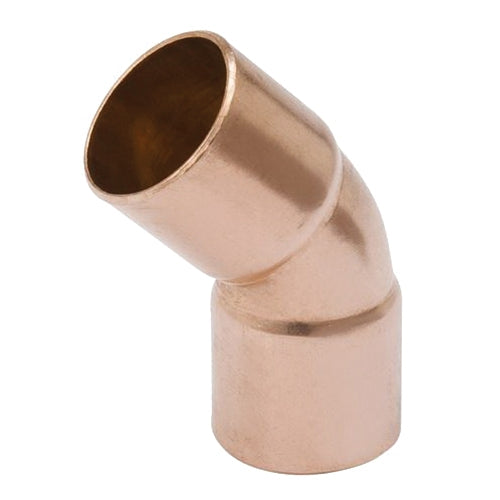

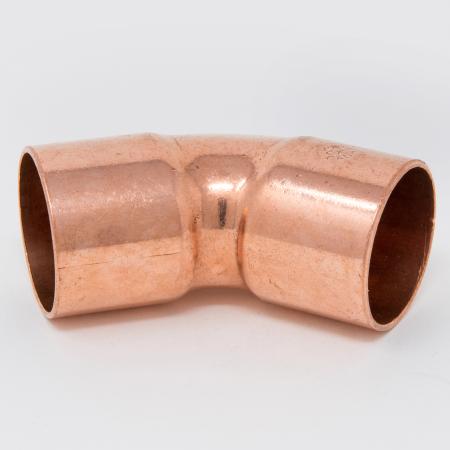

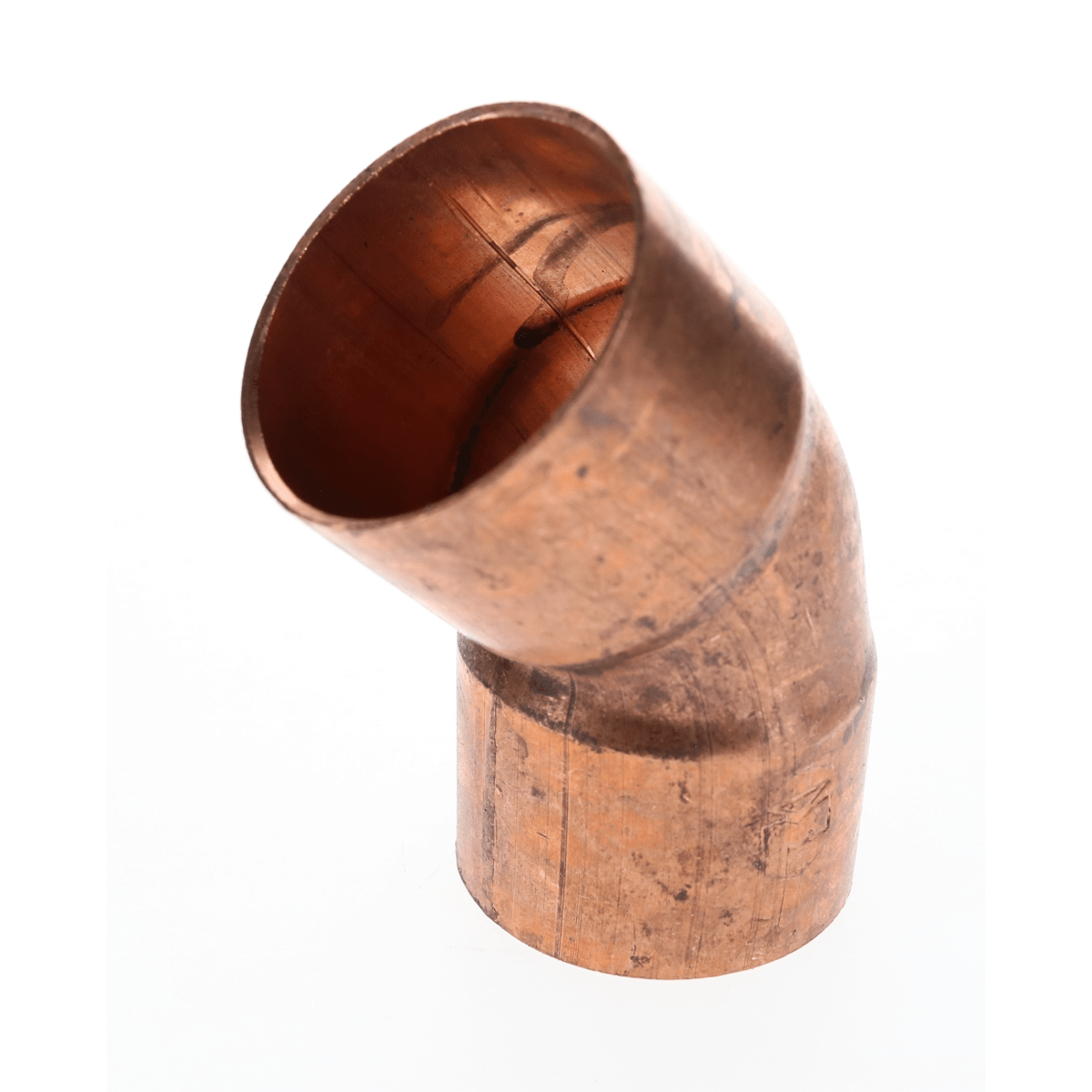

Mueller Streamline W 03055 1-1/2 C x C 45 Ell (1-1/2 in / 45 deg)

Product Description

The Mueller Streamline W 03055 is a 1-1/2 inch wrot copper 45-degree solder-joint elbow (C x C) designed for pressure applications and above-ground potable water supply systems. The fitting is rated 700 psi at temperatures up to 250 deg F and conforms to ASME B16.15/B16.18/B16.22/B16.24/B16.50/B1.20.1, ASTM B75, and MSS SP104, with NSF 61-G and UL recognition where indicated.

• Wrot copper solder-joint 45-degree elbow with C x C (female solder cup) connections, nominal 1-1/2 in.
• Pressure rated 700 psi at temperatures up to 250 deg F for pressurized plumbing applications.
• Meets ASME B16 series standards, ASTM B75 and MSS SP104; NSF 61-G certified and UL recognized.

Product Highlights

1-1/2 in wrot copper 45° solder-joint elbow (C x C); 700 psi at 250°F; ASME, ASTM, MSS standards; NSF 61-G and UL recognized.

Product Information

Standard Information

• Brand: MUELLER STREAMLINE
• Manufacturer Part Number: W 03055
• Country of Origin: Domestic

Technical Specifications

• Brand: Mueller Streamline
• Manufacturer Part Number: W 03055
• Model: WE-504
• Part Number: COPF-150-45EL-C
• Nominal Size: 1-1/2 in
• Connection Type: C x C (female solder cup)
• Angle: 45 deg
• Material: Wrot copper
• Pressure Rating: 700 psi
• Temperature Rating: 250 deg F
• Standards/Certifications: ASME B16.15; ASME B16.18; ASME B16.22; ASME B16.24; ASME B16.50; ASME B1.20.1; ASTM B75; MSS SP104; NSF 61-G; UL recognized
• Application: Above-ground potable water supply systems; plumbing and mechanical pressure applications
• Outer Diameter: 1-5/8 in
• Overall Length: 3.18 in
• Overall Height: 2.83 in
• Overall Width: 1.74 in
• Weight: 0.36 lb
• UPC: 685768209485
• Style: WE-504
