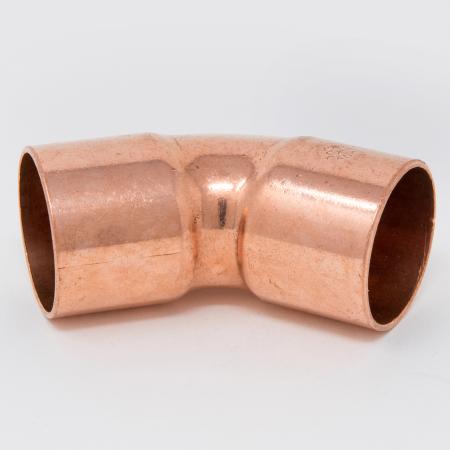

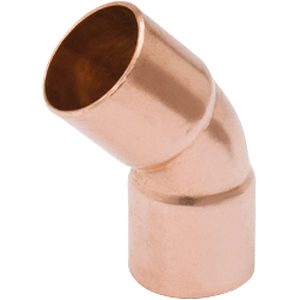

Mueller Streamline W 03050 Copper Elbow 45 Short (1-3/8 inches OD)

Product Description

Mueller Streamline W 03050 is a 45-degree short copper elbow solder-joint pressure fitting for 1-1/4 inch nominal copper piping with a 1-3/8 inch outside diameter. It is constructed of wrot copper for above-ground potable water supply systems and carries a 700 psi rating at 250 deg F. The fitting conforms to applicable ASME standards and NSF 61G and is identified as style WE-504.

• 45-degree short elbow, 1-1/4 in nominal (C x C), 1-3/8 in outside diameter
• Wrot copper construction with C (cup) female solder ends for solder-joint installation
• Pressure rated 700 psi at 250 deg F; conforms to ASME B16 series, MSS SP104, and NSF 61G

Product Highlights

45-degree solder-joint copper elbow (1-1/4 C x C, 1-3/8 in OD), 700 psi at 250 deg F, meets ASME B16.22 and NSF 61G; style WE-504.

Product Information

Standard Information

• Brand: MUELLER STREAMLINE
• Manufacturer Part Number: W 03050
• Country of Origin: Domestic

Technical Specifications

• Brand: Mueller Streamline
• MPN: W 03050
• Product Type: 45-degree elbow
• Style: WE-504
• Material: Wrot copper
• End Type: C - Cup (female solder)
• End Size: 1-1/4 in
• Nominal Size: 1-1/4 in
• Outside Diameter: 1-3/8 in
• Connection Sizes: 1-3/8 in x 1-3/8 in
• Angle: 45-degree
• Pressure Rating: 700 psi
• Temperature Rating: 250 deg F
• Standards: ASME B16.15; ASME B16.18; ASME B16.22; ASME B16.24; ASME B16.50; ASME B1.20.1; MSS SP104; NSF 61G; UL Recognized (select sizes)
• Series: Streamline
• Weight: 0.25 lb
• Overall Length: 3.32 in
• Overall Height: 1.50 in
• Overall Width: 2.49 in
• Alternate Part Numbers: 45138, EL45138, MBCWE504-1-3/8, 30685768209479
• UPC: 685768209478
• Unit of Measure: EA
