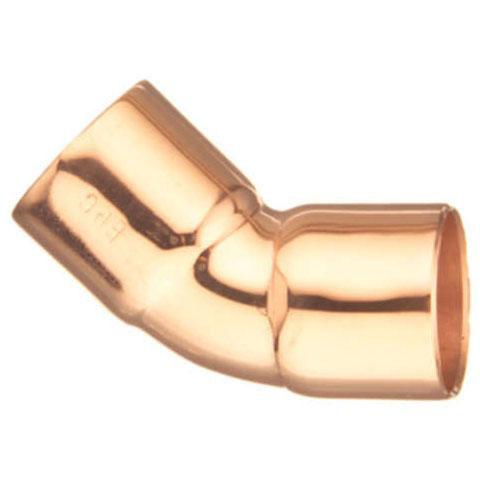

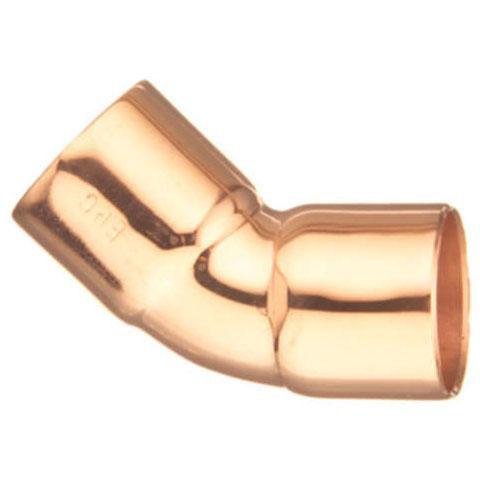

Mueller Streamline W 03034cb 3/4 Inch Copper 45 Elbow Cxc

Product Description

The MUELLER STREAMLINE w 03034cb is a 3/4-inch copper 45-degree elbow fitting designed for sweat (female soldered) connections on both ends. Manufactured to ASME B16.22 standards, this CXC fitting is part of the KLEENFIT line, which undergoes bright polishing and thorough degreasing to meet cleanliness requirements in demanding environments. It handles a wide temperature range of 350 to 550 degrees F, making it suitable for a broad range of piping applications. Licensed plumbers and pipefitters install this fitting using standard copper soldering techniques.

This elbow is appropriate for both residential and industrial piping systems. Its KLEENFIT processing makes it a strong choice for applications where cleanliness is critical, including medical facilities, food processing plants, clean room environments, and research laboratories. It also performs reliably in standard residential plumbing and hydronic systems where a 45-degree change of direction is needed on 3/4-inch copper line.

Key Features

• 45-degree elbow geometry for angled direction changes in copper piping runs
• Female soldered x female soldered (CXC) end connections for standard sweat joining
• Conforms to ASME B16.22 wrought copper and copper alloy solder-joint pressure fittings standard
• Bright polished and oil-free finish meets KLEENFIT cleanliness requirements
• Temperature rated from 350 to 550 degrees F
• Made in the USA with a 50-year warranty

Compatibility

Designed as an OEM-style replacement and new-installation fitting for 3/4-inch copper piping systems using female soldered (sweat) end connections in residential and industrial applications.

Installation Notes

Installation should be performed by a licensed plumber following applicable local codes and IPC guidelines. Shut off and depressurize the water or fluid system and drain the line before soldering. Clean all mating pipe ends and fitting cups thoroughly with emery cloth and flux before applying heat. Avoid overheating the fitting during the soldering process, as excessive heat can damage the copper and compromise joint integrity.

Technical Specifications

• Applicable Standard: ASME B16.22
• Angle: 45 degrees
• Size: 3/4 inch
• End Connection: Female Soldered x Female Soldered (CXC)
• Material: Copper
• Temperature Rating: 350 to 550 degrees F
• Application: Industrial, Residential
• Length: 1.62 inches
• Width: 2.27 inches
• Height: 0.97 inches
• Weight: 0.08 pounds
• Packaging Quantity: 1 per inner pack, 50 per master carton
• Warranty: 50 years
• Country of Origin: USA

Standard Information

• Brand: MUELLER STREAMLINE
• Manufacturer Part Number: w 03034cb
