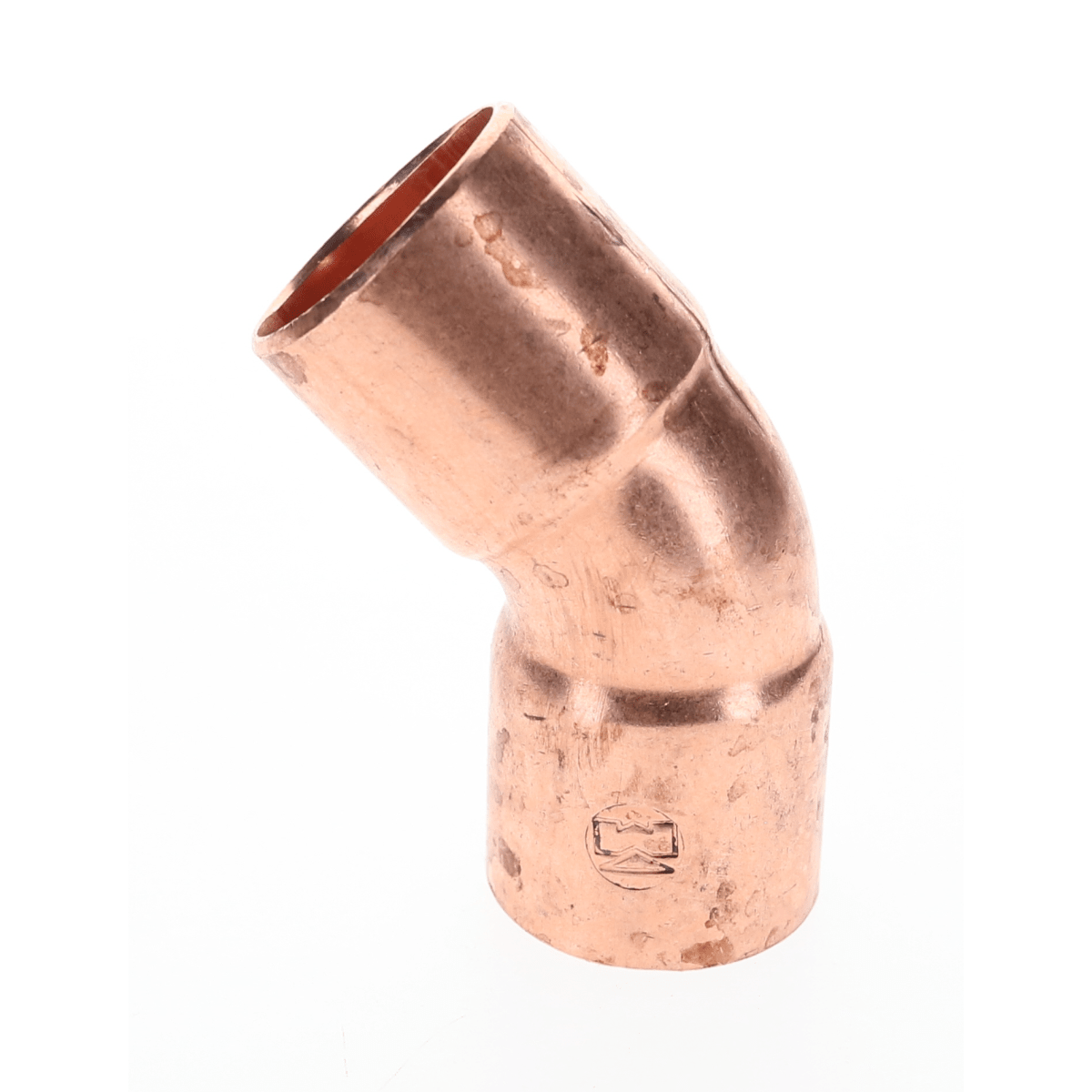

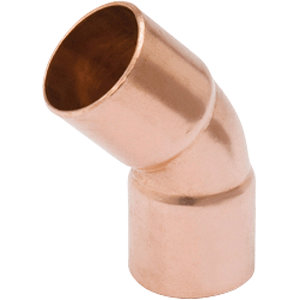

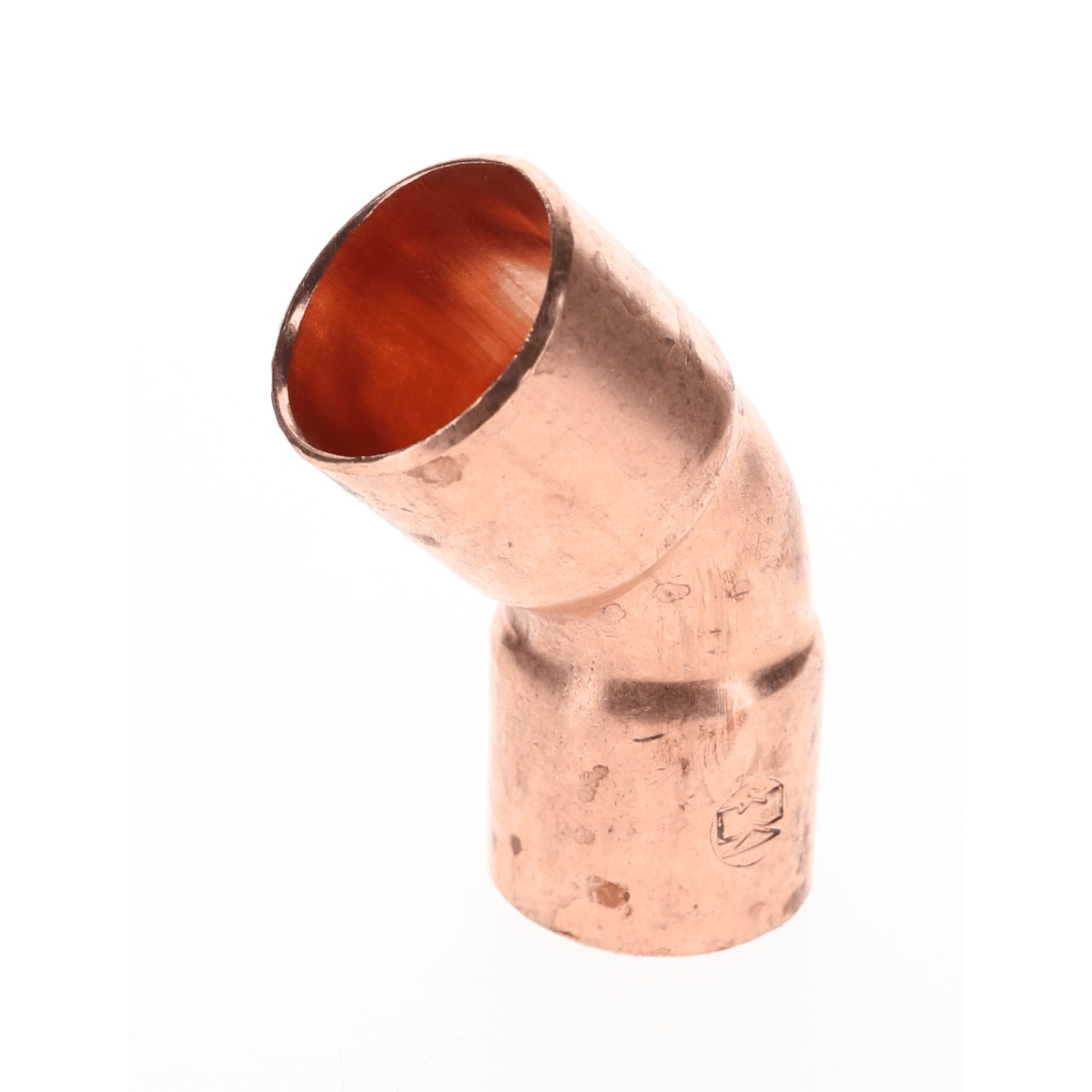

Mueller Streamline W 03034 Copper Elbow 45° (3/4 in / 7/8 in OD) WE504-7/8

Product Description

Mueller Streamline W 03034 is a 45° copper elbow with C x C (cup x cup) solder-joint ends for 3/4 in nominal tubing. The fitting has a 7/8 in outside diameter and is constructed of wrot copper for above-ground potable water supply systems. It is rated to 700 psi and meets ASME B16.15/B16.18/B16.22/B16.24/B16.50/B1.20.1 and NSF 61-G standards.

• 45° solder-joint elbow with C x C (cup x cup) female solder ends for 3/4 in nominal tubing
• 7/8 in outside diameter, constructed of wrot copper; typical overall dimensions: 2.22 in L x 1.70 in H x 0.95 in W
• Pressure rating 700 psi; conforms to ASME B16.15, B16.18, B16.22, B16.24, B16.50, B1.20.1 and NSF 61-G

Product Highlights

45° copper solder-joint elbow, 3/4 in nominal (7/8 in OD), 700 psi rating, ASME and NSF 61-G compliant

Product Information

Standard Information

• Brand: MUELLER STREAMLINE
• Manufacturer Part Number: W 03034
• Country of Origin: Domestic

Technical Specifications

• Brand: Mueller Streamline
• Manufacturer Part Number: W 03034
• Product Name: 45° Elbow, C x C
• Material: Wrot copper
• Nominal Size: 3/4 in
• Outside Diameter: 7/8 in
• End Style: C x C (cup x cup, female solder)
• Connection Type: Solder-joint (cup x cup)
• Angle: 45°
• Pressure Rating: 700 psi
• Standards: ASME B16.15; ASME B16.18; ASME B16.22; ASME B16.24; ASME B16.50; ASME B1.20.1; NSF 61-G
• Weight: 0.09 lb
• Overall Length: 2.22 in
• Overall Height: 1.70 in
• Overall Width: 0.95 in
• Form: Wrot
• Series: WE-504 / Streamline
• Intended Application: Above-ground potable water supply systems
• Alternate Part Numbers: WE504-7/8, EL4578, COPF-075-45EL-C, W03034
