Mueller Streamline W 03026cb Copper 45 Degree Elbow 1/2 in

Product Description

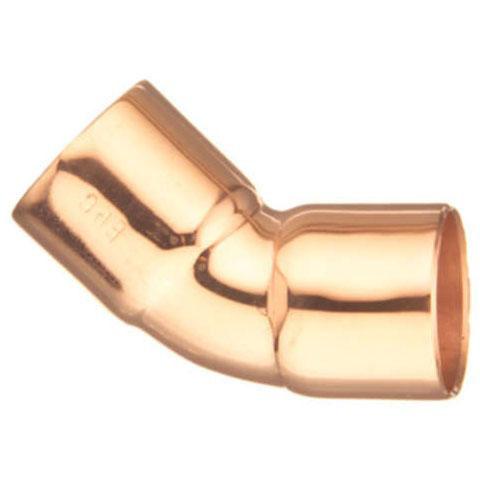

The MUELLER STREAMLINE w 03026cb is a 1/2 inch copper 45-degree elbow fitting designed for sweat (female soldered) connections on both ends. Conforming to ASME B16.22, this CXC fitting is brightly polished and cleaned of oil and grease during manufacturing, making it suitable for installations where cleanliness standards are critical. It is used by licensed plumbers and mechanical contractors working in residential and industrial piping systems. The fitting is rated for temperatures from 350 degrees F to 550 degrees F and is manufactured in the USA, backed by a 50-year warranty.

This fitting is appropriate for residential plumbing and industrial piping applications where a clean, reliable 45-degree change of direction is required. Its KLEENFIT construction makes it particularly well suited for medical facilities, food processing plants, clean room environments, and research laboratories. The female soldered end connections on both sides allow for standard copper pipe sweating with common plumbing torches and flux.

Key Features

• 45-degree angle for directional changes in copper piping runs
• Female soldered x female soldered (CXC) end connections for sweat installation
• Conforms to ASME B16.22 standard for wrought copper and copper alloy fittings
• Polished and degreased from manufacturing for clean-room and food-grade compatible installations
• Temperature rated from 350 degrees F to 550 degrees F
• Made in the USA with a 50-year warranty

Compatibility

Designed as an OEM-style replacement or new-installation fitting for 1/2 inch copper pipe systems in residential and industrial applications conforming to ASME B16.22.

Installation Notes

Installation is performed by licensed plumbers or qualified mechanical contractors. Shut off and drain the water supply before cutting into any existing line. Use appropriate flux and lead-free solder in compliance with local plumbing codes and IPC requirements for potable water systems. Allow the fitting to cool completely before restoring system pressure.

Technical Specifications

• Fitting Type: Elbow
• Angle: 45 degrees
• Size: 1/2 inch
• End Connection: Female Soldered x Female Soldered (CXC)
• Material: Copper
• Applicable Standard: ASME B16.22
• Temperature Rating: 350 to 550 degrees F
• Overall Dimensions: 1.14 inches Length x 1.56 inches Width x 0.7 inches Height
• Weight: 0.04 pounds
• Application: Industrial, Residential
• Country of Origin: USA
• Warranty: 50 Years

Standard Information

• Brand: MUELLER STREAMLINE
• Manufacturer Part Number: w 03026cb
