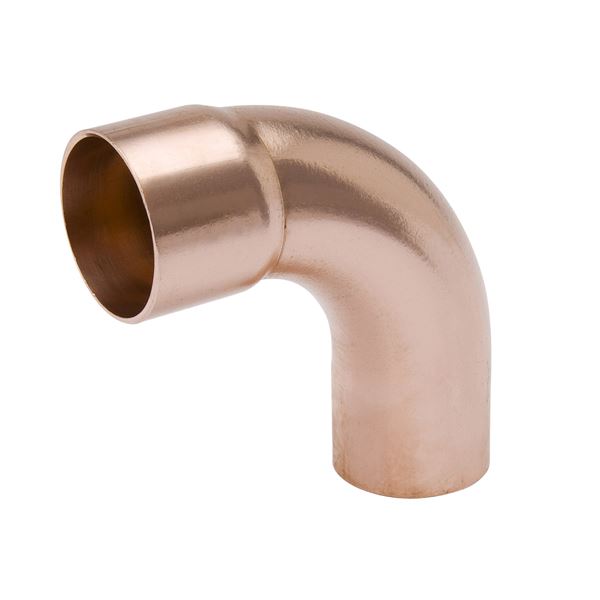

Mueller Streamline W 02847 90 Elbow Long Radius Street 1 in

Product Description

The MUELLER STREAMLINE w 02847 is a 1-inch, 90-degree long radius street elbow configured with a fitting-end (FTG) inlet and a copper solder (C) outlet. This wrot copper solder-joint fitting is designed for pressurized potable water supply systems where a long-radius directional change is required. The FTG x C configuration allows direct inline connection without an additional coupling, making it a time-saving choice for tight installations. Manufactured to applicable ASME standards, this elbow meets NSF 61G requirements for use in drinking water systems. Licensed plumbers and pipefitters install this fitting using standard copper soldering tools and techniques.

This elbow is intended for above-ground potable water supply and pressurized distribution systems in residential and light commercial applications. The long radius design reduces flow restriction compared to a standard short-radius elbow, making it well suited for systems where maintaining flow rate and minimizing turbulence matter. The 1-inch size fits standard 1-inch copper tubing and is a common size in main distribution runs, branch lines, and riser connections.

Key Features

• 90-degree long radius street elbow reduces flow restriction versus short-radius designs
• FTG x C end configuration eliminates the need for an additional coupling at the male end
• Wrot copper construction meets NSF 61G for potable water contact
• Manufactured to ASME B16.22 and other applicable ASME solder-joint fitting standards
• For use in above-ground pressurized water supply systems

Compatibility

Designed as an OEM-style solder-joint replacement fitting for 1-inch copper tube systems in above-ground potable water supply applications.

Installation Notes

Installation should be performed by a licensed plumber in accordance with local plumbing codes and IPC guidelines. Shut off the water supply and fully drain the line before cutting and fitting. Clean all mating surfaces with emery cloth and apply flux before soldering; use lead-free solder as required for potable water systems. Allow the joint to cool completely before restoring system pressure.
