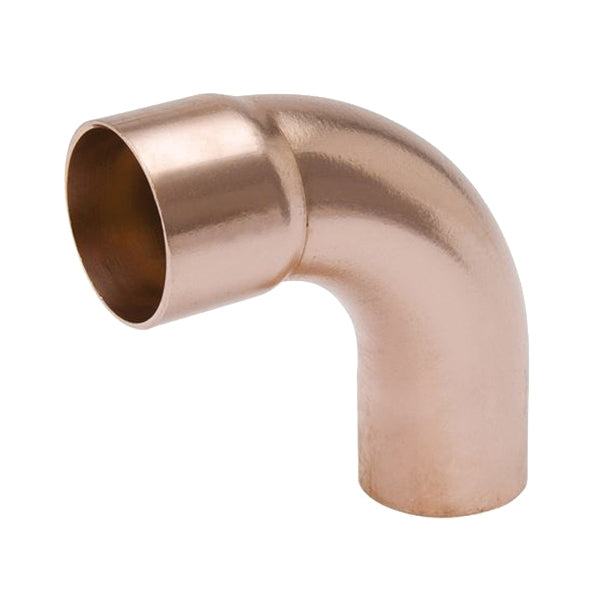

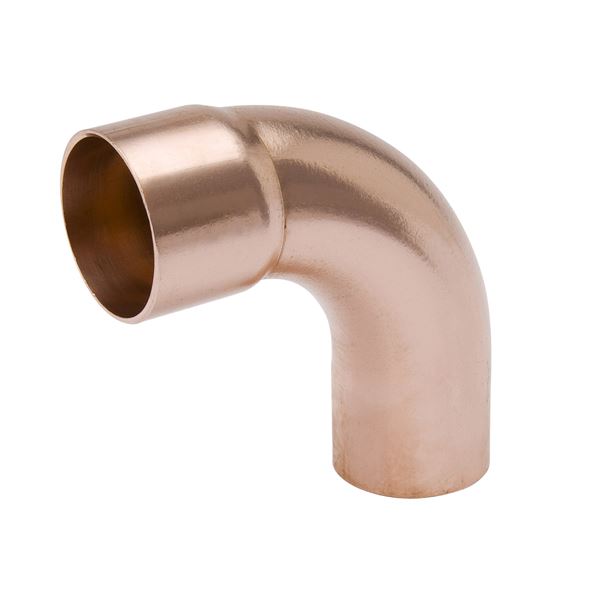

Mueller Streamline W 02822 Street Elbow 90 LR (1/2 in / 5/8 in OD) WE-503L

Product Description

Mueller Streamline W 02822 is a 90° long-radius street elbow (model WE-503L) for 1/2 in nominal copper tubing (5/8 in outside diameter) with FTG x C solder-joint connections. It functions as a solder-joint pressure fitting to change direction in above-ground potable water supply and HVACR systems, constructed of wrought copper and formed as a wrot fitting. The fitting meets NSF 61G and applicable ASME standards and is rated for 700 psi.

• Wrought copper long-radius 90° street elbow for 1/2 in nominal tubing (5/8 in OD); wrot construction.
• FTG x C connection: male solder fitting x female solder cup for solder-joint installation; used in pressurized systems.
• Meets NSF 61G and ASME B16.15/B16.18/B16.22/B16.24/B16.50/B1.20.1 standards; pressure rated to 700 psi.

Product Highlights

90° long-radius copper street elbow (1/2 in / 5/8 in OD) with FTG x C solder-joint ends; NSF 61G and ASME compliant; 700 psi rating.

Product Information

Standard Information

• Brand: MUELLER STREAMLINE
• Manufacturer Part Number: W 02822
• Country of Origin: Domestic

Technical Specifications

• Brand: Mueller Streamline
• Manufacturer Part Number: W 02822
• Model: WE-503L
• Product Name: Street Elbow, Long Radius
• Angle: 90 deg
• Nominal Size: 1/2 in
• Outside Diameter: 5/8 in
• Connection Type: FTG x C (male solder fitting x female solder cup)
• Connection Ends: Fitting (male solder) x Cup (female solder)
• Material: Wrought copper
• Form: Wrot
• Type: Long Radius Street Elbow
• Applications: Above-ground potable water supply systems; plumbing and HVACR pressurized systems
• Pressure Rating: 700 psi
• Standards/Certifications: NSF 61G; ASME B16.15; ASME B16.18; ASME B16.22; ASME B16.24; ASME B16.50; ASME B1.20.1
• Overall Length: 1.69 in
• Overall Height: 1.78 in
• Overall Width: 0.69 in
• Weight: 0.06 lb
• UPC: 685768209355
• Series: Streamline
