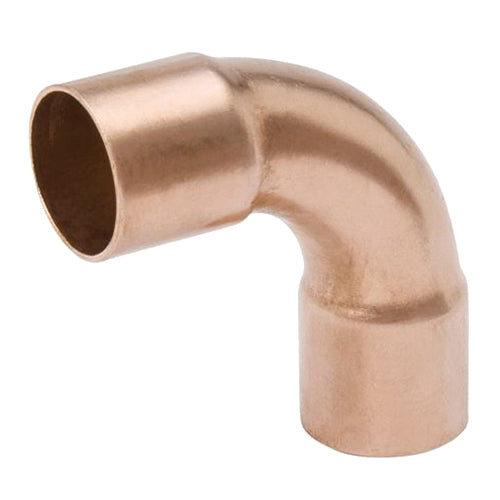

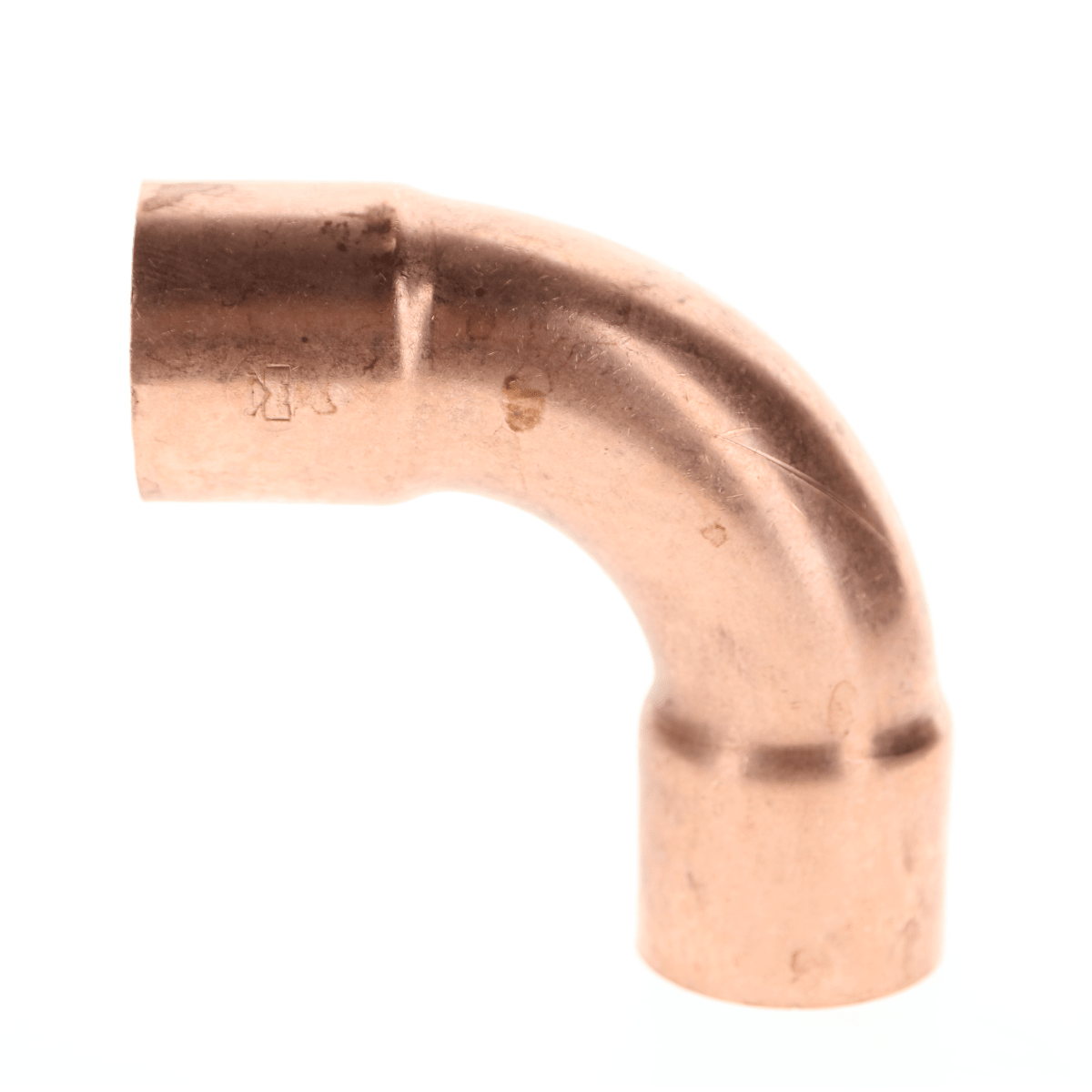

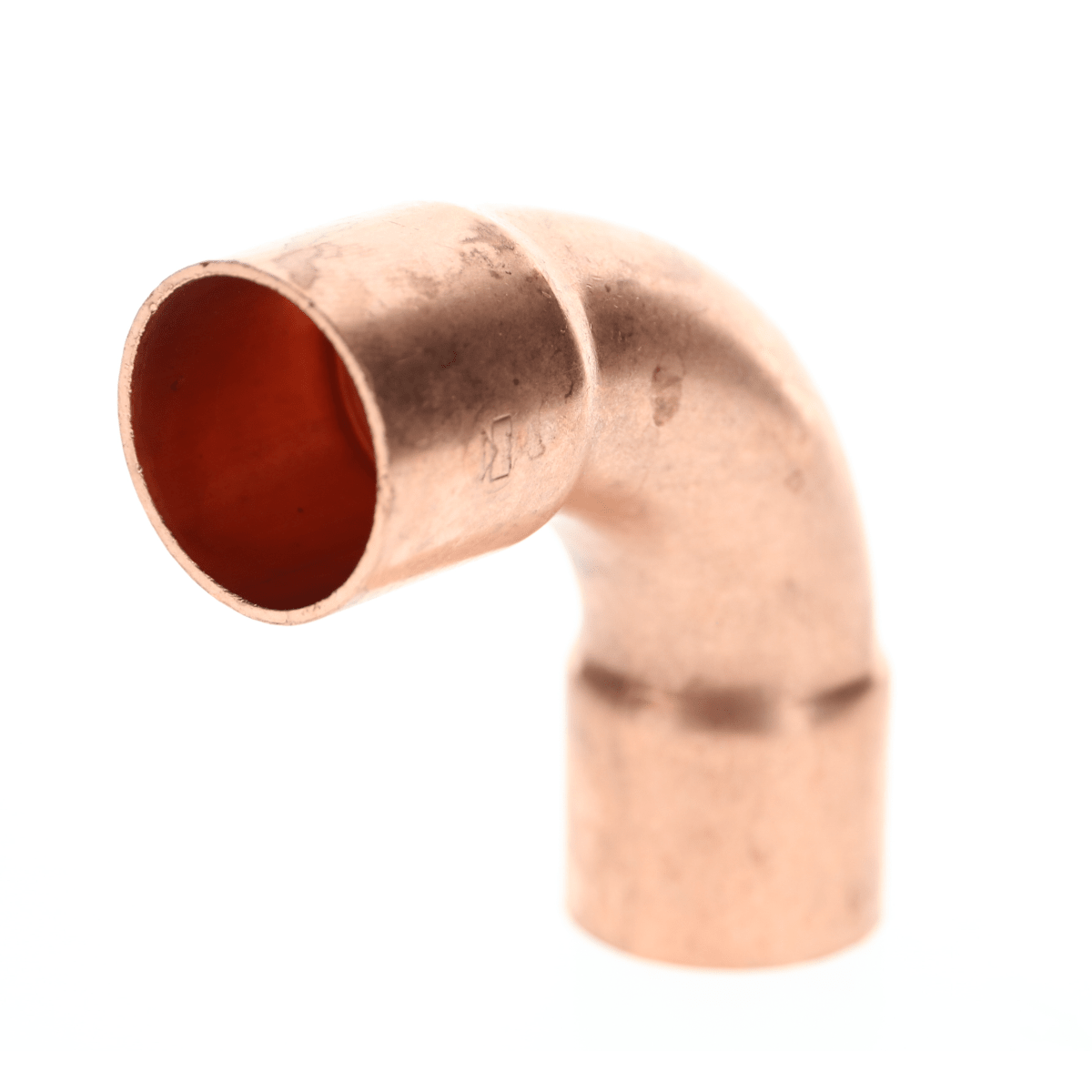

Mueller Streamline W 02734 Elbow Fitting 3/4 in (90 Degree)

Product Description

Mueller Streamline W 02734 is a 90 degree long-radius elbow fitting constructed of UNS C12200 wrot copper with female soldered (cup x cup) ends. The nominal connection size is 3/4 in (7/8 in OD) with an overall length of 2.40 in; it is rated to 700 PSI and 250 Deg F for use in potable water supply, HVACR, and refrigeration systems and meets applicable ASME and NSF standards.

• 90 degree long-radius elbow, nominal 3/4 in with 7/8 in outside diameter and female soldered x female soldered (C x C) ends
• Constructed of UNS C12200 wrot copper; model/series WE-500L; outer length 2.40 in; weight 0.13 lb
• Pressure rating 700 PSI, temperature rating 250 Deg F; meets ASME and NSF standards and UL listings

Product Highlights

Wrot copper long-radius 90 degree elbow, 3/4 in C x C solder-joint ends, 700 PSI/250 Deg F rating, ASME and NSF certified.

Product Information

Standard Information

• Brand: MUELLER STREAMLINE
• Manufacturer Part Number: W 02734
• Country of Origin: Domestic (United States)

Technical Specifications

• Brand: Mueller Streamline
• Manufacturer Part Number: W 02734
• Model/Series: WE-500L
• Item Name: Elbow
• Type: Long-radius elbow
• Angle: 90 Degree
• Nominal Size: 3/4 in
• End Connection: Female soldered x female soldered (C x C, cup x cup)
• End Style: C x C (cup x cup, female solder)
• Material: UNS C12200 (wrot) copper
• Material Specification: ASTM (as listed)
• Process: Wrot
• Outer Diameter: 7/8 in
• Overall Length: 2.40 in
• Overall Height: 2.40 in
• Overall Width: 0.95 in
• Weight: 0.13 lb
• Pressure Rating: 700 PSI
• Temperature Rating: 250 Deg F
• Applications: Potable water supply; HVACR; refrigeration systems
• Standards/Certifications: UL (Canada and US); ASME B16.15, B16.18, B16.22, B16.24, B16.50, B1.20.1; MSS SP-104; NSF 61G
• UPC: 685768209317
• Category: Plumbing & Bath / Kitchen Fixtures
• Catalog Number: W 02734
• UNSPSC Code: 40183101
