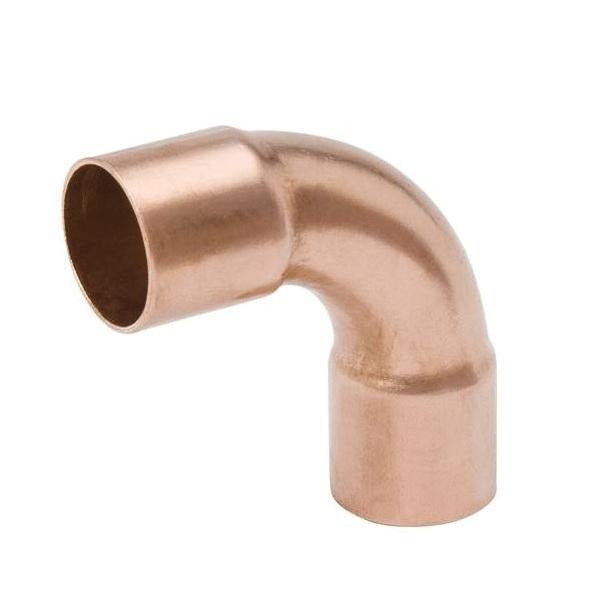

Mueller Streamline W 02728 Long Radius Elbow 3/4 in

Product Description

The MUELLER STREAMLINE w 02728 is a 90-degree long-radius copper elbow designed for sweat-connect (C x C) copper tubing systems. It accepts 3/4-inch copper pipe on both ends and is used to change flow direction with reduced turbulence compared to a standard short-radius fitting. The long-radius geometry lowers pressure drop and is well suited for systems where flow efficiency matters. Plumbers and pipefitters install this fitting by cleaning and fluxing both the fitting cup and the pipe end, then soldering with an appropriate lead-free solder per applicable codes.

This elbow is used in residential and light commercial plumbing, hydronic heating, and refrigeration piping where a 90-degree directional change is required on a 3/4-inch copper line. The C x C sweat end configuration makes it a standard choice for copper-to-copper connections throughout water supply, heating, and cooling distribution systems. It is part of the Streamline WE-500L Series of long-radius elbows.

Key Features

• 90-degree long-radius bend reduces flow turbulence and pressure drop compared to short-radius elbows
• C x C (sweat) ends on both sides for standard solder joint connections
• 3/4-inch nominal size fits standard 3/4-inch copper tubing
• Copper construction provides corrosion resistance and compatibility with water and hydronic systems
• Part of the Streamline WE-500L Series for consistent dimensional tolerances

Compatibility

Designed as a standard sweat-fit replacement or new-installation copper elbow for 3/4-inch C x C copper tubing systems in plumbing, hydronic heating, and light commercial piping applications.

Installation Notes

Installation is performed by a licensed plumber or qualified pipefitter. Before soldering, shut off and drain the affected water or fluid line. Clean both the pipe end and fitting cup with emery cloth, apply flux, and solder using lead-free solder in compliance with local plumbing codes and IPC requirements for potable water systems. Do not apply heat to a fitting that still contains standing water, as steam pressure can compromise the solder joint.
