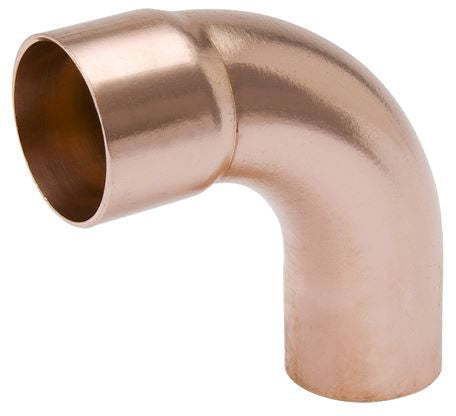

Mueller Streamline W 02717 1/2 Long Radius 90 Degree Elbow (1/2 x 1/2)

Product Description

Mueller Streamline W 02717 is a 1/2 inch long-radius 90 degree elbow copper solder-joint fitting. It has 0.026 inch wall thickness, female soldered ends, a 3/8 inch inner diameter and an overall length of 1.41 inch. Manufactured seamless from UNS C12200 copper alloy, the fitting is rated 700 PSI at 250 Deg F and conforms to ASTM B75/B88/B280 and applicable ANSI/ASME, MSS, NSF and UL standards for plumbing, HVAC, refrigeration and piping systems.

• 1/2 inch by 1/2 inch long-radius 90 degree elbow with female soldered x female soldered ends
• UNS C12200 copper alloy, seamless (wrot) construction with 0.026 inch wall thickness and 3/8 inch inner diameter
• Rated 700 PSI at 250 Deg F; conforms to ASTM B75/B88/B280 and applicable ANSI/ASME, MSS, NSF, UL standards

Product Highlights

1/2 inch long-radius 90 degree copper elbow for soldered connections; rated 700 PSI at 250 Deg F; conforms to ASTM and ANSI/ASME standards.

Product Information

Standard Information

• Brand: MUELLER STREAMLINE
• Manufacturer Part Number: W 02717
• Country of Origin: USA

Technical Specifications

• Part Number: W-02717
• Type: Long Radius Elbow
• Angle: 90 Degree
• Size: 1/2 Inch x 1/2 Inch
• Wall Thickness: 0.026 Inch
• End Connection: Female Soldered x Female Soldered
• Material: UNS C12200 Copper Alloy
• Material Specification: ASTM B75/B88/B280
• Manufacturing Process: Wrot, Seamless
• Pressure Rating: 700 PSI at 250 Deg F
• Application: DWV, HVAC/R, Air Conditioning, Refrigeration, Piping System
• Standards: ANSI/ASME B16.15/B16.18/B16.22/B16.23/B16.24/B16.26/B16.29/B16.50/B1.20.1, MSS SP104, NSF 61G, UL (Canada and US)
• Inner Diameter: 3/8 Inch
• Length: 1.41 Inch
• UPC: 685768209270
• Country of Origin: United States
• Lead Free: Yes
