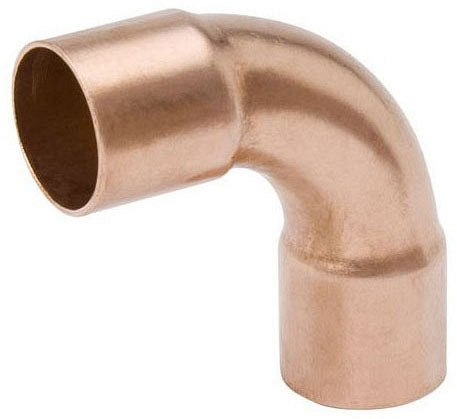

Mueller Streamline W 02715 1/8 C x C LR 90 Elbow (1/4 in / 90 Degree) WE500L-1/4

Product Description

Mueller Streamline W 02715 is a Streamline long-radius 90 degree copper solder-joint elbow used in pressurized piping systems. Constructed of wrot copper (UNS C12200), the fitting is rated to 700 psi and 250 deg F and conforms to ASME B16.15/B16.18/B16.22/B16.24/B16.50/B1.20.1, ASTM B75, MSS SP104, NSF 61-G and UL recognition. Nominal size is listed as 1/4 in with C end style.

• Wrot copper construction (UNS C12200) for solder-joint pressure applications
• Pressure rating 700 psi and temperature rating 250 deg F; long-radius 90 degree form
• Meets ASME B16 series, ASTM B75, MSS SP104, NSF 61-G and UL recognized standards

Product Highlights

Long-radius 90 degree copper solder-joint elbow, nominal 1/4 in size, 700 psi / 250 deg F ratings, compliant with major ASME/ASTM/MSS/NSF standards.

Product Information

Standard Information

• Brand: MUELLER STREAMLINE
• Manufacturer Part Number: W 02715
• Country of Origin: Domestic

Technical Specifications

• Brand: Mueller Streamline
• Manufacturer Part Number: W 02715
• MPN: W 02715
• Model/Series: Streamline / WE-500L
• Type: Elbow
• Sub-Type: Long Radius 90 Degree
• End Connection: Female soldered x female soldered
• End Style: C
• Connection Size: 1/4" x 1/4"
• Nominal Size: 1/4 in
• Material: Wrot copper (UNS C12200)
• Pressure Rating: 700 psi
• Temperature Rating: 250 deg F
• Standards/Approvals: ASME B16.15; ASME B16.18; ASME B16.22; ASME B16.24; ASME B16.50; ASME B1.20.1; ASTM B75; MSS SP104; NSF 61-G; UL Recognized
• Country of Origin: Domestic (United States)
• Application: Pressurized piping / potable water supply systems
• Alternate Part Numbers: WE500L-1/4; WE-500L; EL14; 90-04-OA; MBCWE500L-1/4; 30685768209257
• UPC: 685768209256
