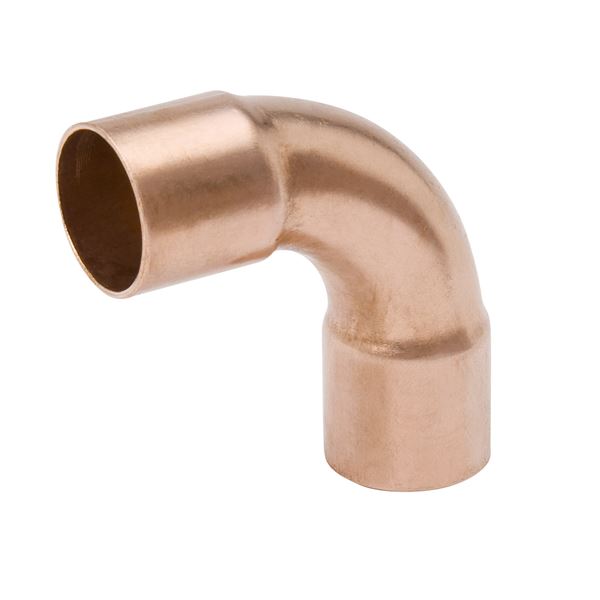

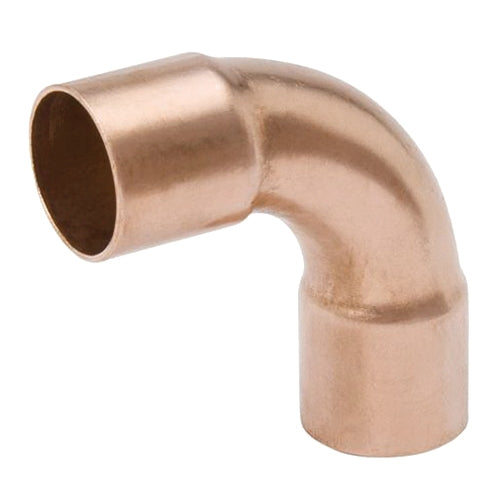

Mueller Streamline W 02710 90° Elbow Long Radius C x C 3/16 in (3/16 in / 90°) WE-500L

Product Description

Mueller Streamline W 02710 is a wrot copper 90° long radius elbow, model WE-500L, designed for solder-joint C x C (female cup) connections in above-ground potable water supply systems. The fitting features 5/16 inch female solder cup ends, an overall length of 1.08 in, and is constructed of high-grade wrot copper. It is NSF 61G certified and complies with ASME B16.15, B16.18, B16.22, B16.24, B16.50, and B1.20.1 standards.

• Material: wrot copper construction for solder-joint potable water applications
• Connection: C x C female solder cup ends, connection size 5/16 in; long radius 90° elbow
• Certifications: NSF 61G and compliant with ASME B16.15, B16.18, B16.22, B16.24, B16.50, B1.20.1

Product Highlights

90° long radius copper elbow (model WE-500L) with 5/16 in female solder cup ends for above-ground potable water systems; NSF 61G and ASME compliant; overall length 1.08 in.

Product Information

Standard Information

• Brand: MUELLER STREAMLINE
• Manufacturer Part Number: W 02710

Technical Specifications

• Brand: Mueller Streamline
• MPN: W 02710
• Model: WE-500L
• Product Name: 90° Elbow Long Radius C x C
• Type: Long Radius Elbow
• Angle: 90 deg
• End Type: C - Cup (Female Solder)
• End Size: 5/16 in
• Material: Wrot copper
• Overall Length: 1.08 in
• Overall Height: 1.08 in
• Overall Width: 3.71 in
• Standards/Certifications: NSF 61G; ASME B16.15; ASME B16.18; ASME B16.22; ASME B16.24; ASME B16.50; ASME B1.20.1
• Intended Use: For above-ground potable water supply systems
