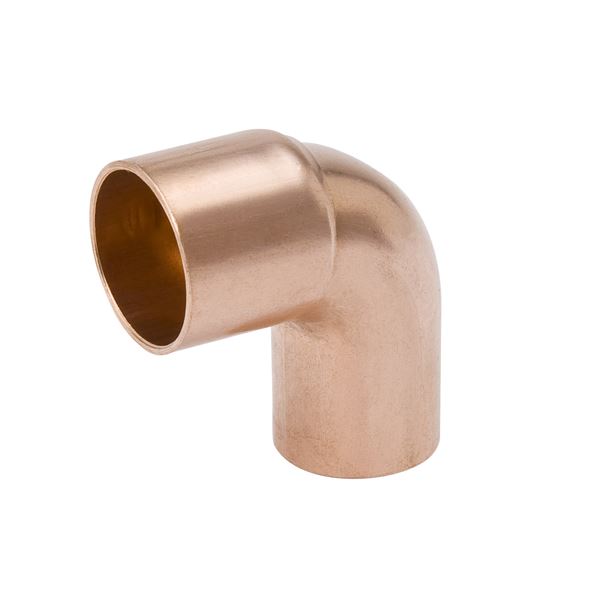

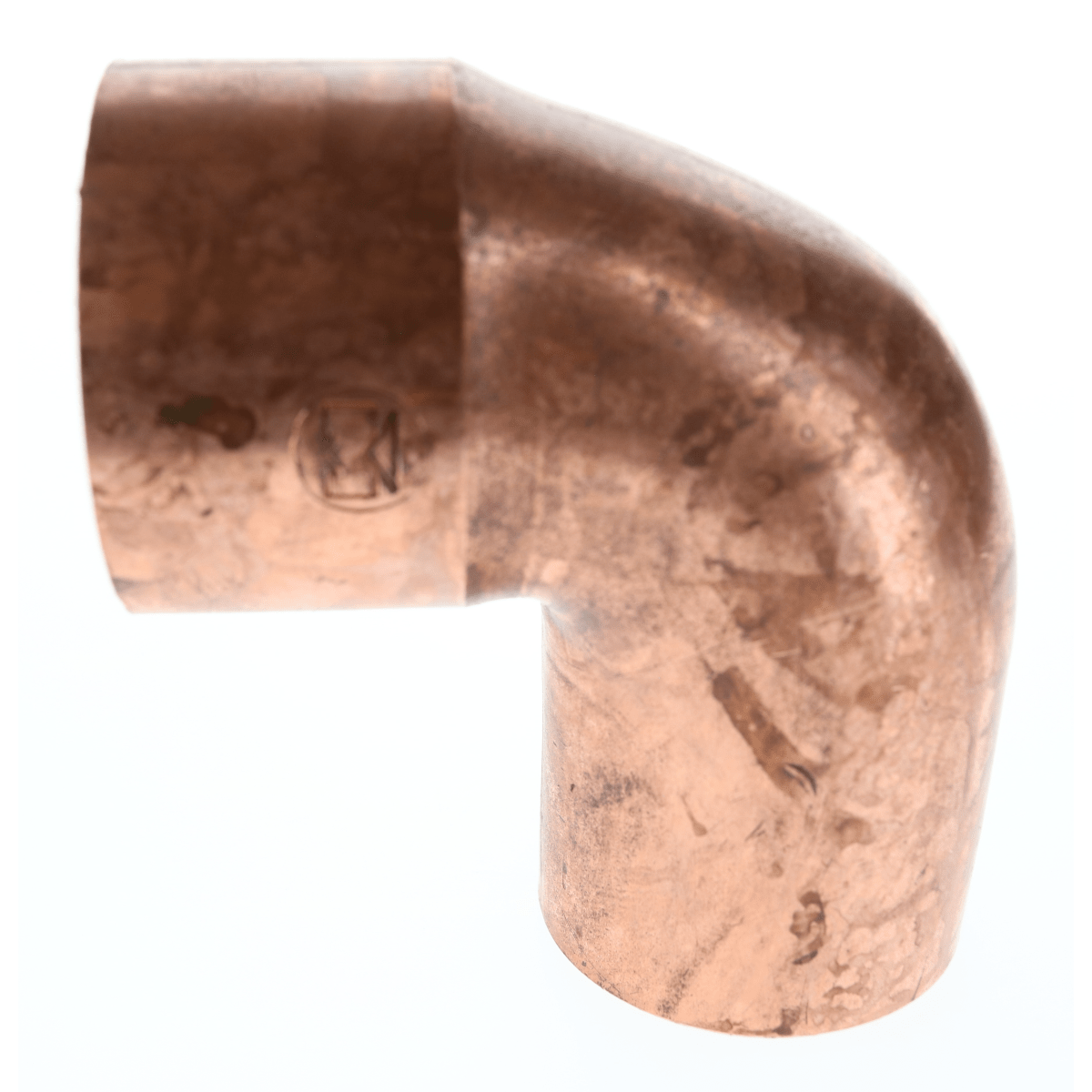

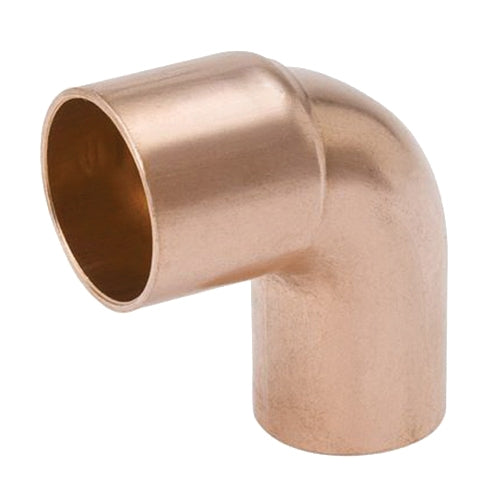

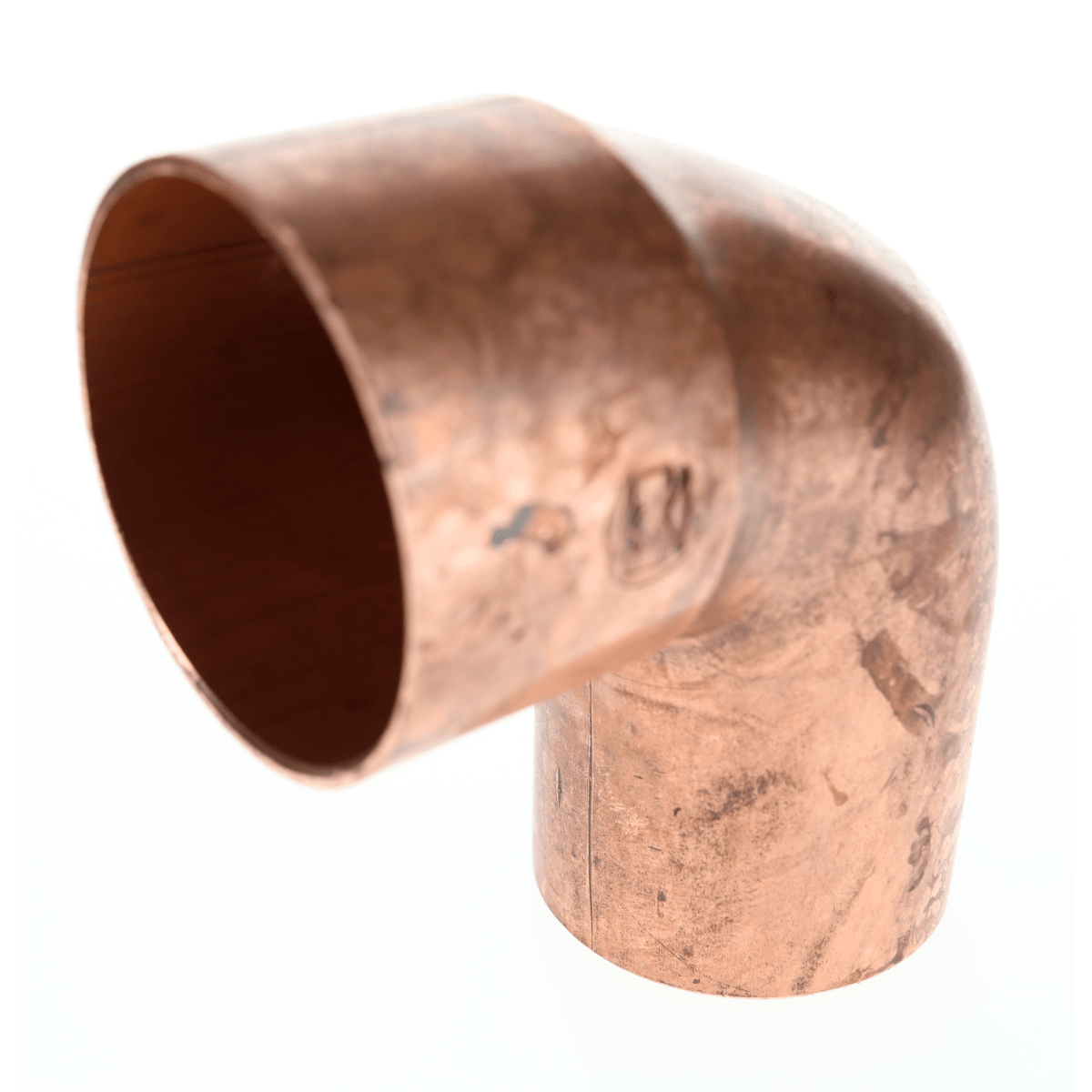

Mueller Streamline W 02387 Copper Sweat 90 Degree Street Elbow (2-1/2 inches)

Product Description

Mueller Streamline W 02387 is a 2-1/2 inch copper sweat 90-degree short-radius street elbow with a fitting (FTG) male solder end and a copper cup (C) female solder end. It provides a compact 90° change of direction for solder-joint connections in above-ground potable water and pressurized supply systems. Constructed of wrot copper, the fitting meets NSF 61G and applicable ASME standards for solder-joint fittings.

• 2-1/2 in short-radius street elbow, FTG (male solder fitting) x C (female solder cup) connection
• Constructed of wrot copper; conforms to NSF 61G and ASME B16.15, B16.18, B16.22, B16.24, B16.50, B1.20.1
• Overall length 4.65 in; weight 1.23 lb; intended for above-ground potable and pressurized supply systems

Product Highlights

Short-radius 90° copper sweat street elbow, FTG x C solder-joint connections, NSF 61G and ASME compliant

Product Information

Standard Information

• Brand: MUELLER STREAMLINE
• Manufacturer Part Number: W 02387

Technical Specifications

• MPN: W 02387
• Brand: Mueller Streamline
• Manufacturer: Mueller Industries
• Model: WE-503
• Part Number: COPF-250-ST90-C
• Item Name: Street Elbow
• Type: Short Radius 90 Degree Street Elbow
• Angle: 90 deg
• Connection Size: 2-1/2 in
• Connection Type: Ftg x C (male solder fitting x female solder cup)
• End 1 Type: FTG - Fitting (Male Solder)
• End 2 Type: C - Cup (Female Solder)
• Material: Wrot copper
• Style: Short Radius
• Overall Length: 4.65 in
• Overall Height: 4.73 in
• Overall Width: 2.77 in
• Weight: 1.23 lb
• Standards/Certifications: NSF 61G; ASME B16.15; ASME B16.18; ASME B16.22; ASME B16.24; ASME B16.50; ASME B1.20.1
• Applications: Above-ground potable water and pressurized supply systems
• UOM: EA
• Product SKU: COPF-250-ST90-C
• UPC: 685768209010
